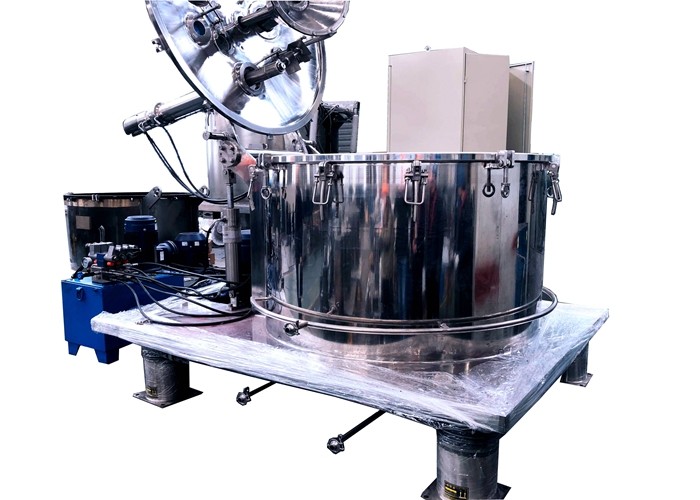

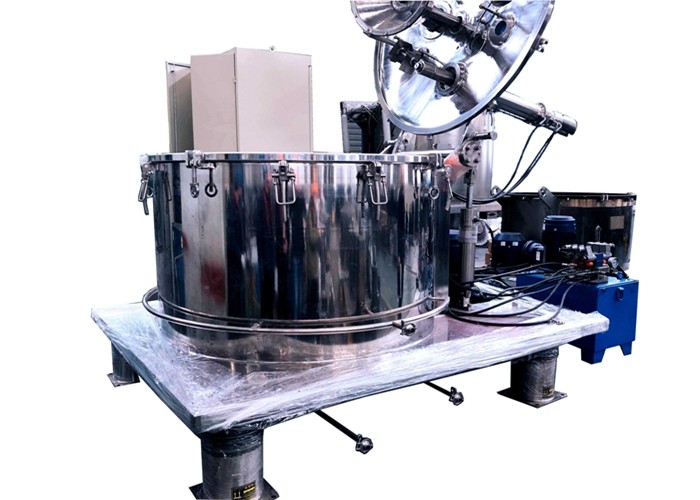

PPSBDL Bottom Discharge Vertical Basket Centrifuge

PPSBDL Bottom Discharge Vertical Basket Centrifuge

  • High Light

    SS316 vertical basket centrifuge

    ,

    PPSBDL vertical basket centrifuge

    ,

    GMP bottom discharge centrifuge

  • Product Name
    Bag Pulling Scraper Bottom Discharge Centrifuge
  • MOC
    SS304/SS316/DSS Etc.
  • Grade
    GMP
  • Application
    Industrial/chemical
  • Operation
    Continuous Automatic
  • Working Type
    Constinuous
  • Certification
    ISO/CE Etc.
  • Equipped
    Inverter
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO,CE
  • Model Number
    PPSBDL
  • Minimum Order Quantity
    1 set
  • Price
    USD30000-80000/SET FOB SHANGHAI
  • Packaging Details
    Standard export package,
  • Delivery Time
    60-90 days after down payment
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    300 sets/month

PPSBDL Bottom Discharge Vertical Basket Centrifuge

PPSBDL automatic bag pulling scraper bottom discharge centrifuge

Brief introduction

Applied for fine and medium grain solid particle suspension separation, the solid particle could be granule, crystal or fiber type. Especially for the separation which the material has high viscosity, fine grain, poisonous and inflammable. Widely used in the area of chemical, pharmaceutical, food, light industry, environment protection etc.



Technical Parameter



Item/Model



PPSBDL100 PPSBDL210 PPSBDL400/520 PPSBDL534 PPSBDL672 PPSBDL1000/870 PPSBDL1125 PPSBDL1200
Basket diameter(mm) 800 1000 1250 1350 1400 1600 1680 1800
Basket height(mm) 400 500 500/630 630 700 800/720 740 800
Basket Volume(L) 80 165 310/400 445 560 800/720 900 1000
Loading capacity(Kg) 100 210 400/520 534 672 1000/870 1125 1200



Product feature
1. This machine adopts closed structure,to achieve the purpose of sealing an explosion-proof,suitable for the application in poisonous,inflammable,explosive places.
2. The centrifuge is PLC controlled,and with the variable-frequency speed regulator,the braking resistance and the hydraulic/pneumatic unit,the centrifuge can be operated automatically or by manual.

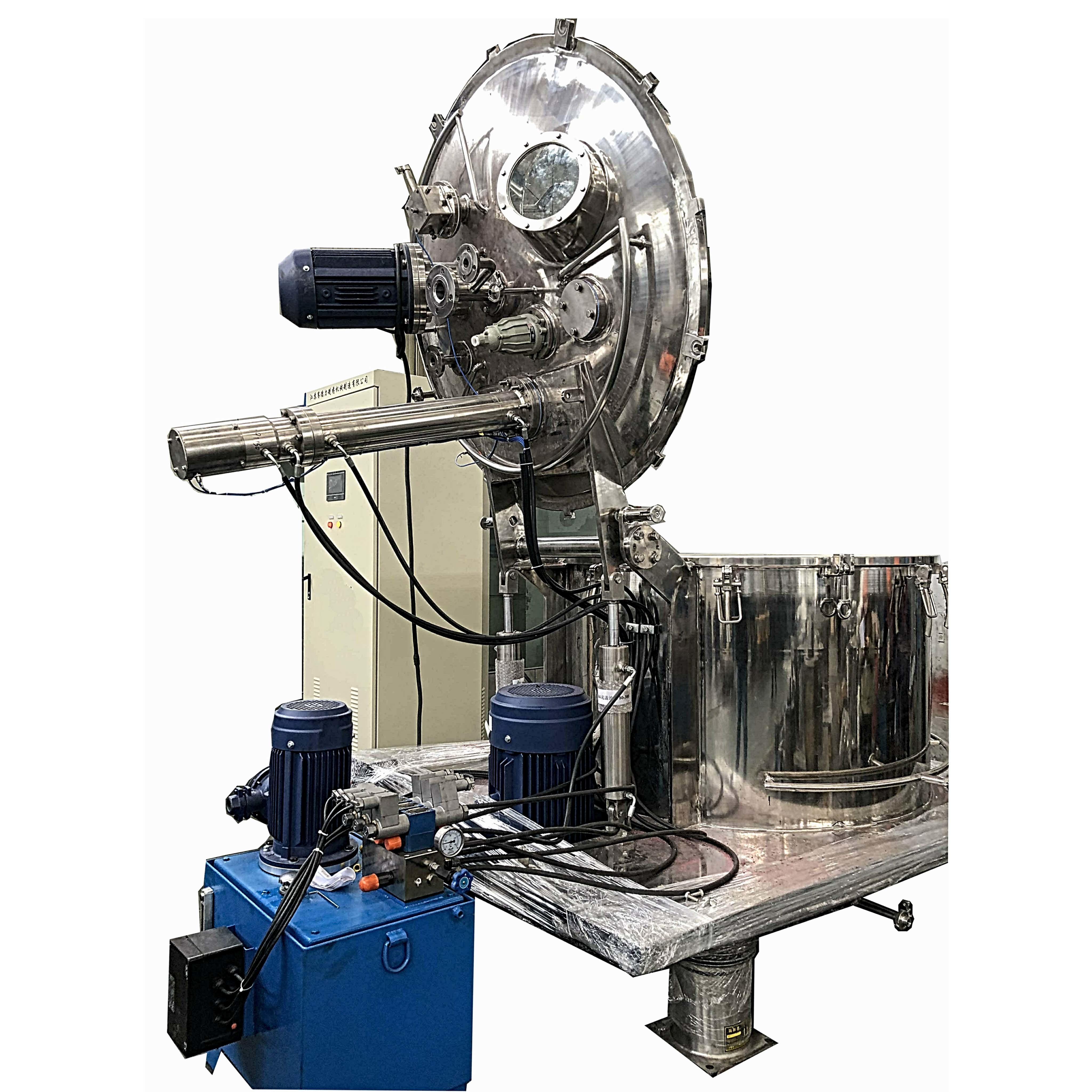

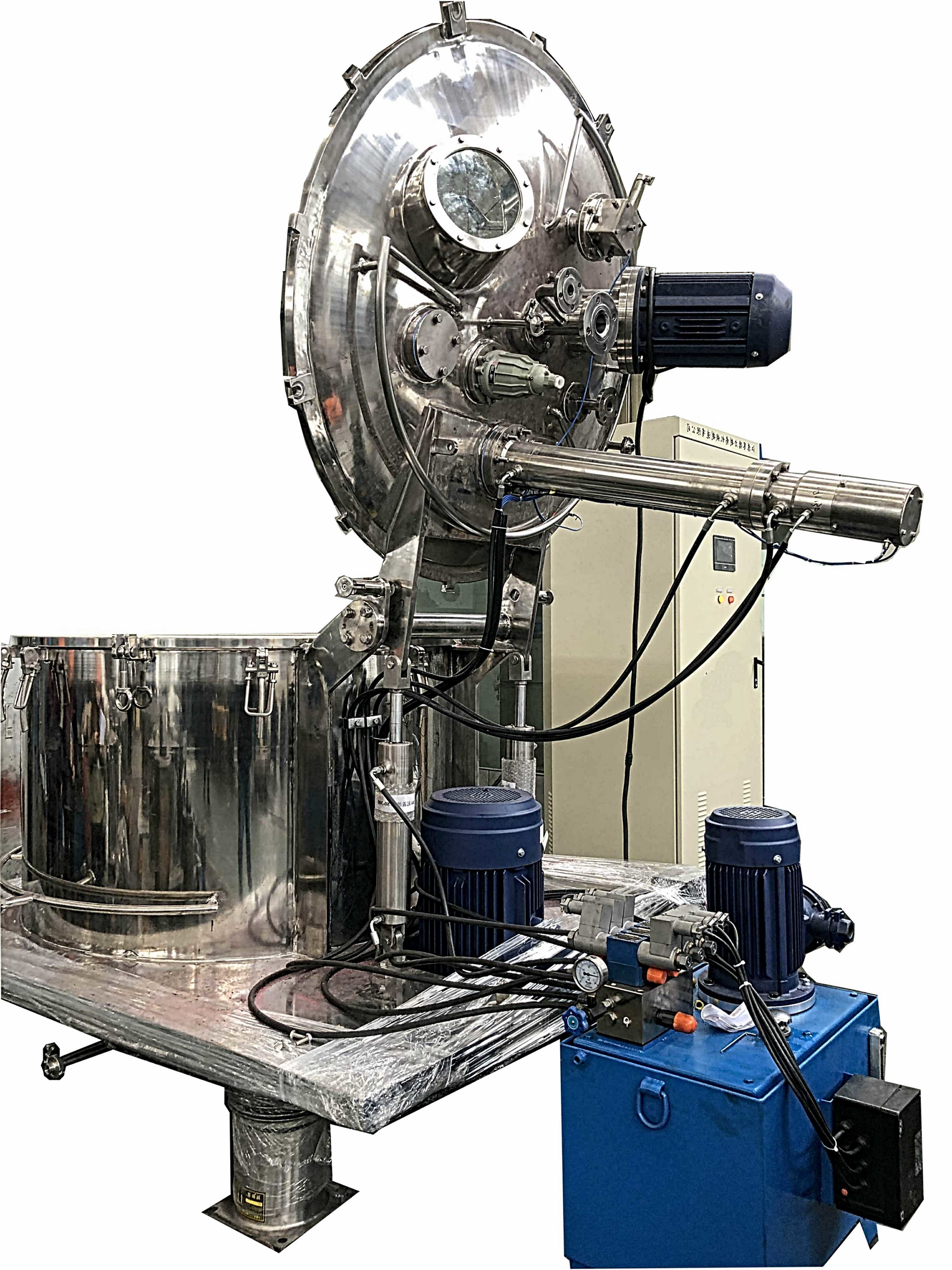

3. The housing and the flat plate is welded together,the clamshell and the housing is connected with the flange&the quick open structure,and the clamshell can be opened by the hydraulic cylinder.
4. There are many protective functions,and processes of start,feeding,de-watering,washing and discharging are all automatic.The centrifuge can be throughly cleaned,it is safe and reliable.which meets the GMP standard.
5. The scraping system is a stainless steel sealed hydraulic cylinder designed by our company,which can contact the material directly.And the drum,housing and fasteners are stainless steel,optional 316 stainless steel.



Working principle

During the process of discharging,the scraper acts,under the impact of it most products are discharged through the blanking hole on the bottom of drum to the outside.The remnant product layer will be removed because of oscillation effect by the influence of automatic shaking-bag mechanism inside the drum.



PPSBDL Bottom Discharge Vertical Basket Centrifuge 0
