GMP Pharma Peeler Centrifuge Wall Through Type

1 set
USD60000-100000/set FOB Shanghai
GMP Pharma Peeler Centrifuge Wall Through Type
Features Gallery Product Description Request A Quote
Name: Pharmaceutical Peeler Centrifugal Equipment
Grade: GMP
Speed: Adjustable
MOC: SS304,316 As Option
Operation: Continuous Automatic
Collocation1: Hydraulic System,Level Detector
Collocation 2: Level Detector
Equipped: PLC System, Inverter
Separation: Solid Liquid Separation
Certification: ISO,CE
High Light:

GMP pharma peeler centrifuge


Horizontal pharma peeler centrifuge


SS304 peeler type centrifuge

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO,CE
Model Number: PPCC
Payment & Shipping Terms
Packaging Details: Standard export package,
Delivery Time: 60-75 days after down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/month
Product Description

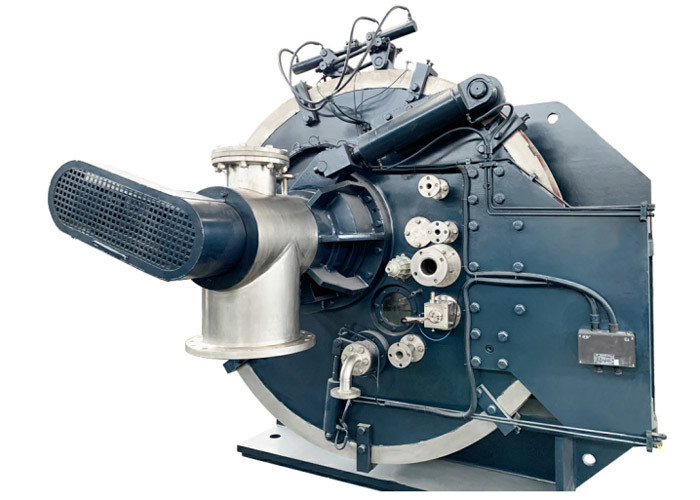

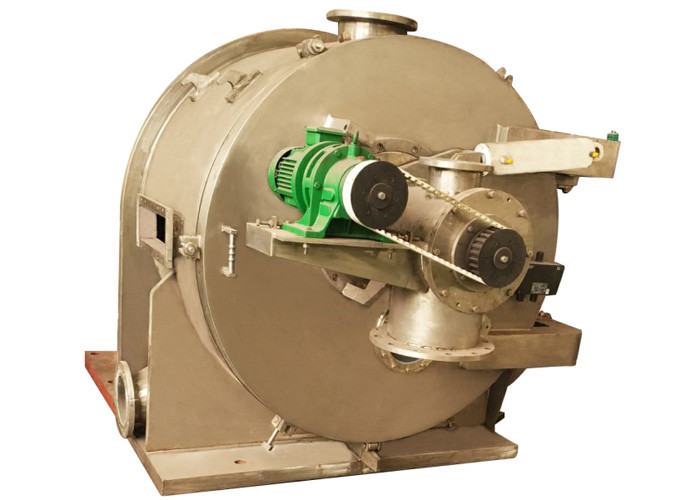

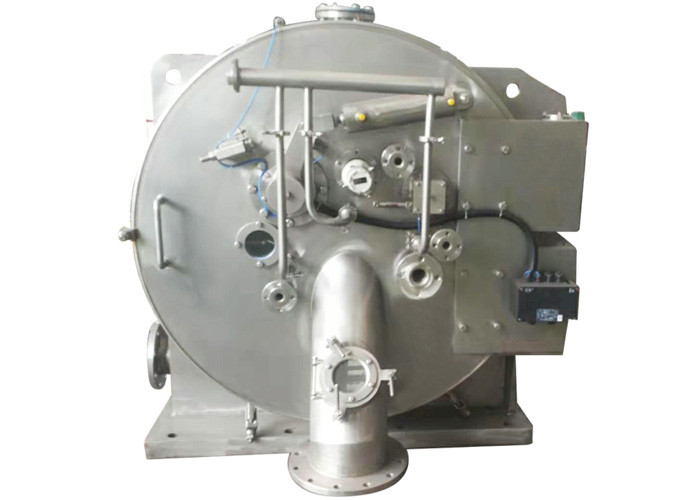

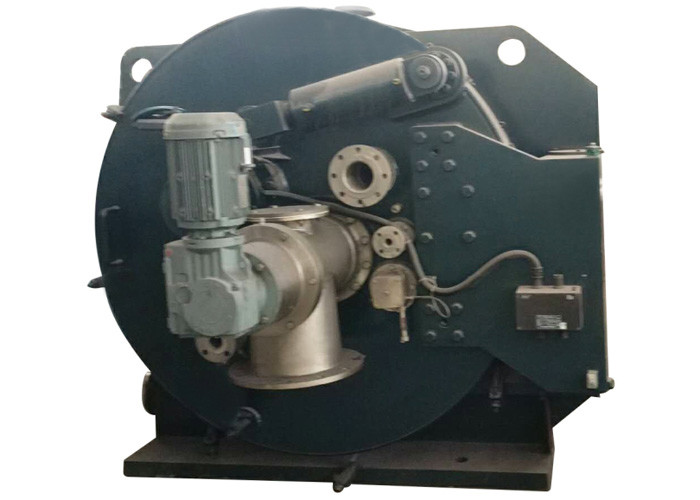

                                       GMP Standard pharmaceutical Peeler Centrifugal Equipment Wall Through Type

Brief introduction

PPCC series horizontal wall-through full-automatic scraper discharge centrifuge is a continuous operation, gap operation filter centrifuge. The structure and system design fully consider the requirements of cGMP, TGA, and are suitable for clean requirements of pharmaceuticals, food, etc. High occasions, and can meet different explosion-proof requirements.

The PPCC type centrifuge is a fully open outer casing and wall-mounted installation type to ensure complete isolation of the work area and the power area to avoid pollution to the product. An independent hydraulic and lubrication system is equipped with a nitrogen protection system and a CIP online cleaning system. Using PLC program control, frequency conversion speed regulation, energy consumption braking system. The control method adopts full automatic control (can also be manually operated). The feeding, separation, washing, dehydration, discharge and filter cloth regeneration, online cleaning, nitrogen protection and other processes during the operation of the centrifuge are set in advance according to customer requirements The program runs.


Properties and Uses

PPCC automatic centrifuge is a solid-liquid separation equipment which adopts continuous operation and intermittent discharging.

The machine is controlled by PLC.It regulates speed by frequency convertor;braking system adopts dynamic braking and regenerative braking.Through such procedures as product level detection,speed inspection process is automatic circulative work(including feeding,dehydration,washing,discharging and etc.)Also manual operation mode is available which can be changed over from full-automation mode by customer’s will.

PPCC automatic centrifuge adopts wall penetration installation,its power area and processing area can be separated.It can be used in pharmaceutical industry which has high requirements.The whole housing bucket can be open for inspection and cleaning.


Technical parameters


Drum diameter


Drum volume (L) Loading capacity (kg)
PPCC-53 600 41 53
PPCC-130 800 100 130
PPCC-230 1000 180 230
PPCC-270 1050 210 270
PPCC-430 1250 335 430
PPCC-585 1350 450 585
PPCC-900 1600 700 900

GMP Pharma Peeler Centrifuge Wall Through Type 0GMP Pharma Peeler Centrifuge Wall Through Type 1
1.It is fully conformed to GMP, CGMP, and meet the requirements of sterile raw medicine production.
2.With absolute isolation between power area and process area. It is suitable for occasion when customer requires high quality cleaning to avoid the contamination to product.
3.The out shell bucket can be opened, so the whole internal parts could be observed and easy for touch wiping and cleaning.
4.Perfect CIP system can be carried out to wash the internal parts of centrifuge to avoid cross contamination which are not easy to clean.
5.Unique pneumatic counter-pulse device is equipped, which can remove remnant filter cake as much as possible.
6.Totally-enclosed structure equipped with inert gas protection is adopted to be used in ex-proof I section.
7.The automatic residual cakes removing device is optional (have owned the national patent).
GMP Pharma Peeler Centrifuge Wall Through Type 2
Flow chart

GMP Pharma Peeler Centrifuge Wall Through Type 3
