Large Capacity Sea Salt Centrifuge Machine 25TPH

Large Capacity Sea Salt Centrifuge Machine 25TPH

  • High Light

    salt centrifuge machine 25tph

    ,

    Sea salt centrifuge machine

    ,

    30kw continuous pusher centrifuge

  • Product Name
    Double-stage Pusher Centrifuge
  • Humidity In The Cake
    Less Than 4%
  • Control Panel
    With
  • Separation Phase
    Two Phase, Solid-liquid
  • Application
    Sea Salt, Mineral Salt And Similar
  • Equipped
    PLC System, Inverter
  • Pump Motor
    5.5-45KW
  • Temperature Allowed
    Below 105degree
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO,CE
  • Model Number
    HR
  • Minimum Order Quantity
    1 set
  • Price
    USD25000-90000/SET FOB SHANGHAI
  • Packaging Details
    Standard export package,
  • Delivery Time
    60-90 days after down payment
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    300 sets/month

Large Capacity Sea Salt Centrifuge Machine 25TPH

                                   Large Capacity Sea Salt Separation Processing Continuous Double-stage Pusher Centrifuge

Specification



Item



HR400-N HR500-N HR630-N
Inner/Outside basket diameter(mm) 337/400 410/500 560/630

Length of filtering(mm)

(Inner/Outside basket)

160/160 180/180 240/240
Inner/Outside basket Speed(r/min) 1500-2200 1200-2000 1000-1800
Separating factor 503-1083 402-1118 352-1140
Length stroke(mm) 40 50 50
Frequency of stroke(time/min) 30-80 50-70 30-80
Main motor power(Kw) 11 30-45 37-55
Oil pump motor power(Kw) 5.5 22 30
Production capacity(t/h) 1-8 5-15 8-25



Brief introduction

The main motor drives the inner and outsider baskets to rotate at the full speed, material is fed into through a feed pipe. Under the centrifugal force, the liquid discharged out of the basket through filter screen and the holes of the basket, and then out of the machine through the tube for discharging liquid, while the solid deposits in the basket as a ring layer of cake. As a result, pusher plate pushes the cake layer in the inner basket to move out of it and then into the outside basket for further separation, a ring layer of cake being formed, while the outside section of the inner basket pushes the cake layer in the outside basket to move continuously out of the outside basket and then discharge it through the slot for scraper.

HR Series are a kind of two stage horizontal pusher filtering centrifuge that can be continuously operated, They can perform feeding, separating, washing and discharging in sequence at their full-speed running. They have the advantages of continuous operation, stable performance, large capacity, ideal washing effect, low moisture content of cake and less solid content in the liquid. They are suitable for separating the suspension with solid phase particle size of more than 0.05mm and with the concentration of over 35%, and suitable for chemical industry, fertilizer, manufacturing salt and alkali, especially for the solid-liquid separation of sodium chloride, ammonium chloride, ammonium bicarbonate, sodium sulfate and carbamide.

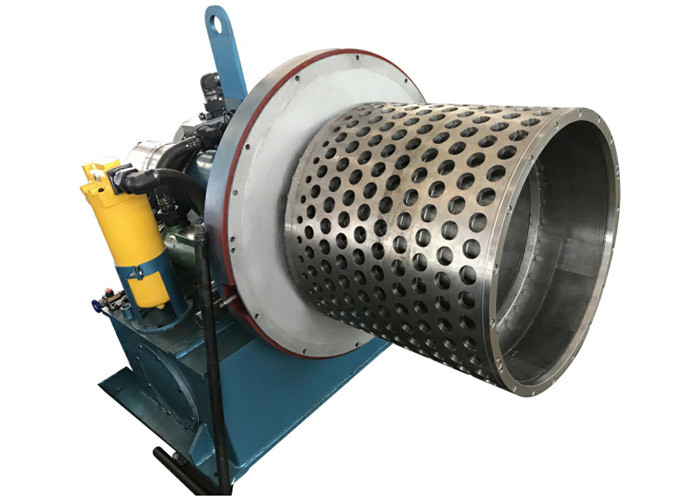

Large Capacity Sea Salt Centrifuge Machine 25TPH 0

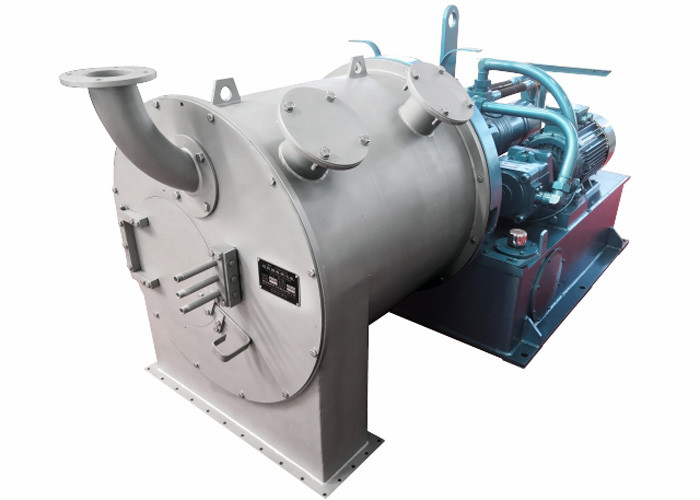

Large Capacity Sea Salt Centrifuge Machine 25TPH 1

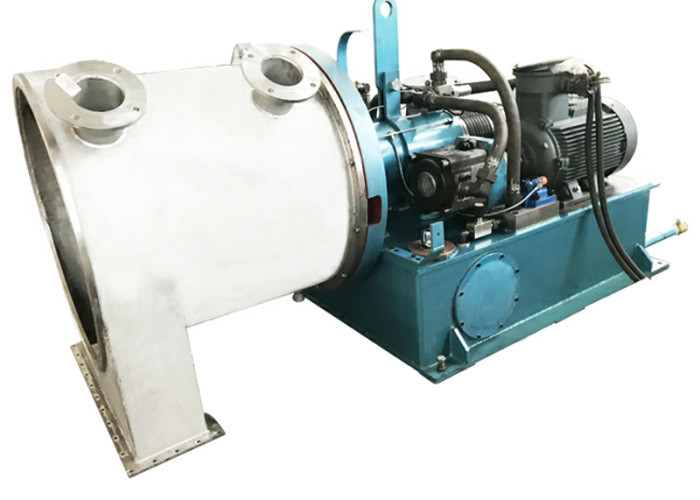

Large Capacity Sea Salt Centrifuge Machine 25TPH 2







Processing equipment

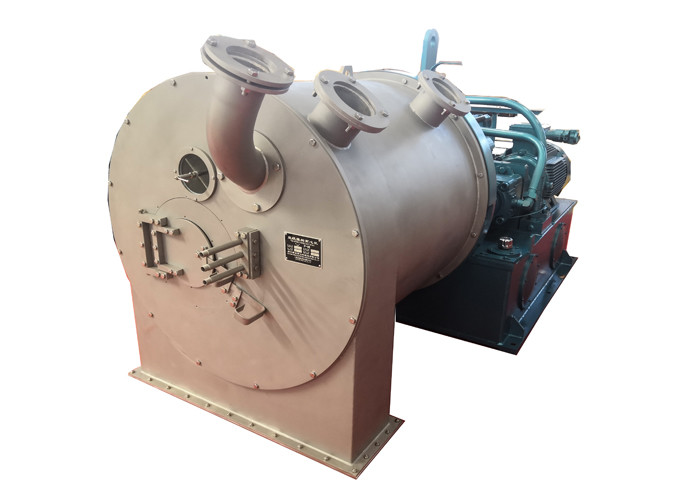

Large Capacity Sea Salt Centrifuge Machine 25TPH 3

Notes:

1. The technical parameters provided in the instructions of products are preferable.
2. The customer who asks about products please inform us of the characteristic parameter of material and operate condition.
3. The design and manufacturing of individuation are available:
Material: Common stainless steel, special stainless steel, copper alloy or titanium alloy can be used for the material of the parts suspension contacts.
Type of motor: Conventional type of explosion-proof type single-speed motor.

Designs and manufacturing are supplied according to the standard of GMP.

Other technical demands may be discussed.
