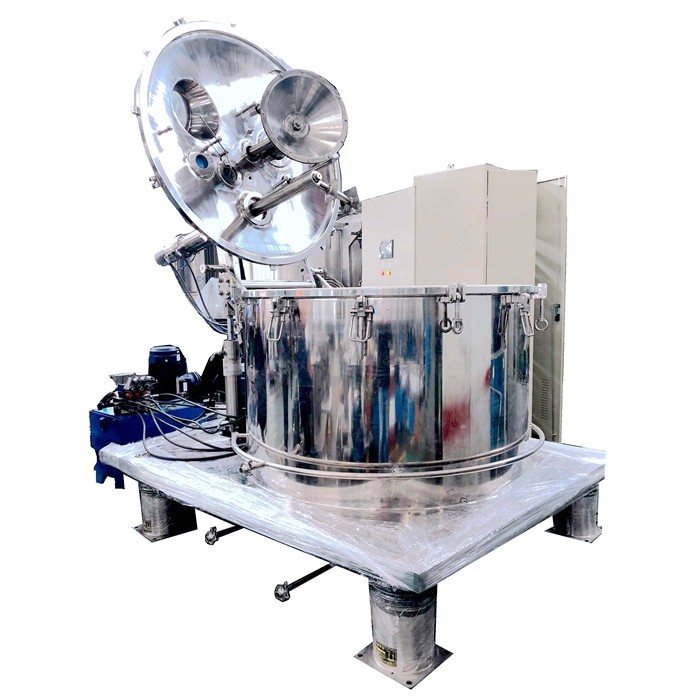

Crystallization Industry Vertical Peeler Centrifuge

Crystallization Industry Vertical Peeler Centrifuge

  • High Light

    ISO Vertical Peeler Centrifuge

    ,

    650kg Vertical Peeler Centrifuge

    ,

    Hanpu bottom discharge centrifuge

  • Product Name
    Scraper Bottom Discharge Centrifuge
  • Operation
    Continuous
  • Condition
    New
  • Key Selling Points
    Esay To Operate
  • Machine Type
    Solid-liquid Separation
  • Application
    Starch, Calcium Carbonate, And Others
  • Certification
    ISO
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO,CE
  • Model Number
    PPSBD
  • Minimum Order Quantity
    1 set
  • Price
    USD30000-80000/SET FOB SHANGHAI
  • Packaging Details
    Standard export package,
  • Delivery Time
    60-90 days after down payment
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    300 sets/month

Crystallization Industry Vertical Peeler Centrifuge

Industrial scraper bottom discharge crystal filter centrifuge for crystallization industry

Brief introduction

Frequency control by the main motor, a smooth start, through the narrow V belt antistatic flame retardant will force transmission to the bowl, so that high-speed rotating around its own axis, forming a centrifugal force field, the material from the upper part of the feeding tube into the bag with the basket from the will power to force material trapped in the bag, the shutdown, open the case and cover, hanging out outside the machine to discharge discharge locations; with washing pipe materials can be washed.



Main application

Start with frequency converter for stepless speed regulation, the time of rotating can be set and controled with a PLC (programmable logic controller) to start the steady expansion of the scope that can be used, with the main control cabinet and field proof auxiliary control panel can operate both to improve safety sex, no basis for the installation, eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of isolating types of damping system that allows devices to be completely absorbing vibrations generated by change. On the basis of the ground and the surrounding non-interference.

PPSBD series centrifuges have a prefect automatic performance and a large processing capacity.In accordance with users' demand,procedures such as feeding, separating,washing,dehydrating and discharging can all be automatically finished followed by remote control.It's suitable for solid liquid separation of fibroid products as well as suspension which contains fine grains and medium size grains solid. For example:

1) Chemical Industry:gypsum,ammonium sulphide,bluestone,potassium chloride,borax, dyestuff,resin,pesticide.
2) Pharmaceutical Industry:salt,monosodium glutamate,food additive,starch,sugar,flavoring, antibiotic,vitamin.
3) Food Industry:sodium glutamate.
4) Mine and Metallurgy Industry:copper,zinc,minerals,and metal refining.
5) Environmental Protection Industry:pure water sludge and sewage sludge



Technical parameters

Model/Item Basket diameter(mm) Basket Height(mm) Basket volume(L) Loading Capacity(kg)
PPSBD60S 600 350 45 60
PPSBD135S 800 400 100 135
PPSBD180S 1000 420 140 180
PPSBD250S 1000 580 190 250
PPSBD320S 1200 500 260 320
PPSBD400/520S 1250 500/630 310/400 400/520
PPSBD650S 1250 800 505 650





Structure
It adopts platform structure, with out shell welded with bottom plate. Shell cover is fixed to shell body with flange. Hydraulic pressure is applied to open the cover. Shell cover is equipped with feeding pipe, washing pipe sight glass, viewing-light, scarper device etc.. Standard flanges are applied for the external pipe joints.

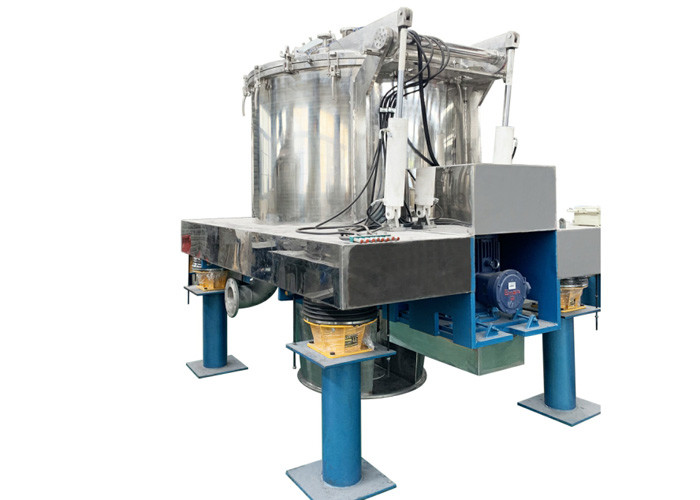

Crystallization Industry Vertical Peeler Centrifuge 0

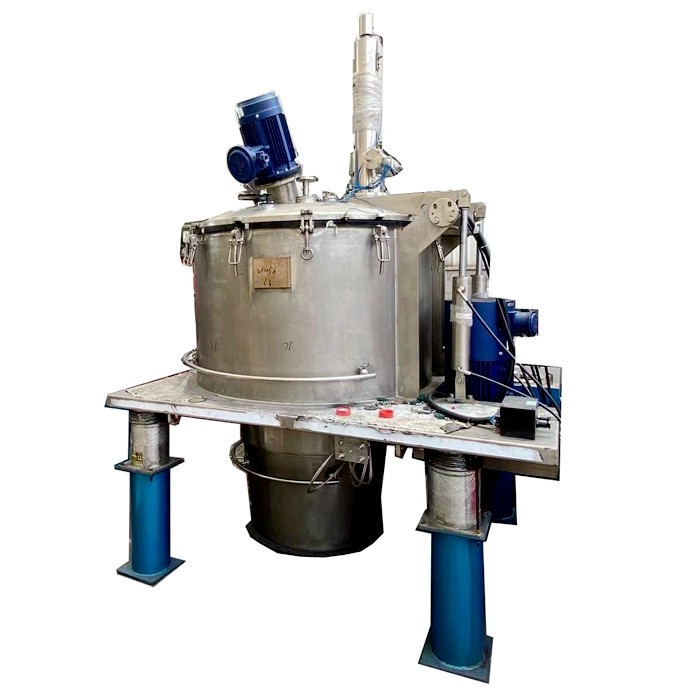

Crystallization Industry Vertical Peeler Centrifuge 1

Processing equipment

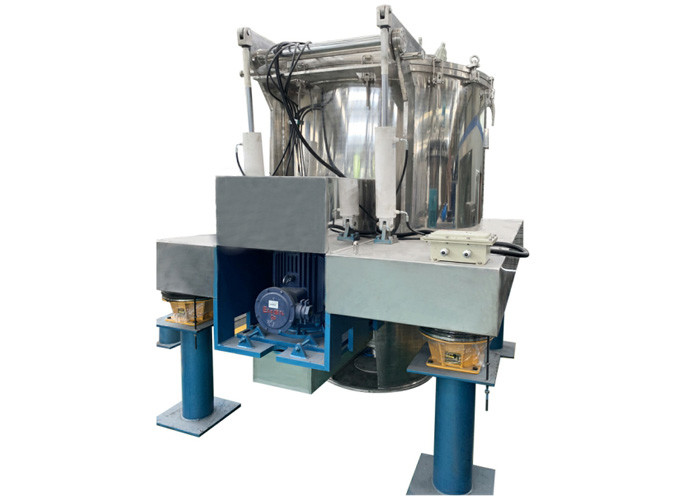

Crystallization Industry Vertical Peeler Centrifuge 2

Our services

1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.



Tips:Scraper Bottom Discharge Centrifuge,discharging centrifuge,flat bottom centrifuge
