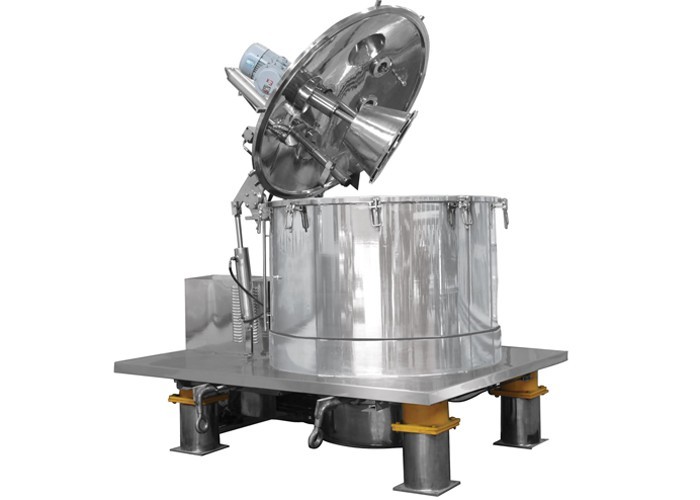

Model PPSBD Bottom Scraper Discharge Centrifuge Milk Separator
Features
1) Suitable for separating suspensions with solid grains larger than 0.01mm
2) Widely used in chemical, pharmaceutical, food, light industry and other trades
3) Most commonly used for gypsum, ferric sulfate, nickel sulphate, copper sulphate,potassium chloride, acetate, borax, soda, rubber additives, dye, plastic raw material, soap, grease, resin, salt, gourmet powder, food additives, vitamins, herbicides, insecticides and dewatering of copper, zinc, aluminum and other mineral powders.
Working principle
1) PPSBD series centrifugal machine is a kind of filtering equipment adopting scraper bottom-unloading and interval operation
2) The material enters the rotary drum from the upper
3) Under the function of centrifugal force, the liquid passes through the filtering medium and discharges out of the machine and the solid is left in the rotary drum
4) When the rotary speed reduces, the scraper scrapes the solid material and the material is discharged from the bottom of the machine
5) Advantages: steady operation, convenient operation
6) Can set operation program according to demands, auto finishes feeding material,separating, dewatering, unloading and other processes
7) Can carry out long-distance operation
8) High automation level, large handing capacity and good separation result
9) No base installation
Technical parameters
| Model/Item | Basket diameter(mm) | Basket Height(mm) | Basket volume(L) | Loading Capacity(kg) | Max. Speed(r/min) | Maximum separating factor |
Motor power (Kw) |
Size (including shock absorb) (mm) |
| PPSBD60S | 600 | 350 | 45 | 60 | 1800 | 1064 | 5.5 | 1700*1200*1700 |
| PPSBD135S | 800 | 400 | 100 | 135 | 1500 | 1007 | 7.5 | 1700*1400*1960 |
| PPSBD180S | 1000 | 420 | 140 | 180 | 1080 | 652 | 15 | 1968*1500*2060 |
| PPSBD250S | 1000 | 580 | 190 | 250 | 1200 | 805 | 15 | 1968*1200*2400 |
| PPSBD320S | 1200 | 500 | 260 | 320 | 970 | 631 | 18.5 | 2280*1800*2350 |
| PPSBD400/520S | 1250 | 500/630 | 310/400 | 400/520 | 1000 | 698 | 18.5 | 2280*1800*2500 |
Structure
It adopts platform structure, with out shell welded with bottom plate. Shell cover is fixed to shell body with flange. Hydraulic pressure is applied to open the cover. Shell cover is equipped with feeding pipe, washing pipe sight glass, viewing-light, scarper device etc.. Standard flanges are applied for the external pipe joints.
Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.
