Industrial Scale Salt Production Line Salt Refining Machine

1 set
MOQ
500,000-2,000,000USD
Price
Industrial Scale Salt Production Line Salt Refining Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Automatic Salt Refining Equipment
Product Keywords: Table Salt Making Machine
Feature: Good Price
Material: Stainless Steel 304 316L
Core Component: Crushing Washing Drying Machine
Voltage: 380V 480V Or Customized
Application: Mineral Salt, Sea Salt, Lake Salt, Etc
Advantage: Industrial Scale
Process Capability: 3T/H-30T/H
Warranty: 12 Months
High Light:

table salt refining machine

,

Industrial scale salt refining machine

,

316L Salt Production Line

Basic Infomation
Place of Origin: Jiangsu,China
Brand Name: HANPU
Certification: CE,ISO9001
Model Number: HP-SL
Payment & Shipping Terms
Packaging Details: bulk with strong strap and wrapped film
Delivery Time: 90 days
Payment Terms: T/T, D/P, D/A, L/C
Supply Ability: 1 set / 3 months
Product Description

Automatic good price of salt refining equipment and table salt making machine

Sea salt and lake salt refinery equipment line includes: stainless steel elevator, mixer, conveyor, crusher, salt washing machine, iodize machine, centrifuge and drying machine, dust remover, packing machine and etc.

For the capacity of the production line, we can produce based on customers' requirement. The capacity is 3-30ton/hour.



Process of the plant

Raw salt is sent to a feed hopper at appropriate capacity and then transferred to a conveyor band.

A magnet is used to remove trash metals from this conveyor.

Raw salt is washed in a special washing system.

Crude salt is ground in a wet grinding system with a saturated brine.

Salt slurry is sent to a tank and pumped to a washing tank with one of centrifugal, high-pressure pump, centrifugal pump, axial flow pumps or gear pump.

Slurry is removed from slurry in washing tank.

Saltwater overflowing from washing tank is recycled.

Salt slurry is sent to hydrocyclone to thicken it.

Salt is removed from water in large scale by centrifugation. Iodine dosing is made.

In the fluidized bed dryer, salt is completely dried.

Drying milling is done to thin clumping salts.

Salts are passed through a screening machine to be classified.

Then the tablet salt will be carried out, fine grade salt be packed in different packages.



Detailed Process Of Salt Refining

(A) Raw salt feeding (B) Salt washing & Milling (C) Dosing of additives & coating (D) Centrifuging (E) Drying (F) Sizing & Conditioning (G) Packing (H) Brine recycle



A)  Raw salt is fed to the raw salt hopper from the stockyard or directly unloaded from the dumper. Below this hopper there is a feeder arrangement. This feeder feeds material to a conveyor. This conveyor has magnetic separators at the feed and discharge points to remove iron pieces like nails, nuts and bolts and other magnetic debris. The conveyor discharges raw salt to the feed hopper of the wet mill.



B)  Wet mill grids and control the size of the product and also removes soluble entrapped in grained impurities present in the raw salt crystals. In this process raw salt is milled with brine to achieve the desired results. Salt slurry from the wet mill falls by gravity into a slurry tank below. In the slurry tank more brine is added to carry out primary elutriation. Overflow of the slurry tank is carried to the settling ponds. Salt slurry is pumped to the wash tank for main elutriation. The overflow brine from wash tank is taken into a clarifier for purification and to recycle it back into the system.



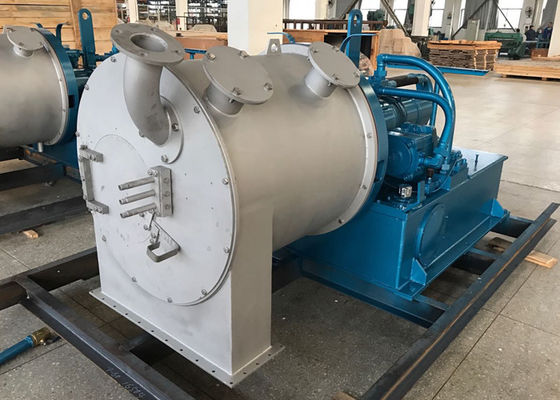

C)  Salt slurry from the wash tank is pumped to a thickener where the slurry is conditioned for centrifuge. This as a dual purpose tank that also carries our secondary elutriation as well as thickening of the salt slurry. This slurry is then fed to the centrifuge. Salt cake from the centrifuge is taken up by a screw feeder and the mother liquor is discharged to slurry tank below,



D)  The salt cake discharged into the screw feeder is dosed with iodine and other additive anti caking agent before it is carried to the fluid bed dryer.



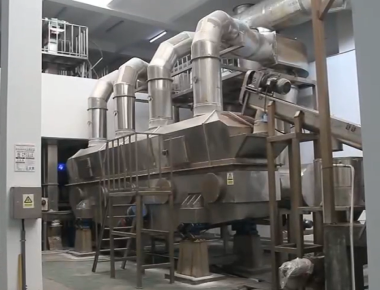

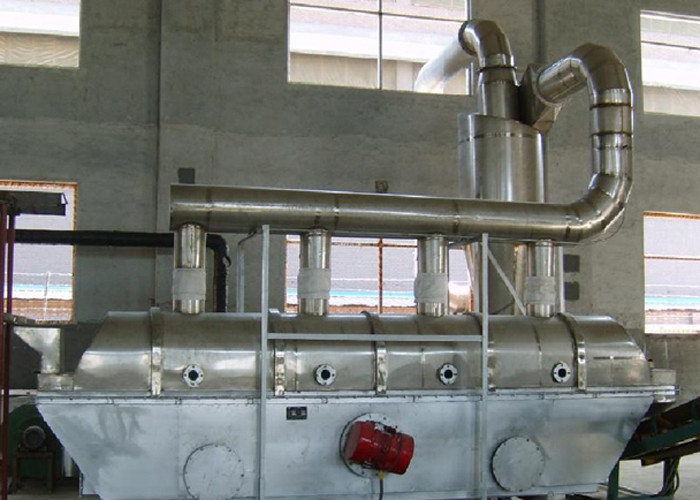

E)  The fluid bed dryer is an internationally accepted option for drying salt cake. It is an iIntegrated system involving two sections for heating and subsequent cooling the product. Hot air is blown with the help of fan into the salt bed to achieve the required dryness of final product. Ambient air is blown into the cooling section to cool the hot may be packed in sacs and sealed. Salt from the outlet of the dryer is carried up through a bucket elevator for sizing and conditioning.



F)   The dry salt from the bucket elevator is fed to a gyro screen. Oversize from the screen is sent to a dry mill (pin mill) for regrinding. The sized product is fed to the blender for conditioning to make it free flowing or iImparting properties and composition that may be required. Output from the dry mill is sent back to the screen to avoid any mixing of oversize with the final product.



G)  Final product from the blender is stored in a silo. These silos feed the packing machines to pack the final product to pack the production 1 Kg. to 50 Kg. bulk packing as may be required.



H)  Clear brine that overflows from the clarifier is taken to a brine tank. Sludge that settles in the clarifier is discharged iInto the settling tank. Brine from the brine tank is pumped into a brine header. This brine header distributes brine at predetermined rates to various tanks. Run-off brine from the settling pond is recovered and pumped by a transfer pump back into the process. Sludge that settles at the bottom of the pond is scrapped and disposed off to the salt pans or any other approved site.



Advantage of our equipment line:

The high quality refined salt product has high purity, shiny appearance, good free liquidity and stable iodine content.

Low loss, the loss of NaCl is under 10%.

Low energy consumption and investment.

Equipment has long service life, easy to operate and maintain.



The salt production line begins with raw salt, and consists of the following:

1. Salt feed hopper 10. Brine tank 19. Belt conveyor
2. Rationed screw conveyor 11. Thickener 20. Sewing sacks
3. Pikcing belt machine 12. Centrifuge 21. LCD electronic scale
4. De-ironing separator 13. Screw conveyor 22. Chain grate coal-fired hot blast stove

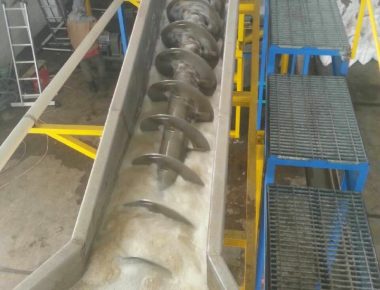

5. Screw washer 14. Iodine adding machine 23. Slag discharge machine

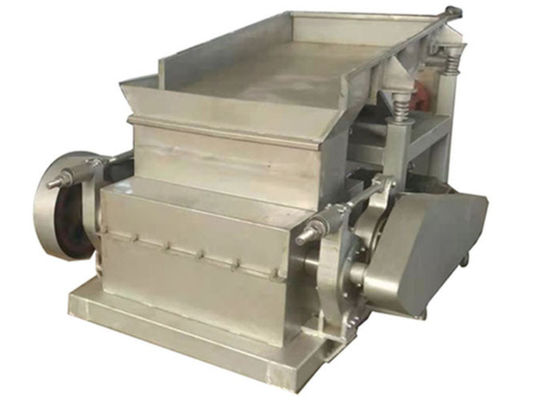

6. Roll crsher 15. Vibration fluidized bed dryer 24. Coal conveyor
7. Agitating salt wahser 16. Cyclone dust extractor 25. Electric control cabinet
8. Slurry pump 17. Spray washer 26. Packing machine
9. Agitating tank 18. Bucket elevator etc.



Process flow chart

Industrial Scale Salt Production Line Salt Refining Machine 0



Raw crude salt

Industrial Scale Salt Production Line Salt Refining Machine 1

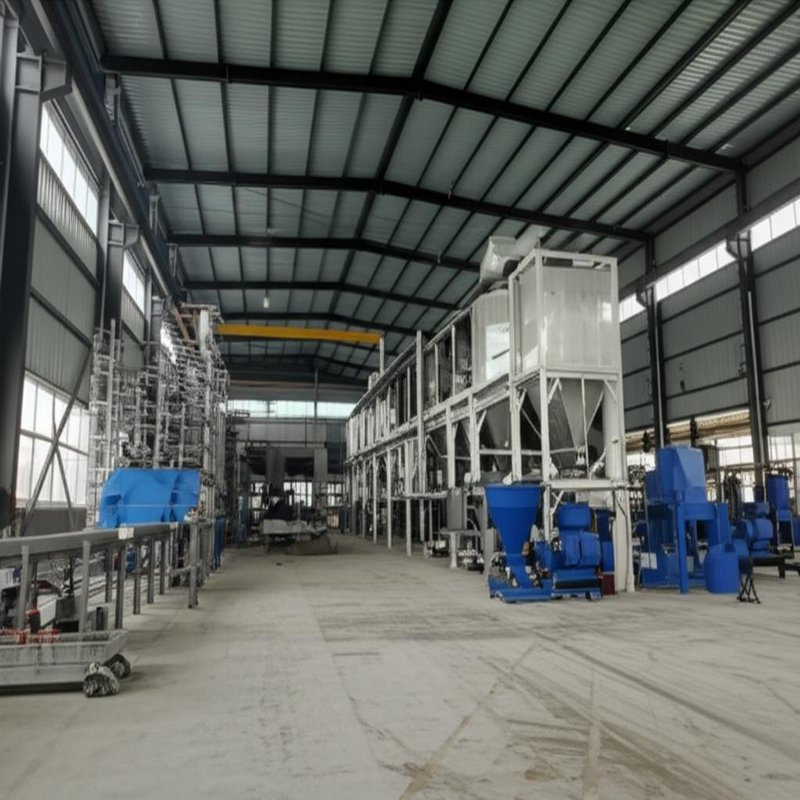

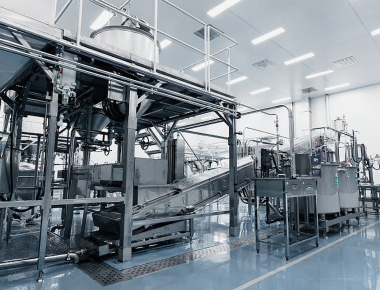

Production site

Industrial Scale Salt Production Line Salt Refining Machine 2

Industrial Scale Salt Production Line Salt Refining Machine 3
