Edible Iodized Table Salt Production Line/Industrial Salt Making Machine
High quality salt production line
Customized Salt processing line machinery
The four washing is as follows:

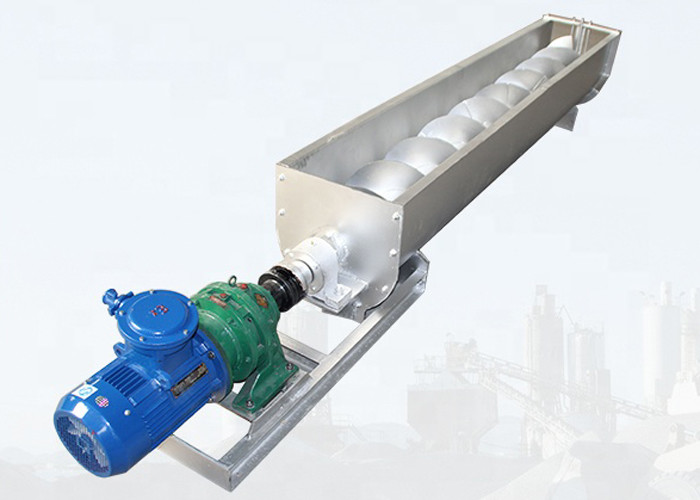

First Screw washing
Second screw washing
Stand-up stirring washing
Three-crushing is as follows:
The combination of wet crushing, dry crushing and different ways of washing has greatly improved the salt quality.
The above operation is subject to adaptation according to the users' different requirements due to the use of crude salt of different quality.
We has designed a unique washing system that is based in salt and brine countercurrent system in a custom designed screw. The washing process allows to identify soluble and insoluble impurities in raw salt using an advanced countercurrent brine system.
The washing and purification system is based in a mechanical principle of pure brine washing to increase purity of the salt crystals.
After the Washing process the salt goes into a centrifuge system with the latest centrifuge technology in order to further wash and purify the crystals while reducing humidity of the product in the process.
Salt centrifuges allow for precise liquid-solid separation process. A continuous separation process engineered to combine high availability with minimum maintenance.
we have developed our own Fluid Bed dryer technology, designed to provide continuous drying solutions for all types of salts (sea salt, rock salt, vacuum and/or lake salts). Manufactured in the best materials for resistance and avoiding corrosion.
Our drying system allows to dry and cool Salt using a combination of airspeed and mechanical motions to treat each particle efficiently and with minimum dust formation. By shacking the product up and down we achieve a uniform drying result with shorter time and lower temperature.

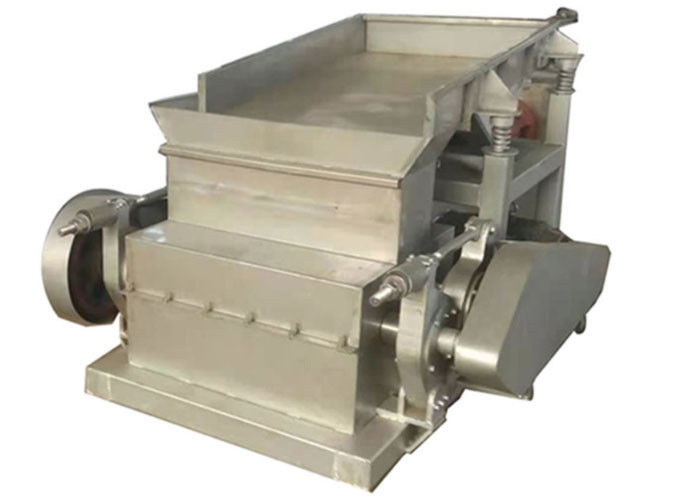

We has also engineered a crushing process to control the size of the Salt grain. With our horizontal roller crushers, the product goes in a vertical flow and the machine allows to control de crystal size. Our crushing and grinding machines are produced with high quality stainless steel and allow the operator to adjust the size of the crystal that will go out of the process.
we do offer a machinery range to add additives in Salt. It can be either Iodine, Fluor or anti-caking. The solution is a linear system that pulverizes the additive in the production a uniform way in order to obtain the Iodized Salt without any problem. Our process guarantees a perfect distribution of additives in the Salt crystals and meets the highest food and grocery standards required for food-grade distribution.
We also support through our equipment supply the global and national iodine programs, working with key public, private, scientific and civic stakeholders. We focus on universal salt iodization as the most cost-effective and sustainable solution for prevention of iodine deficiency disorders.

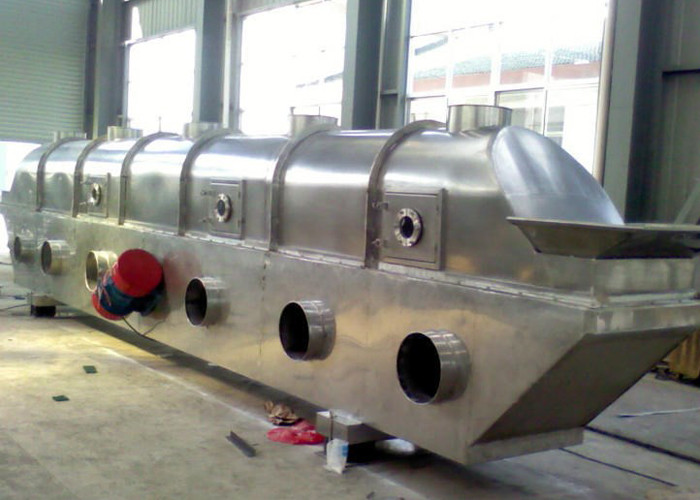

Main equipment-Vibrating Fluidized Bed Dryer Features
HP series vibration fluidized bed dryer is driven by the vibration force caused by vibration motor. The material in a given direction under the action of the force of leaping forward, at the same time a bed type cloth uniform wind hot air in a fluidized state of material, material particles in contact with the hot air fully, intense heat and mass transfer process, high thermal efficiency, cavity in the state of the negative pressure, moist air is being exhausted from induced draft fan, dry material is being exhausted from port layout, so as to achieve the ideal effect. This machine is widely used in salt industry of powdery and granular materials such as operation of drying, cooling and humidifying.
Vibrating Fluidized Bed Dryer Specification
Fluidized bed area
(m × m)
|Reference of water evaporation (kg/h)||
|HP - 3 × 4.5||0.3 × 4.5||40 - 70||1.5 × 2|
|HP - 4 × 4.5||0.4 × 4.5||65 - 100||2.2 × 2|
|HP - 6 × 4.5||0.6 × 4.5||80 - 130||2.2 × 2|
|HP - 6 × 6.0||0.6 × 6.0||120 - 180||3.0 × 2|
|HP - 6 × 7.5||0.6 × 7.5||150 - 220||3.7 × 2|
|HP - 9 × 6.0||0.9 × 6.0||160 - 280||3.7 × 2|
|HP - 9 × 7.5||0.9 × 7.5||180 - 300||3.7 × 2|
|HP - 12 × 7.5||1.2 × 7.5||300 - 400||5.5 × 2|
|HP - 15 × 7.5||1.5 × 7.5||350 - 580||7.5 × 2|

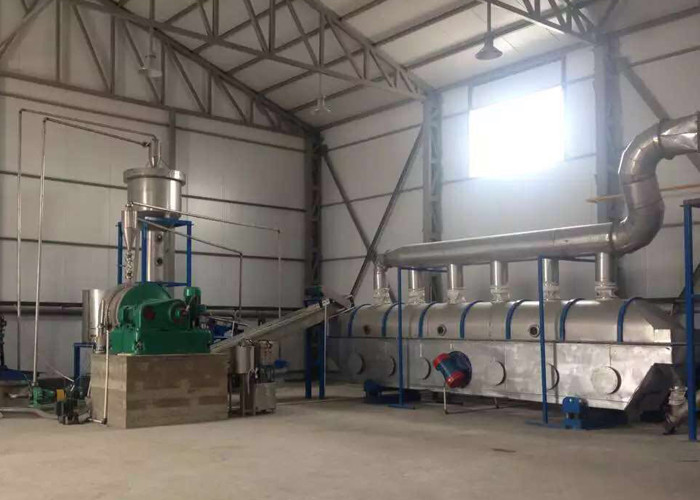

Client prodution site
