Refining Plant Salt Centrifuge Solid Liquid Separation PLC System
The HR Series Double Stage Centrifuge is a perforated basket centrifuge designed for continuous and effective solid-liquid separation in sea salt production lines and salt refining plants.
Technical Parameters
| Parameter |
Model 1 |
Model 2 |
Model 3 |
| Motor of oil pump (kw) |
5.5-7.5 |
22 |
13-30 |
| Main motor (kw) |
11-15 |
37-45 |
55 |
| Output (t/h) |
5-7 |
12 |
20 |
| Weight (kg) |
2600 |
4400 |
4860 |
| Operation temp. (°C) |
Below 105 |
| Sieve slot |
To be decided |
Operation Principle
The mixture is fed continuously through the feeding pipe and distributor into the first stage basket. Under centrifugal force, most mother-liquor passes through the sieves into the liquor collecting casing for discharge. The first stage basket rotates and reciprocates, pushing the product cake into the second stage basket where it receives additional centrifugal force to achieve desired humidity before continuous discharge.
Key Features
- Continuous operation with high efficiency
- Effective washing capability for high purity solids
- Separate discharge for washing agent and mother-liquor
- Quick skimming capability
- Full automatic operation with large capacity
- Premium SKF bearings
- Sulzer advanced technology
- Exceptional separation with moisture in cake less than 4%
Application
Specifically designed for sea salt and mineral salt dewatering in refining plants.

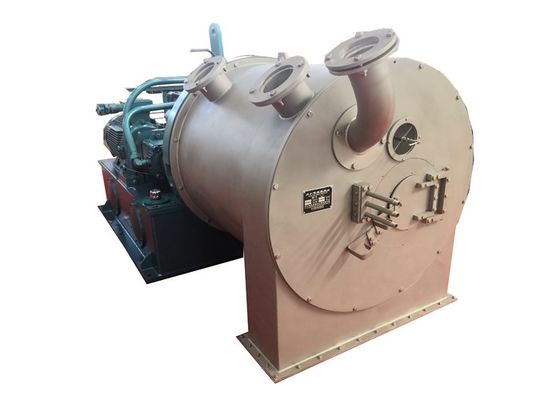

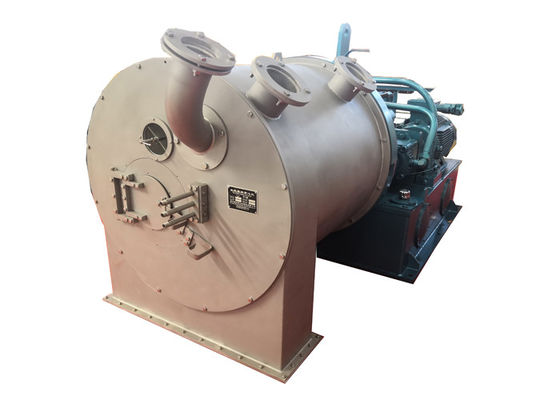

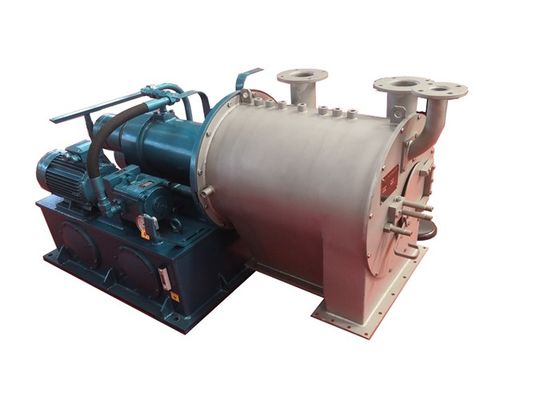

Product Images
Certification
About Jiangsu Hanpu Mechanical Technology Co., Ltd.
A project engineering company established through collaboration between Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S (Denmark), Shanghai Jiaotong University, and Nanjing Kingreat Machinery Co., Ltd. Specializing in:
- MVR evaporation systems
- Salt production projects (powder washing salt and vacuum salt)
- Oil tank sludge cleaning
- Landfill leachate treatment
- Plant/animal oil processing production lines
- Wastewater treatment projects
- CBD oil extraction production lines
- Technical support for API product technology packages
Frequently Asked Questions
1. How can we visit your factory?
For international visitors: Fly to Shanghai or Nanjing Airport. From Shanghai, you can take bullet train. For domestic visitors: Fly or take train directly to Nanjing or Wuxi. We provide pickup service from airport or railway station.
2. Can we visit your end users or contact them?
Yes, we provide customer lists and arrange visits after obtaining their approval.
3. How do you protect the quality?
As a state-owned enterprise with over 100 years history, we maintain strict quality control through advanced machinery, licensed operators, premium components from world-famous brands, and comprehensive testing throughout production.
4. Do you provide installation and commissioning technicians?
Yes, we dispatch technicians when required.
5. What are your competitive advantages?
Quality and experience. We are China's top centrifuge supplier with designs comparable to world-leading brands.
6. Is your price competitive?
While not the lowest in China, we offer the best value - superior quality at favorable prices compared to competitors at similar price points.
7. Do you offer OEM services and parts supply?
Yes, we provide OEM services when supplied with detailed drawings and requirements.
8. Do you supply second-hand equipment?
No, we only supply new equipment.
9. Do you have international agents or service centers?
We have partnerships in several countries including Indonesia, Brazil, and USA.
10. What payment methods do you accept?
We accept TT (Telegraphic Transfer) and LC at sight (Letter of Credit).
