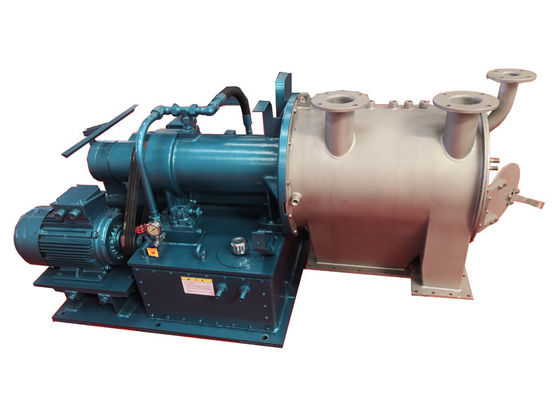

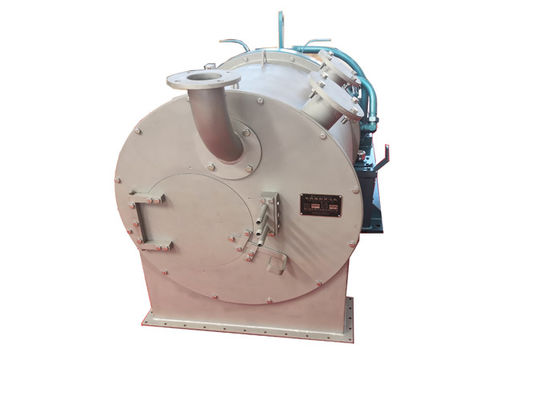

1ton per hour automatically 2 stage pusher centrifuge for EPS dehydrate
Introduction
2-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective.The mixture to be separated is fed through the feeding pipe and distributor continuously and evenly into the first tage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket. The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards,the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.
Process
Double Stage Pushing Centrifuge is applied to separate the slurry which has middle-size crystal or fiber particle, average grading of solid phase ≥0.1mm, solid content (volume ratio) is 30~70%. If change feeding and distributing type, this machine can be also used to dry solid-phase material which is not diffluent, it has good washing effect and large capacity.
Technical parameters
|
Item
|
HR400-N | HR500-N | HR630-N | HR800-N | HR1000-N |
| Inner/Outside basket diameter(mm) | 337/400 | 410/500 | 560/630 | 720/800 | 920/1000 |
| Main motor power(Kw) | 11 | 30-45 | 37-55 | 55-75 | 75-90 |
| Production capacity(t/h) | 1-8 | 5-15 | 8-25 | 15-40 | 18-50 |
Application
This type of centrifuge is well used to separate suspension with its solid size is over 0.1mm and density is over 30%.It can be used in chemical,light,pharmacy and food industry to produce sodium chloride ammonium fluoride ammonium bicarbonate, sodium sulphate, urea, caffeine, polyethylene, polystyrene, oxalate, nitrate. EPS.
