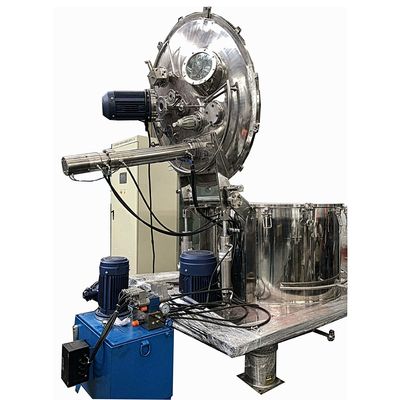

PPSBDL Vertical Basket Automatic Bottom Discharging Filter Centrifuge
Brief introduction
PPSBDL series automatic bag shaking scraper bottom discharging centrifuge is continuous working and intermittent discharging by scraper filtration centrifuge. This is a new kind of centrifuge developed on the basis of PPSBD centrifuge, pneumatic bag shaking device is added to remove the residual filter cake thoroughly. This centrifuge adopts PLC control and step-less speed adjustment by frequency conversion speed controller, which energy can be consumed by dynamic braking system. This design could reach the result of even stop of centrifuge. In accordance with each preset program, feeding, separating, washing, dehydration, discharging, bag shaking on each speed.
This series centrifuges are widely used on suspension separating of middle size particle, especially when the customer do not have a high requirement on solid crystal figure.
Working principle
During the process of discharging,the scraper acts,under the impact of it most products are discharged through the blanking hole on the bottom of drum to the outside.The remnant product layer will be removed because of oscillation effect by the influence of automatic shaking-bag mechanism inside the drum.
Main Characteristics
1. Adopt lid reversible structure or whole housing reversible structure,it is convenient for cleaning and maintenance.
2. Whole-sealing structure, inner machine, bearing seat, scraper are protected by nitrogen.
3. Structure is simple and seam is glazed, easy to clean.
4. The sealing of the main shaft is reliable and inspecting device is equipped, which can ensure no leaking.
5. Uperization is used in the machine.
6. Adopt frequency conversion controlling system, dynamic or regenerative braking.
7. Enclosed cover is set on the transmission device to avoid powder pollution during the process of transmission.
Technical parameters
|
Item/Model
|
PPSBDL100 | PPSBDL210 | PPSBDL400/520 | PPSBDL534 | PPSBDL672 | PPSBDL1000/870 | PPSBDL1125 | PPSBDL1200 |
| Basket diameter(mm) | 800 | 1000 | 1250 | 1350 | 1400 | 1600 | 1680 | 1800 |
| Basket height(mm) | 400 | 500 | 500/630 | 630 | 700 | 800/720 | 740 | 800 |
| Basket Volume(L) | 80 | 165 | 310/400 | 445 | 560 | 800/720 | 900 | 1000 |
| Loading capacity(Kg) | 100 | 210 | 400/520 | 534 | 672 | 1000/870 | 1125 | 1200 |
| Max.speed(r/min) | 1500 | 1200 | 1000/1200 | 1200 | 1150 | 850 | 850 | 800 |
| Max.separating factor | 1007 | 805 | 698/1006 | 1086 | 1033 | 646 | 646 | 645 |
| Motor power(Kw) | 7.5 | 15 | 18.5/22 | 30 | 30 | 37 | 37 | 55 |
| Size(including shock absorber) (mm) | 1700*1400*2064 | 2100*1600*2200 | 2300*1800*2500 | 2600*2000*2900 | 2600*2000*3200 | 3000*2400*3510 | 3000*2400*3100 | 3230*2630*3850 |
| Weight(Kg) | 2100 | 3800 | 5600 | 6000 | 6500 | 12000 | 12500 | 16200 |
Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.
