Mechanical Double Stage Solid Liquid Separation Centrifuge

1 set
MOQ
USD25000-90000/SET FOB SHANGHAI
Price
Mechanical Double Stage Solid Liquid Separation Centrifuge
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Pusher Centrifuge
Power(W): 11-90kw
Discharge: Pushing Type
Working Condition: Granule Size Greater Than 0.15mm
Equipped: PLC System, Inverter
Application: Sea Salt, Mineral Salt
Model Number Allowed: HR
Motor Defends Degree: IP54/F1
High Light:

HR Solid Liquid Separation Centrifuge

,

Mechanical Solid Liquid Separation Centrifuge

,

Sea salt pusher centrifuges

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO,CE
Model Number: HR
Payment & Shipping Terms
Packaging Details: Standard export package,
Delivery Time: 60-90 days after down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/month
Product Description

HR series Horizontal mechanical double stage pusher centrifuge for salt industrials

Brief production

HR series two-stage piston push centrifuge use conditions: It is suitable for separating suspensions with solid particles greater than 0.1mm and a concentration greater than 40%. Suitable for chemical, light industry, food, pharmaceutical and other industries; especially sodium chloride, ammonium chloride, ammonium bicarbonate, sodium sulfate, urea, caffeine, polyethylene, polystyrene, adipic acid, ammonium nitrate produce.



It has the following distinctive features

1. Continuous operation, large production capacity and stable operation.

2. The separation factor is high, the material can be fully dehydrated in the primary and secondary drums, and the moisture content of the filter cake is very low.

3. When the purity of the solid product is required, it can be effectively washed, and the washing liquid and mother liquor can be discharged separately.

4. Low power consumption.



Technology



Item



HR400-N HR500-N HR630-N
Inner/Outside basket diameter(mm) 337/400 410/500 560/630

Length of filtering(mm)

(Inner/Outside basket)

160/160 180/180 240/240
Inner/Outside basket Speed(r/min) 1500-2200 1200-2000 1000-1800
Separating factor 503-1083 402-1118 352-1140
Length stroke(mm) 40 50 50
Frequency of stroke(time/min) 30-80 50-70 30-80
Main motor power(Kw) 11 30-45 37-55
Oil pump motor power(Kw) 5.5 22 30
Production capacity(t/h) 1-8 5-15 8-25



Advantages
1. Continuous operation with large capacity
2. Ideal washing effect
3. Low moisture content of cake
4. Less solid content loss and crystal broken
5. Suitable for abrasion filtering cake

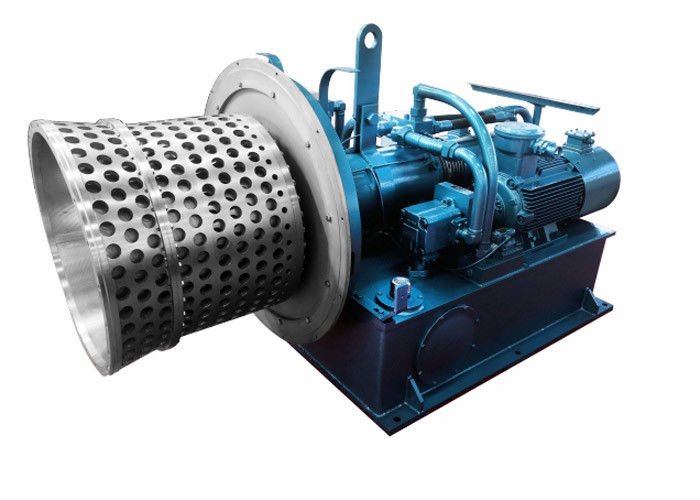

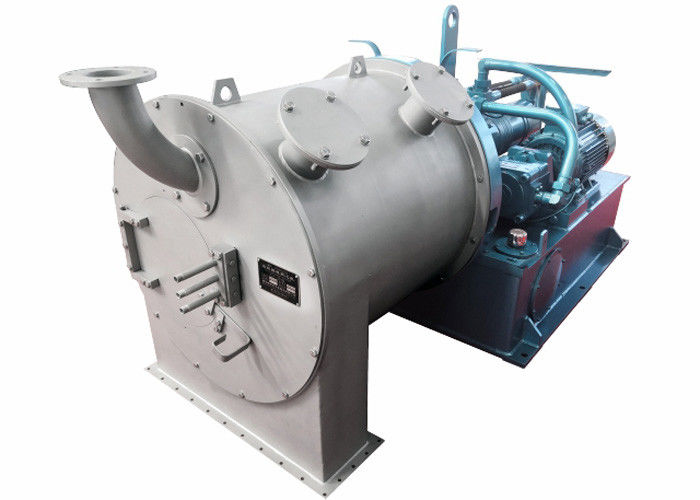

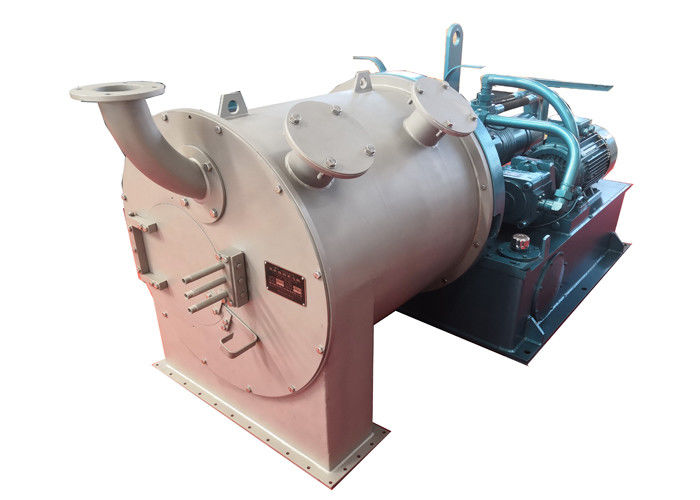

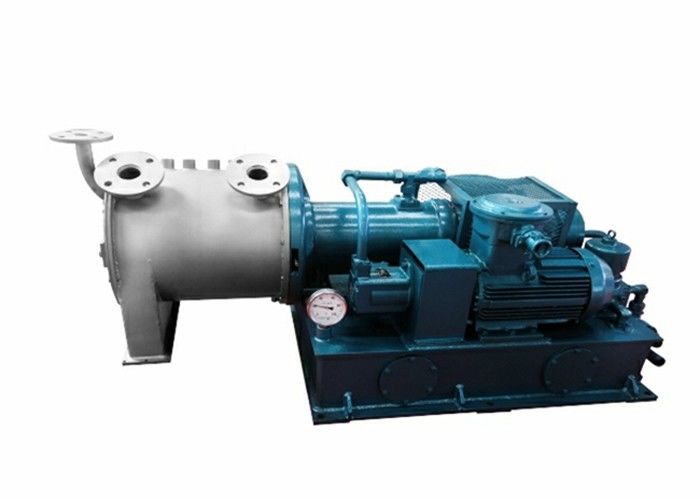

Mechanical Double Stage Solid Liquid Separation Centrifuge 0

Mechanical Double Stage Solid Liquid Separation Centrifuge 1

Mechanical Double Stage Solid Liquid Separation Centrifuge 2



Certification

Mechanical Double Stage Solid Liquid Separation Centrifuge 3



FAQ

1. How do you protect the quality?

As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.

2. What is your advantage compared with your competitors?

Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.

3. Is your price competitive?

My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.

4. Will you dispatch technicians for installation and commissioning?

Yes, we will upon required.

5. Do you have OEM service? Do you supply the parts?

Yes, we do, as long as you provide us your drawing and detailed requirements.

6. Do you have agents or service centre abroad?

We have some partnership in several countries as Indonesia, Brazil, USA.

7. How can we visit your factory?

If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.

8. Can we visit your end user or contact them?

Yes, we will provide you the name list, and arrange the visit after their approval.





Tips:double stage pusher centrifuge,salt automatic discharge centrifuge,titanium separator centrifuge
