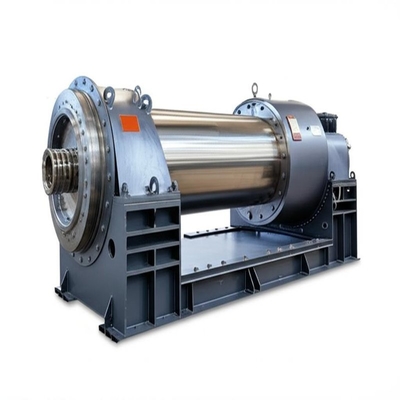

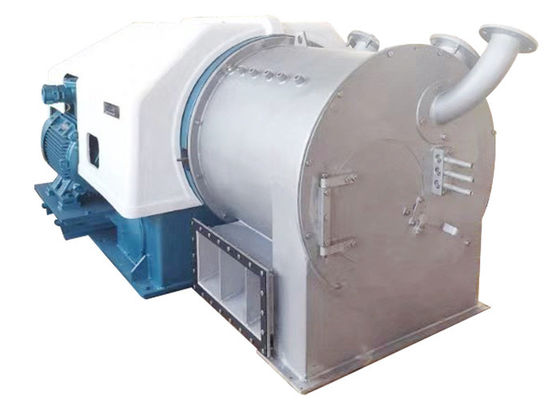

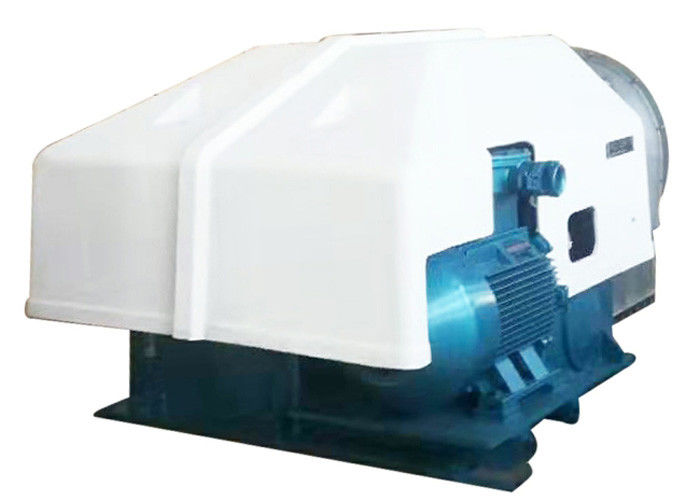

HR series Horizontal mechanical double stage pusher centrifuge for salt industrials
Structure and working principle
Popular Salt Refining Plant Centrifuge The horizontal two-stage pusher centrifuge pump combination, Pushing the base, bearing assembly, the drum, mesh, chassis and electrical control boxes and other component parts. Push the feeding mechanism, the drum, screen and other parts through the bearing assembly supported on the base. The base oil tanks are equipped with oil cooler. Pump combination is also the base of support, the pump inside the oil pool, rotary connection through Triangle tape and host pulley. The electronic control box, a separate system, installed in the appropriate position with the host.
Host at full speed, the suspension through the feed tube into the allocated disk mounted on the outer drum under the influence of centrifugal force, suspension liquid uniform distribution of the drum plate online, the liquid phase by the board net net gap and drumfilter holes and escape, while the solid phase was retention ring residues layer formed in the plate online. Reciprocating motion of the inner drum, the residues along the drum axis goes forward, unloaded outside the drum set before the trough.
Specification
|
Item
|
HR400-N | HR500-N | HR630-N | HR800-N | HR1000-N |
| Inner/Outside basket diameter(mm) | 337/400 | 410/500 | 560/630 | 720/800 | 920/1000 |
|
Length of filtering(mm) (Inner/Outside basket) |
160/160 | 180/180 | 240/240 | 300/300 | 240/320 |
| Inner/Outside basket Speed(r/min) | 1500-2200 | 1200-2000 | 1000-1800 | 800-1600 | 650-1250 |
| Separating factor | 503-1083 | 402-1118 | 352-1140 | 286-1145 | 236-875 |
| Length stroke(mm) | 40 | 50 | 50 | 50 | 50 |
| Frequency of stroke(time/min) | 30-80 | 50-70 | 30-80 | 30-80 | 20-70 |
| Main motor power(Kw) | 11 | 30-45 | 37-55 | 55-75 | 75-90 |
Use and characteristics:
Popular Salt Refining Plant Centrifuge for the horizontal two-stage pusher, continuous operation of the filter centrifuge. At full speed under all operating processes, such as feeding, separating, washing, drying and unloading. Separation of concentrated suspensions containing particles in crystalline or short fibrous (Crystalline particle size of 0.1-10mm short fibers less than 30mm), widely used in chemical, fertilizer, salt, pharmaceutical, food, light industry, etc. industrial sectors.The centrifuges with automatic continuous operation, continuous slagging, high production capacity, and not easy to break the grain residue can be washed and other traditional advantages, but also has high residues production, high solids recovery, low residues of moisture content, lowenergy consumption. And parts of aircraft contact with the material of stainless steel, good corrosion resistance.
Examples of application materials: sodium chloride, sodium sulfate, sodium dichromate, ammonium sulfate, boric acid, cellulose acetate, cellulose nitrate, urea, of PVC, potassium chloride, potassium sulfate, potassium carbonate, phosphate, etc.
Processing equipment
Service
★ 12 months guarantee period from machine arriving date.
Our products are sold all over the world, you can rest assured.
