HR series Horizontal mechanical double stage pusher centrifuge for salt separation
Main Characteristics
This type of centrifuge is well used to separate suspension with its solid size is over 0.1mm and density is over 30%. It can be used in chemical, light, pharmacy and food industry to produce sodium chloride ammonium fluoride ammonium bicarbonate, sodium sulphate, urea, caffeine, polyethylene, polystyrene, oxalate, nitrate.
It has following distinctive features:
1. Could be operated continuously and steadily, which capacity is great.
2. Because of its high separating factor, it could be dehydrated fully in the two baskets. So the filter cake will contain less moist.
3. While there is a high demand to the purity of the products, the centrifuge can wash them and drain out the washing liquid and the mother liquid separately.
4. Low and even consumption of the power.
Technology
|
Item
|
HR400-N | HR500-N |
| Inner/Outside basket diameter(mm) | 337/400 | 410/500 |
|
Length of filtering(mm) (Inner/Outside basket) |
160/160 | 180/180 |
| Inner/Outside basket Speed(r/min) | 1500-2200 | 1200-2000 |
| Separating factor | 503-1083 | 402-1118 |
| Length stroke(mm) | 40 | 50 |
| Frequency of stroke(time/min) | 30-80 | 50-70 |
| Main motor power(Kw) | 11 | 30-45 |
| Oil pump motor power(Kw) | 5.5 | 22 |
| Production capacity(t/h) | 1-8 | 5-15 |
| Overall dimension L*W*H(mm) | 2460*1286*1030 | 3590*1430*1642 |
Production description

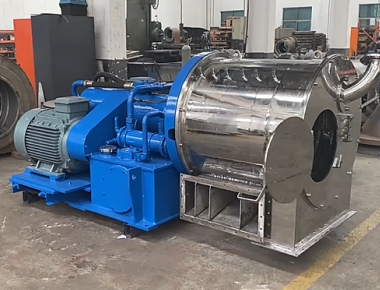

HR automatic salt production plant is a kind of perforated basket centrifuge, both continuous and effective. The mixture to
be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket. Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine.The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed. Afterwards, the cake is continuously discharged out of the basket.
In case of high purity for the solid product, the effective washing can be carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.
This type of centrifuge is well used to separate suspension with its solid size is over 0.1mm and density is over 30%.It can be used in chemical,light,pharmacy and food industry to produce sodium chloride ammonium fluoride ammonium bicarbonate, sodium sulphate, urea, caffeine, polyethylene, polystyrene, oxalate, nitrate.
About us
Our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies
involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.
The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.
FAQ
1. HOW CAN WE VISIT YOUR FACTORY?
- IF YOU COME FROM ABORAD, AIR TO SHANGHAI OR NANJING AIRPORT, OR IF YOU ARRIVE SHANGHAI, YOU CAN TAKE BULLET TRIAN
- IF YOU COME FROM DOMESTIC CITY, AIR OR TRAIN DIRECTLY TO NANJING NAN OR WUXI EAST, WE WILL PICK YOU UP BOTH FROM AIRPORT OR
RAILWAY STATION
2. CAN WE VISIT YOUR END USER OR CONTACT THEM?
YES, WE WILL PROVIDE YOU THE NAME LIST, AND ARRANGE THE VISIT AFTER THEIR APPROVAL.
3. HOW DO YOU PROTECT THE QUALITY?
AS STATE OWNED ENTERPRISE WITH MORE THAN 100YEARS HISTORY, WE HAVE STRICT OPERATION POLICY,ADVANCED PROCESSING MACHINES TO
GUARANTEE THE PRECISION, WORKERS WITH OPERATION LICENSE, RELATED COMPONENTS ARE FROM WORLD FAMOUS BRAND, SERIES OF TEST AND
INSPECTION ARE DONE IN THE WHOLE PRODUCING STAGE.
4. WILL YOU DISPATCH TECHNICIANS FOR INSTALLATION AND COMMISSIONING?
YES, WE WILL UPON REQUIRED.
5. WHAT IS YOUR ADVANTAGE COMPARED WITH YOUR COMPETITORS?
QUALITY AND EXPERIENCE, WE ARE TOP CENTRIFUGE SUPPLIER IN CHINA,OUR DESIGNS AND STRUCTURES
ARE ANALOGOUS TO WORLD LEADER BRANDS.
6. IS YOUR PRICE COMPETITIVE?
MY PRICE IS NOT THE LOWEST IN CHINA, BUT WE PROMISE, FOR THE SAME QUALITY AND COLLOCATION, MY PRICE IS THE
MOST FAVORABLE, FOR THE SAME PRICE, MY QUALITY IS DEFINATELY SUPERIOR TO OTHER BRANDS
7. DO YOU HAVE OEM SERVICE? DO YOU SPPPLY THE PARTS?
YES, WE DO, AS LONG AS YOU PROVIDE US YOUR DRAWING AND DETAILED REQUIREMENTS
8. DO YOU SUPPLY SECOND HAND EQUIPMENTS?
NO, WE DON'T.
9. DO YOU HAVE AGENTS OR SERVICE CENTRE ABROAD?
WE HAVE SOME PARTERSHIP IN SEVERAL COUNTRIES AS INDONESIA, BRZIL, USA.
10. WHAT PAYMENT MODE YOU ACCEPT?
TT, AND LC AT SIGHT
Tips:salt separation,drying salt centrifuge,salt centrifuge china
