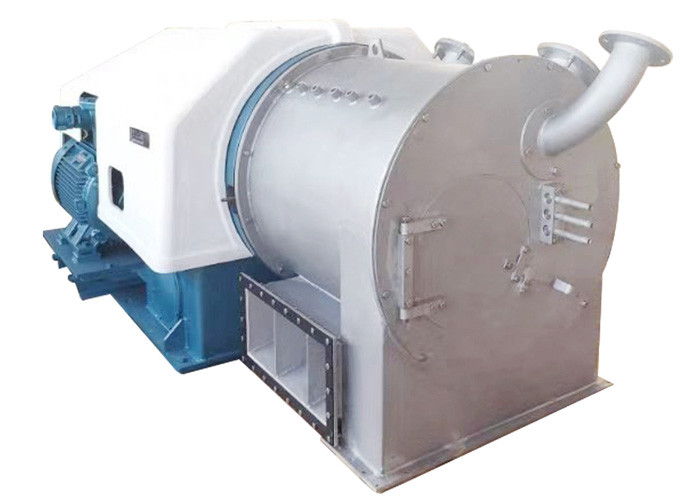

Two Stage Pusher Solid Liquid Separation Centrifuge

Two Stage Pusher Solid Liquid Separation Centrifuge

  • High Light

    HR pusher solid liquid separation centrifuge

    ,

    45KW pusher solid liquid separation centrifuge

    ,

    Two Stage salt centrifuge

  • Description
    Pusher Centrifuge For Salt Dehydration
  • Humidity In The Cake
    Less Than 4%
  • Operation
    Automatic And Continuous
  • Separation Phase
    Two Phase, Solid-liquid
  • Application
    Sea Salt, Mineral Salt And Similar
  • Equipped
    PLC System, Inverter
  • Pump Motor
    5.5-45KW
  • Warranty
    12 Months
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO,CE
  • Model Number
    HR
  • Minimum Order Quantity
    1 set
  • Price
    USD25000-90000/SET FOB SHANGHAI
  • Packaging Details
    Standard export package,
  • Delivery Time
    60-90 days after down payment
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    300 sets/month

Two Stage Pusher Solid Liquid Separation Centrifuge



                                   Two Stage Pusher Centrifuge for Salt Dehydration steel salt centrifuge machine

Brief introduction

Two-stage Pusher Centrifuge is a continuous operation filter centrifuge.Complete feeding,dewatering,washing,drying and unloading at full speed.It is suitable for separating crystalline or short fiber materials with particle size(particle diameter)0.07mm-5mm,suspension concentration(solid phase volume ratio) 30%-80%,best working condition is particle size≥0.15mm,solid occupies 50%,especially suitable for materials that need to be washed in the machine.



Specification



Item



HR400-N HR500-N HR630-N HR800-N HR1000-N
Inner/Outside basket diameter(mm) 337/400 410/500 560/630 720/800 920/1000

Length of filtering(mm)

(Inner/Outside basket)

160/160 180/180 240/240 300/300 240/320
Inner/Outside basket Speed(r/min) 1500-2200 1200-2000 1000-1800 800-1600 650-1250
Separating factor 503-1083 402-1118 352-1140 286-1145 236-875
Length stroke(mm) 40 50 50 50 50
Frequency of stroke(time/min) 30-80 50-70 30-80 30-80 20-70



Advantages:

1. Fully automatic continuous operation,low manual labor intensity;

2. Compact structure,small floor space,convenient installation and main tenance;

3. Large production capacity and low moisture content of filter cake;

4. The cloth is uniform and the vibration is small;

5. The filter cake can be washed;

6. It can prevent the crystal grain from breaking.

Two Stage Pusher Solid Liquid Separation Centrifuge 0

Two Stage Pusher Solid Liquid Separation Centrifuge 1



Certification

Two Stage Pusher Solid Liquid Separation Centrifuge 2



About us

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.



Service

★ 12 months guarantee period from machine arriving date.

☆ Abundant spare parts in stock are available to provide.

★ Our technicians could be dispatched for overseas service.

☆ 7*24 hours technical consultation.

★ Your workers could get trained both in our factory and yours.

☆ Routine tracing till the machine work properly will be done timely.

★ We will remind you to do the normal maintenance.

☆ Your suggestions or any comments & reflection would be treated in priority.

★ Marketing team will visit you during our visit in your country if you require.



Tips:automatic two stage pusher centrifuge,snow salt pusher centrifuge,salt centrifuge factories
