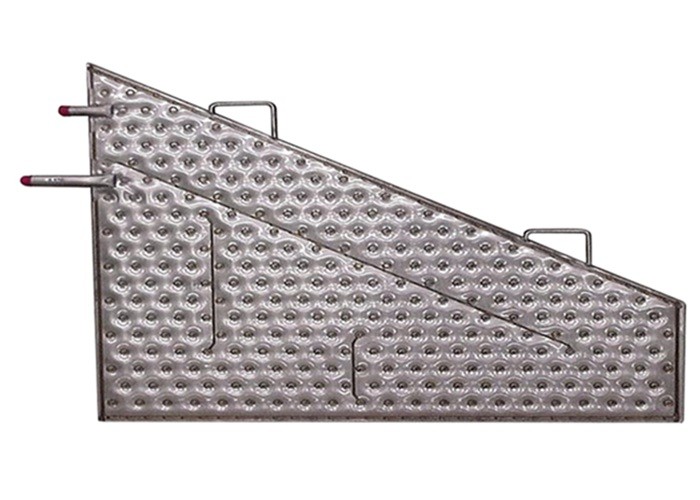

Corrosion Proof SS316 Pillow Plate Heat Exchanger 2x2.5m

Corrosion Proof SS316 Pillow Plate Heat Exchanger 2x2.5m
Features Gallery Product Description Request A Quote
Name: 316 Pillow Plate Heat Exchanger
Brand: Hanpu
Size: 2*2.5m
Working Pressure: 6bar
Tape: Evaporator
Thickness: 1.0mm
Condition: New
High Light:

SS316 pillow plate heat exchanger


pillow plate heat exchanger 2x2.5m


1.0mm dimple plate heat exchanger

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: 2*2.5m
Payment & Shipping Terms
Packaging Details: standard exported wooden case
Delivery Time: 45-60working days
Supply Ability: 50-200sets per months
Product Description

Stainless steel 316L corrosive proof laser welded heat exchanger plates




A single plate heat exchanger unit is composed of two metal plates that are seal-welded together and pressure-formed to display a corrugated surface. There are two types of corrugation:

1. Single-sided: typically used as a clamp-on heat exchanger.
2. Double-sided: typically used as an immersion heat exchanger.



 Name Pillow plate heat exchanger
 Size 2*2.5m
 Thickness 1.0mm
 Material SS304
 Embossed Both sides embossed
 Working pressure 120psi
 Temperature 180 ℃
 Usage Evaporation in the black liquor application





1. Suitable for various media: steam, water, oil, etc.

2. Fully welded, no gasket design, no leakage, high working pressure, high working temperature,

3. Special sharp, working pressure, size can be customized

4. Wide flow channel design, the medium can efficiently transfer heat through the flow channel

5. The advantage of double embossed pillow plate is turbulence, improve the heat transfer efficiency than traditional jacket

6. Easy to install in the outer wall of the storage tank and equipment

7. Modular design, compact equipment, small footprint, easy installation, cleaning and maintenance

8. It can meet the requirements of pharmaceutical and food-grade environmental use condition

Corrosion Proof SS316 Pillow Plate Heat Exchanger 2x2.5m 0



  • Ice bank
  • Evaporator, Condenser
  • Jacketed tank
  • Conical head jacket
  • Falling film chiller
  • Plate heat recovery group
  • Heat exchanger module
  • Gas heat recovery plate group
  • Immersion heating and cooling
  • Special heat exchanger



  • Black liquor
  • Juice
  • Milk
  • Vacuum salt production line
  • Beer fermentation




Corrosion Proof SS316 Pillow Plate Heat Exchanger 2x2.5m 1


Supply Scope


100000m2 pillow plate heat exchanger can be provided each months.



Corrosion Proof SS316 Pillow Plate Heat Exchanger 2x2.5m 2


About us


Jiangsu Hanpu Mechanical Technology Co., Ltd. is a company mainly produce pillow plate and its related products,The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

Jiangsu Hanpu is an internationally engineering company that integrates technical consulting, design, procurement, construction, installation and driving into one, providing engineering EPC general contract, project management, engineering supervision and other services. The company is Committed to be the first and world-renowned technology and technology engineering company in Asia, providing cutting-edge technology and one-stop solutions for the world's industries.



Tag: Pillow plate heat exchanger for sugar, Pillow plate heat exchanger for vacuum salt production line, Pillow plate heat exchanger for beer project
