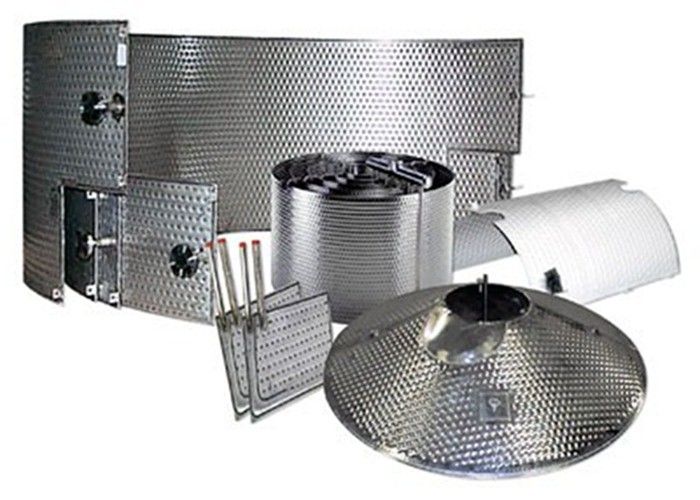

Industrial Pillow Plate Heat Exchanger With Pillow Plate For Condenser
Brief introdcution
The pillow plate is hydraulically inflated by using water through a hydrostatic pump. Hydraulically inflating will guarantee for a safe inflation process. Other inflation processes can be used depending on the application.
The inflation process pressurizes the two sheets which allows the material to deform, a cavity will be created for use of a heat transfer medium. The Pillow Plate can be used with either liquids, steam or refrigerants.
Design

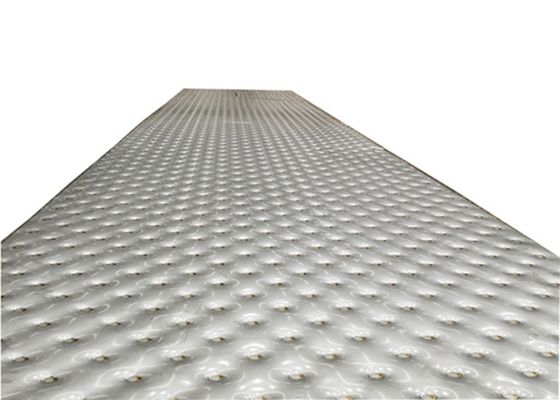

The double embossed pillow is a plate composed of two layers of similar material thickness. This product will deform on both sides after inflation, because it does not require a flat side when in use. Double embossing products are used for immersion applications, clamping applications, other process equipment such as heat recovery banks and refrigeration applications. We also process these double embossed plates in our coolers, such as falling film coolers, freezers, ice machines and immersion coolers
Characteristic
| High pressure capacity (≥5MPa) | Anti-fouling |
| Compact structure | Can be designed into shape |
| High heat transfer | Low flow resistance |
| Maximum size of single piece:2000*12000mm | Easy to clean |
Advantages
1. Cost-effective due to low welding costs
2. Thinner materials can be used, saving you on material costs
3. Pillow Plates' welding pattern guarantees high turbulence and therefore creates high overall heat transfer coefficients
4. Reduced deposition (algae, lime, etc.) due to this higher turbulence (less fouling)
5. Due to the low volume in the plate, little cooling / heating fluid needs to be circulated. As a result, less pump capacity is required
Application
Plate falling evaporator
1. Working principle: Material: Outside the board, it flows down the outer surface in a film shape. Steam: inside the board cavity
2. Typical application: Pulping waste liquid NMMO Acidic wastewater As a reboiler
3. Features: Self-cleaning function, anti-fouling Very little mist entrainment Low flow resistance
Gasketed plate heat exchanger
1. Clean medium: plate cavity Easy scaling medium: between the plate
2. Characteristics Anti-fouling, not easy to block Good heat transfer Compact scale
Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.
FAQ
1. Do you have OEM service? Do you supply the parts? Yes, we do, as long as you provide us your drawing and detailed requirements.
Our products are sold all over the world, you can rest assured.
