Immersion Titanium Pillow Plate Heat Exchanger

Immersion Titanium Pillow Plate Heat Exchanger

  • High Light

    Titanium Pillow Plate Heat Exchanger

    ,

    ISO Pillow Plate Heat Exchanger

    ,

    ANSI dimple sheet heat exchanger

  • Name
    Pillow Plate Heat Exchanger
  • Usage
    Plate Heat Exchanger
  • Liquid Route
    S Type
  • Function
    Heat Transfer
  • Principle
    Large Heat Exchange Area
  • Feature
    High Heat Transfer Coefficient
  • Plate Material
    Stainless Steel Or Customized
  • Heat Exchanger Type
    Plate Heater Exchanger
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO
  • Model Number
    Customized
  • Minimum Order Quantity
    100m2(except for the sample)
  • Price
    USD100/m2-USD300/m2
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    30 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    30000m2 per month

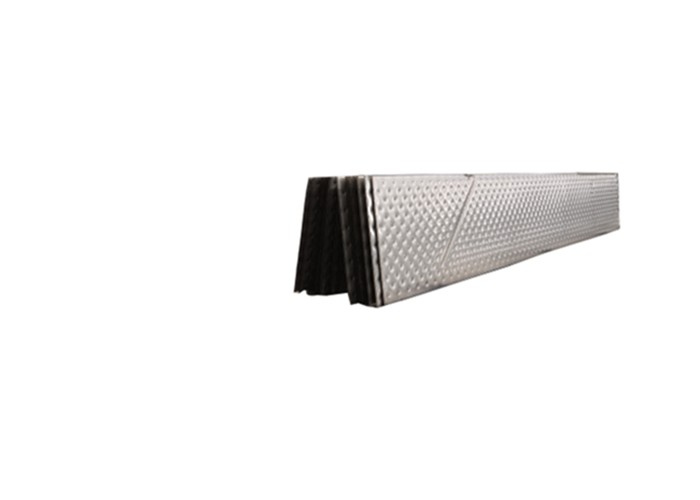

Immersion Titanium Pillow Plate Heat Exchanger

High Reliability Immersion Titanium Pillow Plate Heat Exchanger

Technical overview

Product Name Pillow plate
Material Stainless Steel
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,TA2,Hastelloy
Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Plates Single Embossed Plates
0.8mm +0.8mm 0.8mm+2.0mm base plate
1.0mm+1.0mm 1.0mm+2.5mm base plate
1.2mm+1.2mm 1.2mm+4.0 tot 15mm base plate
1.5mm+1.5mm 1.5mm+4.0 tot 15mm base plate
2.0mm+2.0mm



Introduction

The Pillow Plate consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. The outside perimeter of the Pillow Plate is fully laser welded to create a pressure boundary. At the edges of the Pillow Plate, a contour is welded to create a pressure-tight part.


Product advantages

1. Maintenance-free in dust loaded air
2. No expensive interrupts as cleaning takes place during production

3. Delivered with built-in CIP system

4. Investment with short pay-back period

5. Low maintenance cost

6. Compact design and simple installation

7. Good thermal operating efficiency due to high heat transfer coefficients

8. Usable for vacuum up to 100 mbar

Immersion Titanium Pillow Plate Heat Exchanger 0

Immersion Titanium Pillow Plate Heat Exchanger 1

Immersion Titanium Pillow Plate Heat Exchanger 2



Applications

The application of pillow board is endless cooling and heating. If you have special wishes or requirements, please send an email to our engineers.



Company introduction

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.



Our services

1. 12 months guarantee period from machine arriving date.

2. Our technicians could be dispatched for overseas service.

3. 7*24 hours technical consultation.

4. Your workers could get trained both in our factory and yours.

5. Routine tracing till the machine work properly will be done timely.

6. Your suggestions or any comments & reflection would be treated in priority.

7. Marketing team will visit you during our visit in your country if you require.



Tips:Laser welded pillow plates,pillow plate heat exchanger, air/liquid heat exchanger
