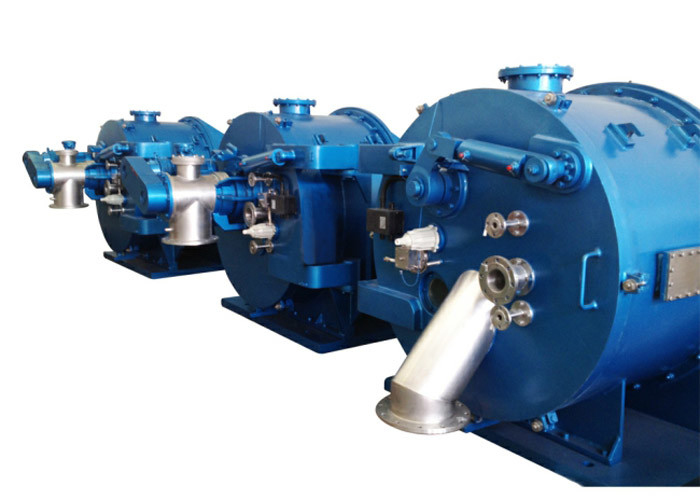

PPC Series Horizontal Corn Starch Peeler Centrifuge

1 set
USD60000-100000/set FOB Shanghai
PPC Series Horizontal Corn Starch Peeler Centrifuge
Features Gallery Product Description Request A Quote
Product Name: Horizontal Siphon Peeler Centrifuge
Key Selling Points: Easy To Operate
Equipped: PLC System, Inverter
Material: Stainless Steel
Operation: Continuous Automatic
Certification: ISO,CE
Grade: GMP
Warranty: 1 Year
Application: Starch, Calcium Carbonate, And Others
High Light:

Horizontal starch peeler centrifuge


PPC Corn starch peeler centrifuge


Corn starch horizontal centrifuge

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO,CE
Model Number: PPCS
Payment & Shipping Terms
Packaging Details: Standard export package,
Delivery Time: 60-75 days after down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/month
Product Description


                          Large Capacity PPC Series Automatic Horizontal Corn Starch Peeler Centrifuge separator machine


Product introduction

PPCS siphon centrifuge is a new type of product that is developed on the basis of the ordinary peeler centrifuge. Based on the siphon principle, this product discharges the filtrate out via a siphoning device or skimming device. The filtering impetus can be changed by adjusting the liquid level at the suction inlet of the siphon pipe (skimming pipe) to further regulate the filtering rate, handling capacity, cake moisture and washing effect. A back-flushing device is configured to realize regeneration of the filter cloth and improve the separation effect. With back-flush, scouring, siphoning and other functions by configuring special devices, the filter cloth can be regenerated completely.
The siphon-type peeler centrifuge is applicable to the occasions involving large-scale production and requiring low cake moisture and sufficient washing, and therefore is commonly used for the separation of starch, sodium bicarbonate, potassium chloride, calcium phosphate and other materials. Currently, it has been widely applied in such industries as pharmaceutical production, food production, bioengineering and chemical engineering.


Technical parameters

Item/Model PPCS-26 PPCS-140 PPCS-250 PPCS-260 PPCS-500 PPCS-1100 PPCS-1800 PPCS-2400
Loading Capacity(kg) 26 140 250 260 500 1100 1800 2400
Max Speed(r/min) 2600 1500 1400 1400 1200 950 900 950
Maximum separating factor 1700 1007 1095 1150 1006 808 815 1008
Motor power(Kw) 15 37 45 45 75/90 132 160 200
Dimensions (including shock absorb) 1800*1375*1902 2439*1900*2150 3050*2400*2192 3050*2400*2192 3875*2500*2612 5620*3200*3930 5862*3600*3910 7577*3700*4053
Weight(kg) 2500 5800 6200 7800 8000 20000 24500 35000



Flow chart

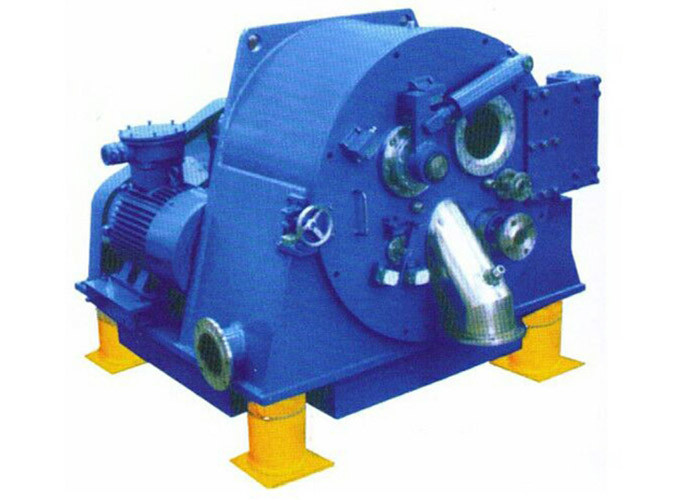

PPC Series Horizontal Corn Starch Peeler Centrifuge 0



Horizontal structure and floating platform damping system adopted to ensure stable operation and suppress noise.
Back-flushing Device Residual cake and filtering medium soaked and flushed reversely to realize regeneration of filter cloth.

Working principle
Except centriufgal force like the other common centrifuges,siphon centrifuge also has a kind of siphon draught force similar to vacuum pipe.
When the centrifuge is of no load,the counter-pulse pipe feeds the liquid to siphon chamber and the liquid is forced to the clearance through the via hole on the drum of siphon chamber,Then air of siphon pipe is eliminated and a layer of liquid forms on the filtering media,so as to make the feeding more even ,then feeding starts ,the siphon pipe rotates to a certain position and it turns to a lower position required after a certain position and it turns to a lower position required after a certain period when the feeding is finshed.The siphon pipe turns to the lowest position (Max diameter place of siphon chamber)After the suspension liquid comes into the drum,solid products are left on the filter cloth while the liquid is forced to go through the filter cloth and internal drum and collected in the clearance between internal and external drum.Then it flows into the siphon chamber through drum and via hole ,Next,the liquid will be draught by siphon pipe and deposited solid will be dewatered and scraped by scraper which is driven by oil cylinder and then the solid falls out through hopper ,When discharging is finished,centrifuge begins to clean the mesh.The siphon centrifuge not only washes the filter cloth in the drum,but also feeds the washing water to siphon pipe,liquid can counter-pulse wash the filter mesh from the internal drum.The washing duration and times are decided by product characteristic and when the washing is finished ,carry out the next circulative processing cycle.

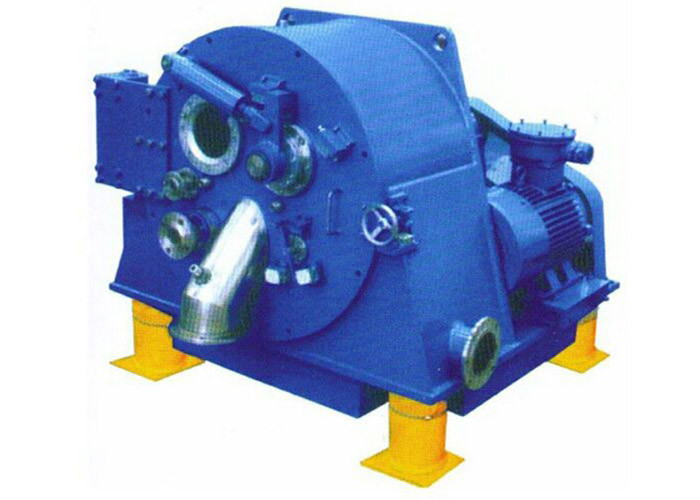

PPC Series Horizontal Corn Starch Peeler Centrifuge 1

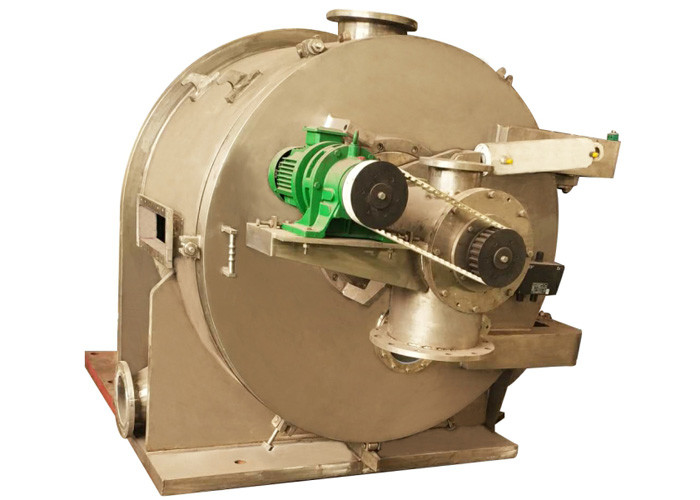

PPC Series Horizontal Corn Starch Peeler Centrifuge 2

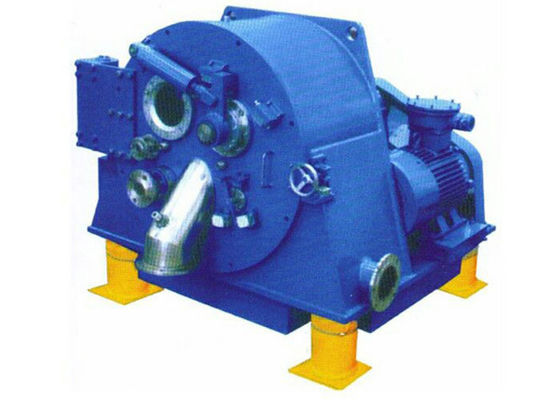

PPC Series Horizontal Corn Starch Peeler Centrifuge 3

Company introdcution

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system,powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project,plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi -effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.


Tips:centrifuge for starch,machine starch separator,horizontal centrifuges
