Siphon Horizontal Peeler Centrifuge

1 set
MOQ
USD60000-100000/set FOB Shanghai
Price
Siphon Horizontal Peeler Centrifuge
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Siphon Horizontal Discharging Peeler Centrifuge
Operation: Continuous Automatic
Collocation 1: Hydraulic System
Collocation 2: Level Detector
Equipped: PLC System, Inverter
Grade: GMP
Product Type: Automatic Centrifuge
Certification: ISO,CE
MOC: SS304,316L As Option
High Light:

PPCS Horizontal Peeler Centrifuge

,

Siphon Horizontal Peeler Centrifuge

,

GMP siphon peeler centrifuge

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO,CE
Model Number: PPCS
Payment & Shipping Terms
Packaging Details: Standard export package,
Delivery Time: 60-75 days after down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/month
Product Description

                               Automatic and continuous peeler centrifuge in pharmaceutical industry for starch



Technical parameters

Item/Model PPCS-26 PPCS-140 PPCS-250 PPCS-260 PPCS-500 PPCS-1100 PPCS-1800 PPCS-2400
Basket volume(L) 21 110 200 210 335 879 1390 1923
Loading Capacity(kg) 26 140 250 260 500 1100 1800 2400
Max Speed(r/min) 2600 1500 1400 1400 1200 950 900 950
Motor power(Kw) 15 37 45 45 75/90 132 160 200



Product introduction

PPCF/PPCC automatic centrifuge is solid-liquid separation equipment which adopts continuous operation and intermittent discharging.
The machine is controlled by PLC. It regulates speed by frequency convertor, braking system adopts dynamic braking and regenerative braking. Through such procedures as product level detection,speed,inspection,shaft temperature and vibration monitoring, the whole separation process is automatic circulative work(including feeding, dehydration, washing, discharging and etc.)
Also manual operation mode is available which can be changed over from full automation mode by customer’s will.

1. PPCC series

PPCC automatic centrifuge adopts wall penetration installation; Its power area and processing area can be separated. It can be used in pharmaceutical industry which has high requirements. The whole housing bucket can be open for inspection and cleaning.

2. PPCF series

PPCF series automatic centrifuge is not only used for medium and fine particle contained suspensions separation,but also used for the solid-liquid separation of noxious,explosive and combustible product.It adopts indined hopper or screwed conveyor to discharge solid product.
It is mainly used in solid-liquid separation of raw materials,intermediates and end products in the fields such as pharmaceutical industry and chemical industry.

3. PPCS series

PPCS Series automatic siphon centrifuge is a solid-liquid separation equipment which adopts continuous operation and intermittent discharging. Its production capacity and separation effect is better than GKF centrifuge.
It is more suitable for separating such product as small solid phase granularity and which is hard to be separated. It is widely used in pharmaceutical, chemical and foodstuff industry(e.g. starch, calcium phosphate, sodum bicarbonate)



Features

PPCC features

1. It is fully conformed to GMP/cGMP and FDA norm and meet the requirements of asepsis raw medicne product.
2. With absolute isolation between power area and process area. It is suitable for occasion when customer requires high quality cleaning to avoid the contaminaton to product.
3. The out shell bucket can be opened, so the whole inernal parts can be obseved and easy for touch wiping and cleaning.
4. Perfect CIP system can be carried out to wash the internal parts easy to clean.
5. Unique pneumatic counter-pulse device is equipped, whch can remove remnant filter cake as much as possible.
6. Totally-enclosed structure equipped with inert gas protection is adopted to be used in ex-proof one selecton.
7. The automatic residual cakes removing device is optional(have owned the national patent.)



PPCS features

1. Comparing with common horizontal centrifuges with the same specification,the production capacity can be raised by 40% to 60% and the moisture content of filter cake is lower.
2. Changing the position of siphon pipe port can regulate the filter speed,thus,different filter speed can be realized during different process as feeding separation filtering,washing and
Dehydration.The centrifuge will be always under best working condition and the equipment operates stably and the vibration and noise are rather low.
3. When the scraper is finished,the regenerate liquid will be fed from the siphon feeding pipe to regenerate and resuspension the filter cake,bake flush and remove the left filter cake.
4. The automatic residual cakes removing device is optional (have owned the national patent).

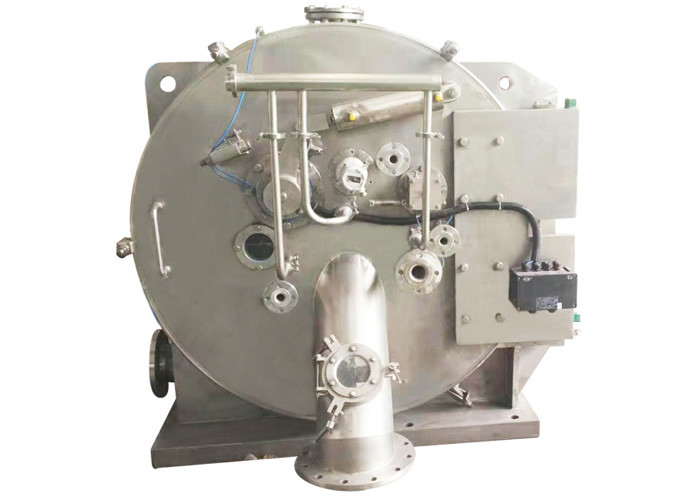

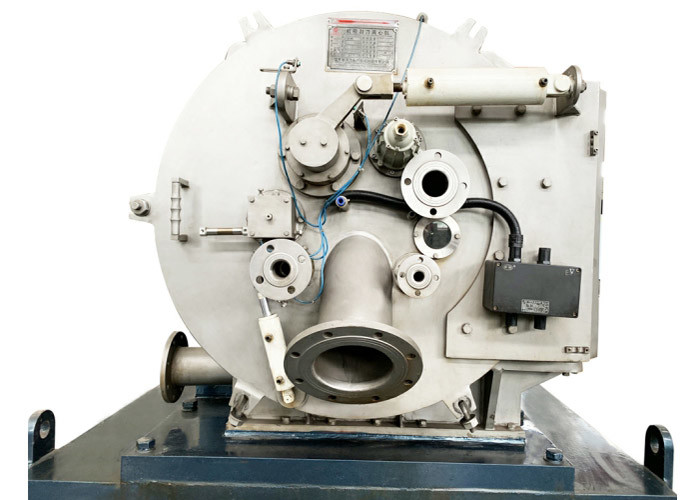

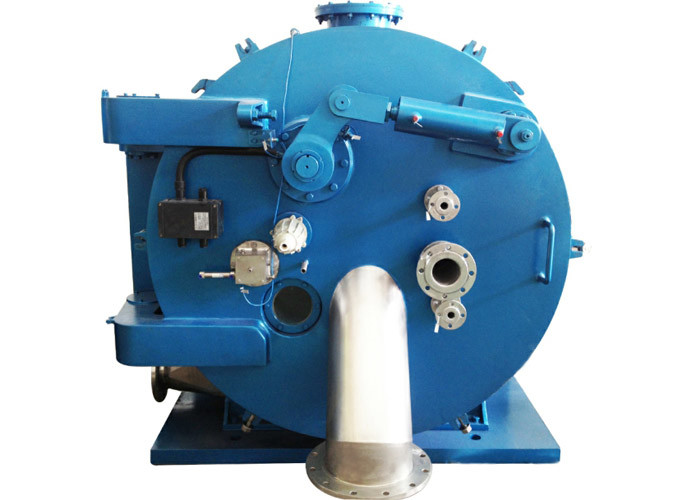

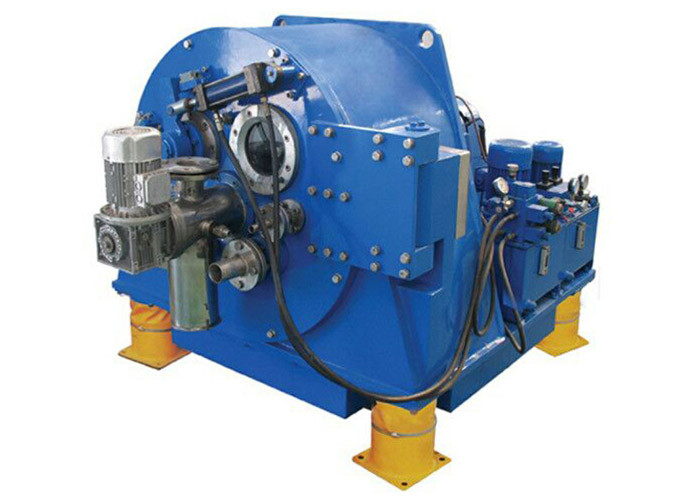

Siphon Horizontal Peeler Centrifuge 0
