Titanium Pusher Centrifuge Machine For Chloroacetic Acid Processing
Product description

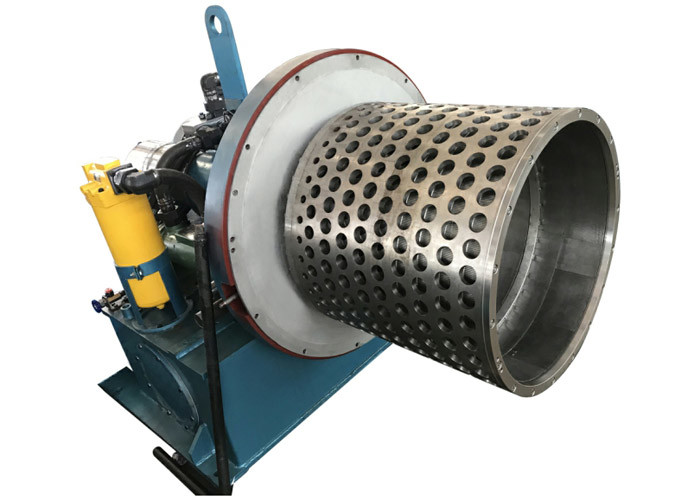

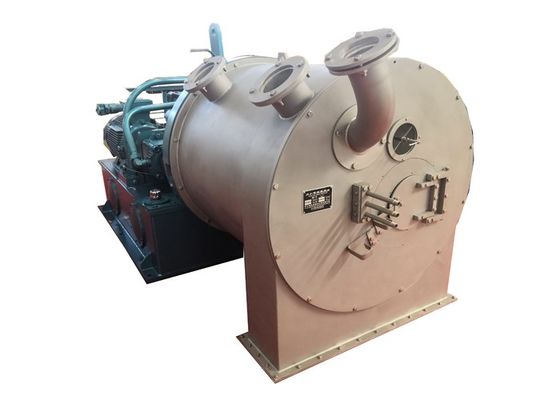

Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, both continuous and effective.The machine can be used to continuously dewater and wash the slurry with crystal and fiber bigger than 50um,so far,it has succeeded in separating more than 200 different kinds of products,such as sodium salt, ammonium salt, sylvine tripolyamide ,
PVC,EPS,etc.
Features
1. It can be operated continuously and steadily,which capacity is great.
2. Because of its high separating factor, it can be dehydrated fully in the two drums.So the filter cake will contain less moist.
3. While there is a high demand to the purity of the products the centrifuge can wash them and drain out the washing liquid and the mother liquid separately.
4. Low and even consumption of the power.
Specification
|
Item
|
HR400-N | HR500-N | HR630-N | HR800-N | HR1000-N |
| Inner/Outside basket diameter(mm) | 337/400 | 410/500 | 560/630 | 720/800 | 920/1000 |
|
Length of filtering(mm) (Inner/Outside basket) |
160/160 | 180/180 | 240/240 | 300/300 | 240/320 |
| Frequency of stroke(time/min) | 30-80 | 50-70 | 30-80 | 30-80 | 20-70 |
| Main motor power(Kw) | 11 | 30-45 | 37-55 | 55-75 | 75-90 |
| Production capacity(t/h) | 1-8 | 5-15 | 8-25 | 15-40 | 18-50 |
| Overall dimension L*W*H(mm) | 2460*1286*1030 | 3590*1430*1642 | 3500*1760*1265 | 3700*1800*1450 | 4200*1900*1900 |
Sketch map of pistons of two ends push material centrifuge operation
Competition
Quality and experience.We are top centrifuge supplier in China,our designs and structures are analogous to world leader brands. My price is not the lowest in China,but we promise,for the same quality and collocation,my price is the most favorable,for the same price,my quality is definitely superior to other brands.
FAQ
1. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.
2. What is your advantage compared with your competitors?
Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.
3. Is your price competitive?
My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.
4. Will you dispatch technicians for installation and commissioning?
Yes, we will upon required.
5. Do you have OEM service? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
6. Do you have agents or service centre abroad?
We have some partnership in several countries as Indonesia, Brazil, USA.
7. How can we visit your factory?
If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.
8. Can we visit your end user or contact them?
Yes, we will provide you the name list, and arrange the visit after their approval.
