Stainless Steel Pusher Centrifuge For Crystal Dehydration

1 set
MOQ
USD25000-90000/SET FOB SHANGHAI
Price
Stainless Steel Pusher Centrifuge For Crystal Dehydration
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Stainless Steel Pusher Centrifuge
Working Type: Continuous
Separation Phase: Two Phase, Solid-liquid
Equipped: PLC System, Inverter
Moisture After Separation: Low
Application: Mineral Salt
Speed: Adjustable
Warranty: 1 Year
Highlight:

solid liquid Pusher Centrifuge

,

Crystal Dehydration Pusher Centrifuge

,

pusher type centrifuge for nitrocellulose

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO,CE
Model Number: HR
Payment & Shipping Terms
Packaging Details: Standard export package,
Delivery Time: 60-90 days after down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/month
Product Description

Stainless Steel Pusher Centrifuge for Crystal Dehydration automatic discharge centrifuge



Product description

HR Series Double Stage Centrifuge is a kind of perforated basket centrifuge, both continuous and effective.

The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.

Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor collecting casing where it will be discharged out of the machine.

The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .

The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, the desired humidity of the cake can be guaranteed.

Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the effective washing canbe carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.



Technical parameters



Item



HR400-N HR500-N HR630-N HR800-N HR1000-N
Inner/Outside basket diameter(mm) 337/400 410/500 560/630 720/800 920/1000
Main motor power(Kw) 11 30-45 37-55 55-75 75-90
Production capacity(t/h) 1-8 5-15 8-25 15-40 18-50



Main characteristics

This type of centrifuge is well used to separate suspension with its solid size is over 0.1mm and
density is over 30%. It can be used in chemical, light, pharmacy and food industry to produce sodium chloride ammonium fluoride ammonium bicarbonate, sodium sulphate, urea, caffeine, polyethylene, polystyrene, oxalate, nitrate.
It has following distinctive features:
1. Could be operated continuously and steadily, which capacity is great.
2. Because of its high separating factor, it could be dehydrated fully in the two baskets. So the filter cake will contain less
moist.
3. While there is a high demand to the purity of the products, the centrifuge can wash them and drain out the washing liquid and the mother liquid separately.
Low and even consumption of the power.

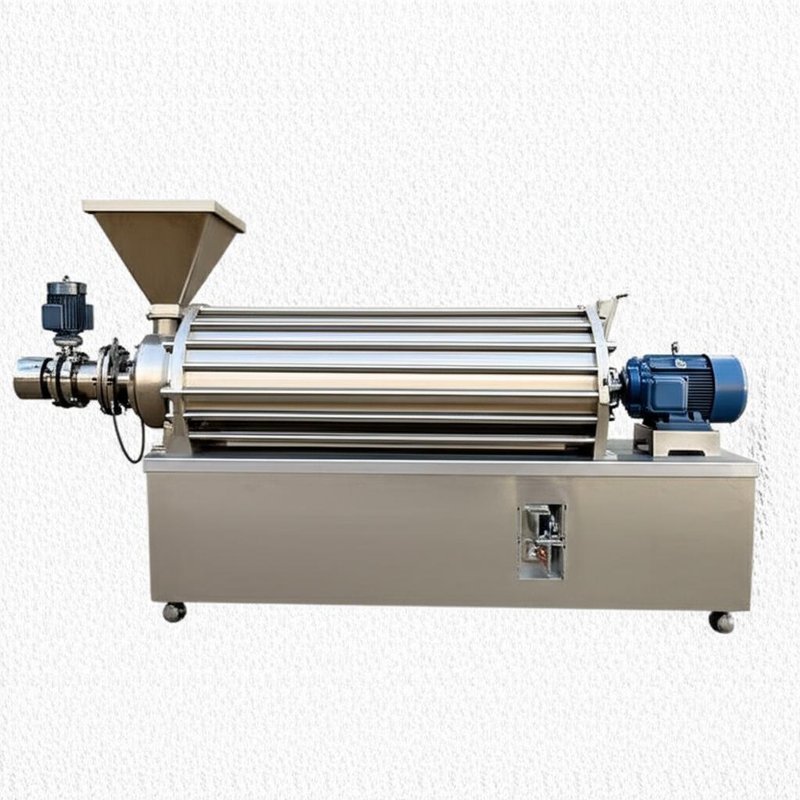

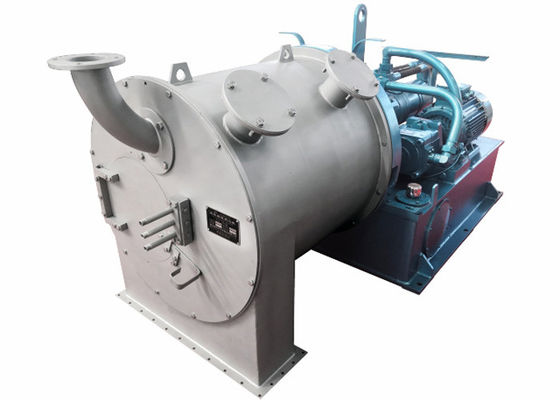

Stainless Steel Pusher Centrifuge For Crystal Dehydration 0

Stainless Steel Pusher Centrifuge For Crystal Dehydration 1










Processing equipment

Stainless Steel Pusher Centrifuge For Crystal Dehydration 2




FAQ

1. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.

2. What is your advantage compared with your competitors?

Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.

3. Is your price competitive?

My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.

4. Will you dispatch technicians for installation and commissioning?

Yes, we will upon required.

5. Do you have OEM service? Do you supply the parts?

Yes, we do, as long as you provide us your drawing and detailed requirements.

6. Do you have agents or service centre abroad?

We have some partnership in several countries as Indonesia, Brazil, USA.

7. How can we visit your factory?

If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.

8. Can we visit your end user or contact them?

Yes, we will provide you the name list, and arrange the visit after their approval.



Tips:salt perforated basket centrifuge,salt centrifuge wholesaler,salt centrifuge china
