GMP SS316L Pillow Plate Falling Film Heat Exchanger

GMP SS316L Pillow Plate Falling Film Heat Exchanger
Features Gallery Product Description Request A Quote
Name: Falling Film Heat Exchanger
Application: Heat Exchange, Cooling
Type: Water, Air-cooled
Warranty: 12months After Equipment Received
Brand: Hanpu
Condition: New
High Light:

SS316L falling film heat exchanger


GMP falling film heat exchanger


3x2m pillow sheet heat exchanger

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: 3*2m
Payment & Shipping Terms
Packaging Details: standard exported wooden case
Delivery Time: 60 working days
Supply Ability: 120 sets per months
Product Description

GMP grade SS 316L double embossed pillow plate falling film heat exchanger




GMP grade Stainless steel 316L double embossed falling film heat exchanger is a kind of heat exchanger built by a series of laser welded, double sides embossed pillow plates,inserted in a frame, used to cool product outside the wall of pillow plate, inside the frame to your desired temperature. Its application depends on pillow plate technology.


Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.




Name falling film heat exchanger
Application Cooling
Advantages Save energy
Size 1.5*2.5*2.5m
Warranty  12months
Certificate ISO
Color Siliver
Material Stainless steel 316L
Principle Large heat exchanger area
Welding Laser welding




1. Plate falling film evaporator

2. Gasketed plate heat exchanger

3. Solid flow powder heat exchanger

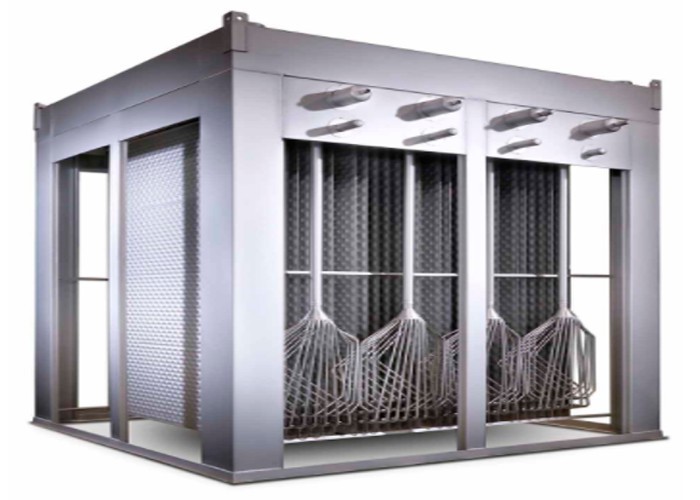

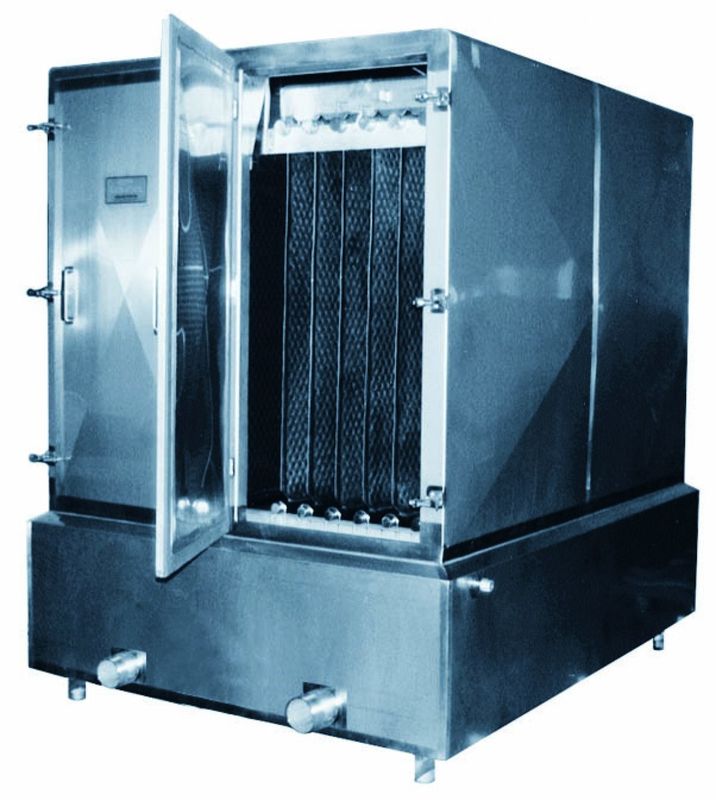

GMP SS316L Pillow Plate Falling Film Heat Exchanger 0GMP SS316L Pillow Plate Falling Film Heat Exchanger 1





1.The system is designed to last for years with low maintenance

2.The Chiller is made of stainless steel, available to use in rough and tough condition

3.The system is easy to clean.





1. Do you have OEM service? Do you supply the parts?

Yes, we do, as long as you provide us your drawing and detailed requirements.

2. Will you dispatch technicians for installation and commissioning?
Yes, we can, we do lots of service, please refer to our after sales part.
3. How do you protect the quality?
My factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing.
4. Can we visit your end user or contact them?
Yes, users are in domestic and abroad, we can provide you the name list. You can go there or contact to get more info.

About us


Jiangsu Hanpu Mechanical Technology Co., Ltd. is a company mainly produce pillow plate and its related products,The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

Jiangsu Hanpu is an internationally engineering company that integrates technical consulting, design, procurement, construction, installation and driving into one, providing engineering EPC general contract, project management, engineering supervision and other services. The company is Committed to be the first and world-renowned technology and technology engineering company in Asia, providing cutting-edge technology and one-stop solutions for the world's industries.

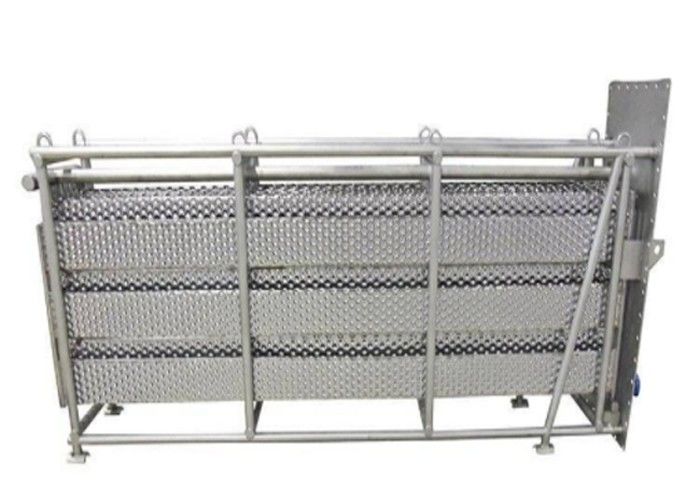

GMP SS316L Pillow Plate Falling Film Heat Exchanger 2


Tag: Falling film chiller, Falling film evaporator, Pillow plate chiller for seafood
