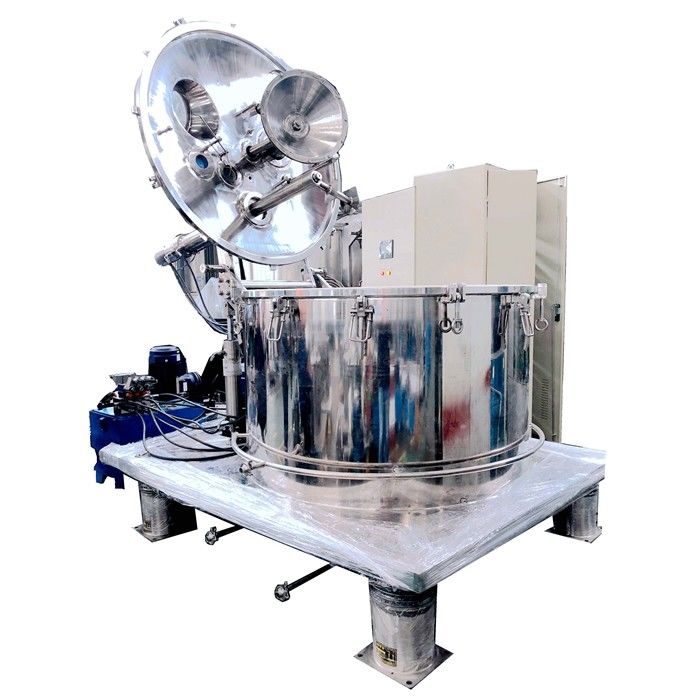

Automatic Vertical Industrial Centrifuge Continuous Separator Food Grade Centrifuge Industrial Scale Centrifuge
Main Characteristics
1. The centrifuge adoptes whole enclosed structure with dependable seal facility which is filled with nitrogen to meet the
explosion proof demand.
2. Adopted with quick open clamshell structure and the optional swash plate distributor, products can be distributed evenly to
reduce vibration caused by unbalanced distribution. with additional washing function, it has a better cleaning effect.
3. The motor is set on top of the machine and directly linked to main shaft which will bring higher transmission efficiency and
reduce friction powders.
4. Pneumatic assisted scraper is adopted to remove the remnant filter cake and CIP system is optional to secure clarity to be in
accordance with GMP Norm.
5. Frequency control system is adopted to assure a stable start-up. PLC is adopted to ensure a complete automatic process
including feeding, filtering washing and discharging etc. lt adopts dynamic(regenerative) breaking without fiction powder
pollution and friction heat so it is much safer
6. No need of human supervision. Following security systems are adopted: self-monitoring and protecting system, speed inspection,
product level detection, over-vibration protection, over-heat ,protection for motor, mechanical and electric double interlock for
scraper rotary and movement, interlock for lid's open and machine's running.
Properties and Uses
PPSBDL centrifuges have a perfect automatic performance and a large processing capacity. In accordance with users’
demand,procedures such as feeding, separating washing, dehydrating and discharging can all be automatically finished followed by
remote control. It's suitable for solid-liquid separation of fibroid products as well as suspension which contains fine grains and
medium size grains solid. For example: chemical industry products such as :gypsum,ammonium sulphide,bluestone,potassium chloride,
borax, dyestuff, resin,pesticide and pharmaceutical products such as:salt, monosodium glutamate, food additive, starch, sugar,
flavoring, antibiotic, vitamin and other industries such as mining and environmental protection ect.
Size information
|
Item/Model
|
PPSBDL100 | PPSBDL210 | PPSBDL400/520 | PPSBDL534 | PPSBDL672 | PPSBDL1000/870 |
| Basket diameter(mm) | 800 | 1000 | 1250 | 1350 | 1400 | 1600 |
| Loading capacity(Kg) | 100 | 210 | 400/520 | 534 | 672 | 1000/870 |
| Max.speed(r/min) | 1500 | 1200 | 1000/1200 | 1200 | 1150 | 850 |
| Motor power(Kw) | 7.5 | 15 | 18.5/22 | 30 | 30 | 37 |
| Size(including shock absorber) (mm) | 1700*1400*2064 | 2100*1600*2200 | 2300*1800*2500 | 2600*2000*2900 | 2600*2000*3200 | 3000*2400*3510 |
| Weight(Kg) | 2100 | 3800 | 5600 | 6000 | 6500 | 12000 |
Features
1. Adopt lid reversible structure or whole housing reversible structure,it is convenient for cleaning and maintenance.
2. Whole-sealing structure, inner machine, bearing seat, scraper are protected by nitrogen.
3. The tensity of polish is accurate, roughness of surface can reach Ra 0.2-0.4μm.
4. Structure is simple and seam is glazed, easy to clean.
5. The sealing of the main shaft is reliable and inspecting device is equipped, which can ensure no leaking.
6. CIP device is set reasonable, it can clean the centrifuge effectively with no cleaning angle.
7. Uperization is used in the machine.
8. Adopt frequency conversion controlling system, dynamic or regenerative braking.
9. Enclosed cover is set on the transmission device to avoid powder pollution during the process of transmission.
Certification
FAQ
1. How can we visit your factory?
- If you come from aborad, air to shanghai or nanjing airport, or if you arrive shanghai, you can take bullet trian
- If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or
railway station
2. Can we visit your end user or contact them?
Yes, we will provide you the name list, and arrange the visit after their approval.
3. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to
guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and
inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we will upon required.
5. What is your advantage compared with your competitors?
Quality and experience, we are top centrifuge supplier in China,our designs and structures
are analogous to world leader brands.
6. Is your price competitive?
My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the
most favorable, for the same price, my quality is definately superior to other brands
7. Do you have OEM service? Do you sppply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements
8. Do you supply second hand equipments?
No, we don't.
9. Do you have agents or service centre abroad?
We have some partership in several countries as Indonesia, Brzil, USA.
10. What payment mode you accept?
TT, and LC at sight
11. Will you help to go to our site for commissioning and training?
Yes, we can.
Tips:Continuous Separator,flat bottom centrifuge,vertical Industrial centrifuge
