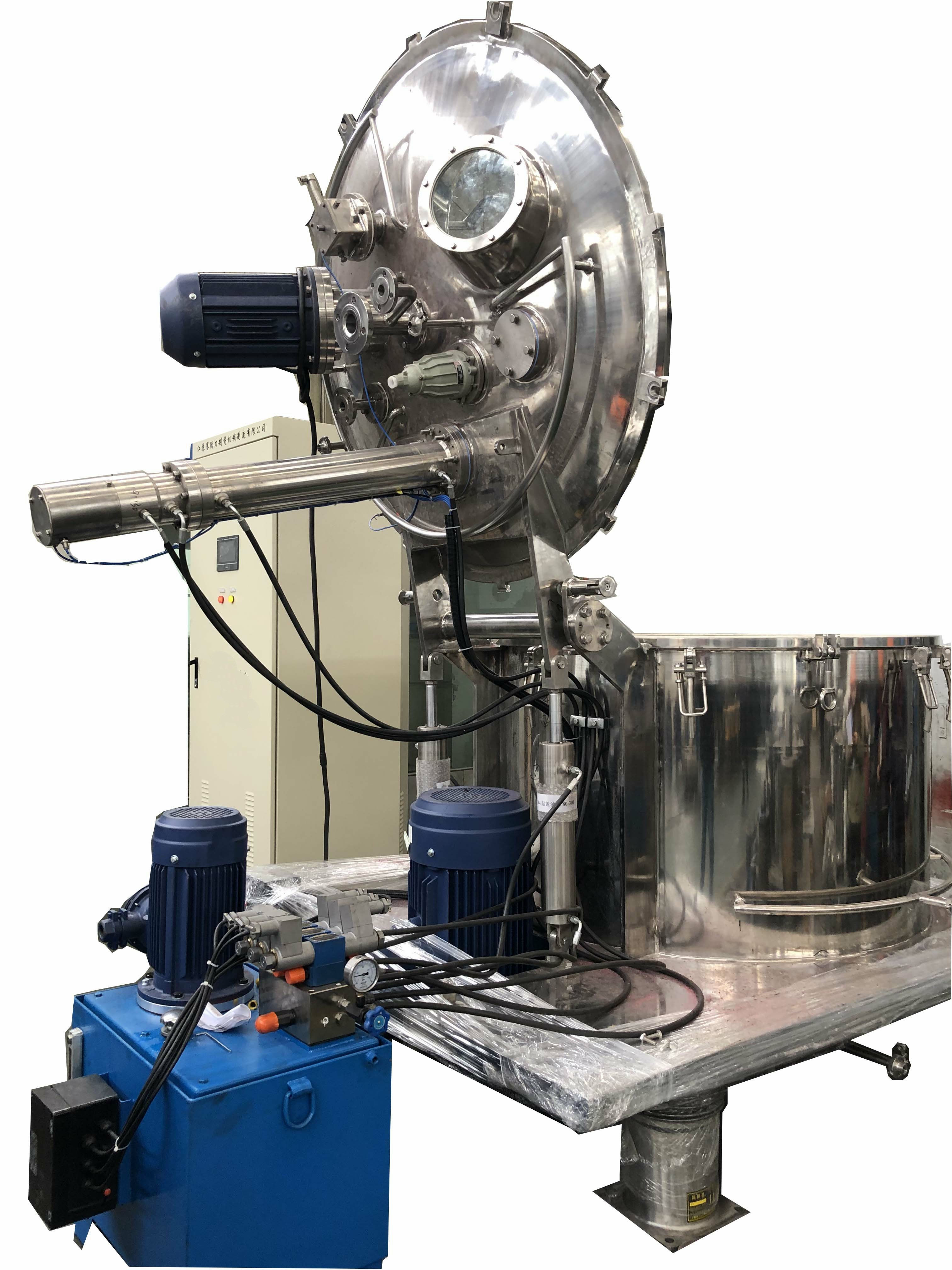

PPSBD Vertical Scraper Discharge Centrifuge For Chemical Industry
Working principle
PPSBD centrifuge is a kind of vertical centrifuge with PLC control automatic filtration type and down scraping discharging, which adopts continuously running and intermittent discharge. SG centrifuge is semi-automatic centrifuge. Driven by the motor, the drum revolves step by step to the speed suitable for feeding, then the products which is to be separated enter to the revolving drum through feeding pipe. Centrifuge would stop feeding if the products' volume amounts reach to the predetermined date and the speed raises higher for separation. Suspension's separation can be made possible by filter cloth(or filter net)under the effect of centrifugal force. Liquid phase is draught out through filter layer and thrown into the empty chamber and finally discharged from the liquid outlet while the solid phase reminds on the drum to from bucket-shaped filter cake which will be washed in the following steps. When filter cake meets the requirement of separation, centrifuge will be slowed down to the discharging speed. The scraper begins to take effect and scrape the filter cake from inner wall to the products outlet of centrifuge.
Technical parameters
| Model | PPSBDF-800 | PPSBDF-1000 | PPSBDF-1200 | PPSBDF-1250 |
| Loading capacity(Kg) | 135 | 180 | 320 | 400 |
| Max.Speed(r/min) | 1500 | 1080 | 970 | 1000 |
| Motor power(Kw) | 7.5 | 15 | 18.5 | 18.5 |
Main Features
1. Inverter control, stable starting, the separating factor can be regulated.
2. Fast type lifting and discharging with convenient operation reduce labor work, increase working efficiency.
3. Closed structure, sealing parts are made of silicon rubber or fluororubber, achieve the purpose of closed explosion proof, suitable for the poisonous, inflammable, and explosive places.
4. Equipped with cleaning spray system, can achieve CIP for centrifuge, clean the external shell and internal wall, external and internal surface of bowl, surface of liquid collector and any other places which difficult to be cleaned, make the environment condition to meet GMP requirement.
5. Universal property is great, widely used, the crystal is difficult to be damaged.
FAQ
1. How can we visit your factory?
- If you come from aborad, air to shanghai or nanjing airport, or if you arrive shanghai, you can take bullet trian
- If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or
railway station
2. Can we visit your end user or contact them?
Yes, we will provide you the name list, and arrange the visit after their approval.
3. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to
guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and
inspection are done in the whole producing stage.
4. Will you dispatch technicians for installation and commissioning?
Yes, we will upon required.
5. What is your advantage compared with your competitors?
Quality and experience, we are top centrifuge supplier in China,our designs and structures
are analogous to world leader brands.
6. Is your price competitive?
My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the
most favorable, for the same price, my quality is definately superior to other brands
7. Do you have OEM service? Do you sppply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements
8. Do you supply second hand equipments?
No, we don't.
9. Do you have agents or service centre abroad?
We have some partership in several countries as Indonesia, Brzil, USA.
10. What payment mode you accept?
TT, and LC at sight
11. Will you help to go to our site for commissioning and training?
Yes, we can.
