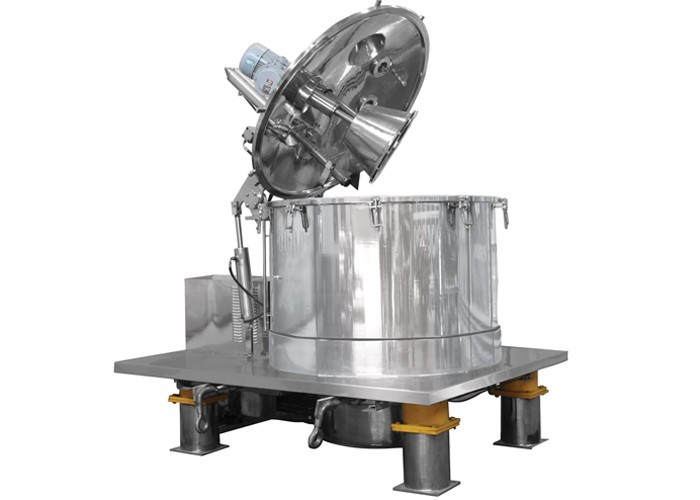

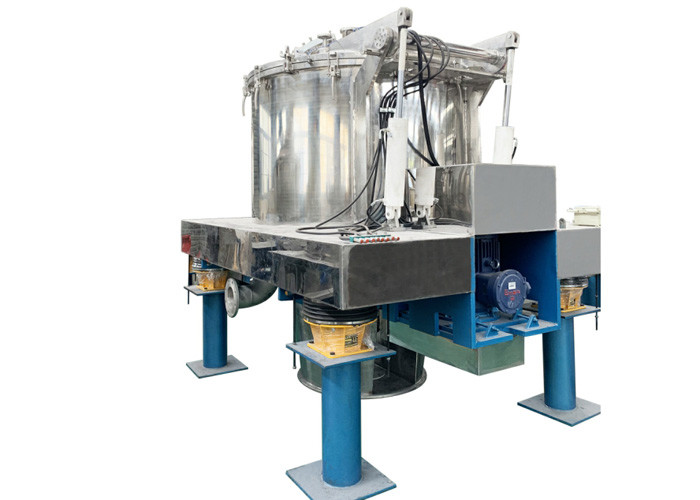

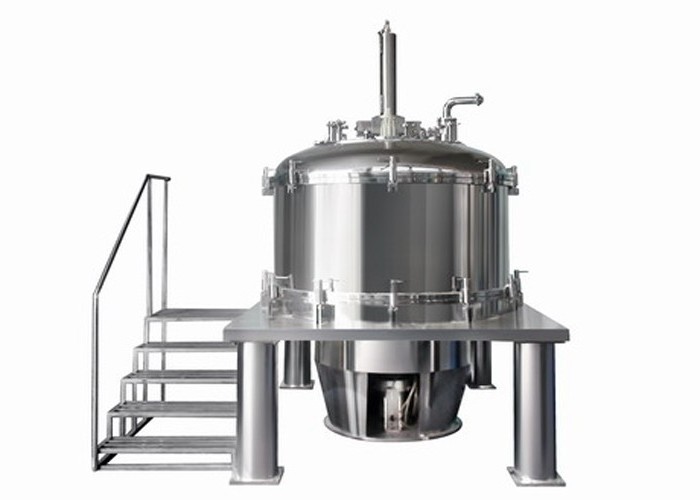

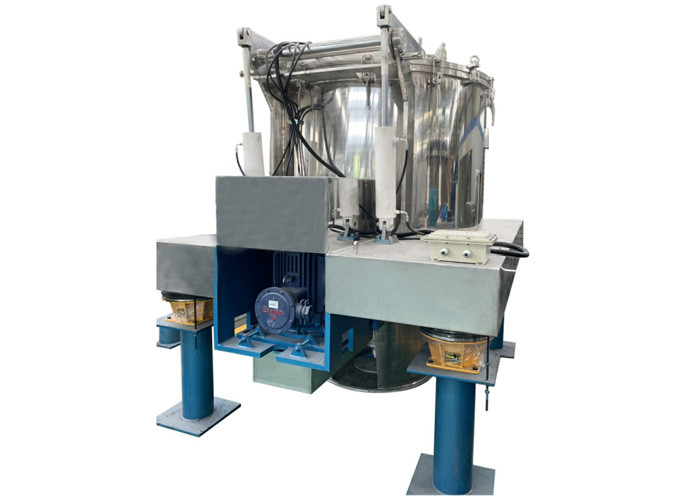

Factory price flat plate centrifuge scraper bottom discharge separator
Brief introdcution
PPSBDL model flat type centrifuge is designed based on GMP standard and environmental protection sanitary requirement, it is a new model bottom dischage centrifuge. It cancelled traditional suspension support leg, and adopts flat plate balance weight and high viscosity damp vibration isolator without base installation. Inverter controls the motor, it concects directly with the bowl through the motor spindle, which makes the bowl rotating at high speed around itself axis to form centrifugal force field, then the centrifugal force pushes the material equispaced on the bowl to separate the solid and the liquid. The liquid penetrates the solid and the filter screen gap, then it is crossed to the main case space, and discharged from the bottom liquid outlet, the solid material will hold back int the bowl. After processed, the bowl speed reduced, and the scraper would scrape the solid material, discharge it through the outlet on the bottom of bowl.
Specification
|
Item/Model
|
PPSBDL100 | PPSBDL210 | PPSBDL400/520 | PPSBDL534 | PPSBDL672 |
| Basket diameter(mm) | 800 | 1000 | 1250 | 1350 | 1400 |
| Basket height(mm) | 400 | 500 | 500/630 | 630 | 700 |
| Basket Volume(L) | 80 | 165 | 310/400 | 445 | 560 |
| Loading capacity(Kg) | 100 | 210 | 400/520 | 534 | 672 |
| Max.speed(r/min) | 1500 | 1200 | 1000/1200 | 1200 | 1150 |
Main Features
1. Bag-shaking device to clear out residue filter cake
2. Disassemble drum liquid blocking plate, auto-locking, easy replace of filter bag.
3. Built-in gas cylinder design, cramped construction.
4. Self-cooling rotation joint, reliable operating and running.
5. Totally enclosed type solid discharge hopper design, isolated material part with driving device.
Working principle
Raw material through feeding tube feeding into high speed rotating basket, under centrifugal force, liquid phase will drain out through liquid exit, solid phase will be filter on the surface of filter bag, formed as filter cake, stop feeding raw material, cleaning filter cake, after cleaning water drain out, rotating scraper will scrap filter cake and discharge to bottom. There have slight residue cake on the surface of filter bag which scraper could not scrap out, pneumatic bag-shaking device will reciprocating motion up and down, shaking residue cake out and discharge, most of residue cake could be clear out totally.
Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.
