3x2m Thermo Plate Heat Exchanger For Falling Film Chiller

3x2m Thermo Plate Heat Exchanger For Falling Film Chiller

  • High Light

    3x2m thermo plate heat exchanger

    ,

    Hanpu thermo plate heat exchanger

    ,

    CE falling film heat exchanger

  • Name
    Pillow Plate Heat Exchanger Thermo Plate For Falling Film Chiller
  • Brand
    Hanpu
  • Size
    3*2m 2*2m..etc Customized
  • Tape
    Plate Heat Exchanger
  • Plate Thickness
    Customized
  • Condition
    New
  • Material
    Stainless Steel
  • After Sale Service
    Provided
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    CE ISO
  • Model Number
    3*2m
  • Minimum Order Quantity
    1sets
  • Price
    USD18,000-USD65,000
  • Packaging Details
    standard exported wooden case
  • Delivery Time
    45-60working days
  • Supply Ability
    50-200sets per months

3x2m Thermo Plate Heat Exchanger For Falling Film Chiller

Stainless steel thermo plate heat exchanger for falling film chiller



Techology



The surface of the heat transfer plate is a plate heat exchanger, which can be made into various shapes and sizes. It is very suitable for applications involving high pressure and extreme temperature. The pillow board design provides efficient heat transfer performance. Its laser welding and inflation channel induce fluid turbulence to obtain high heat transfer coefficient



The material of pillow plate can be SS304, SS316, SS316L, DSS, TA2..etc, the sharp, plate thickness, working pressure can be customized to meet your exact requests.

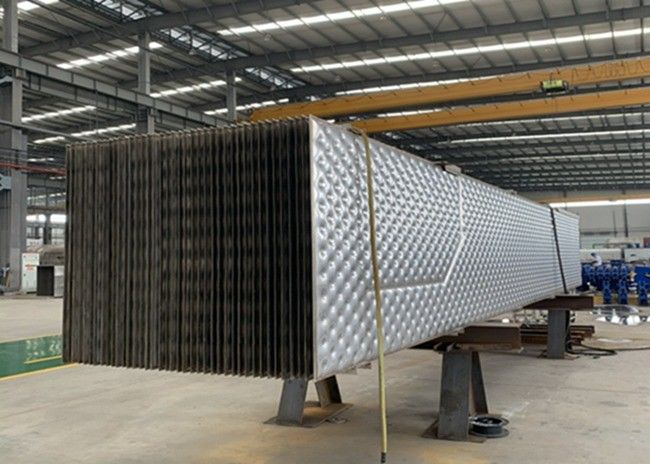

3x2m Thermo Plate Heat Exchanger For Falling Film Chiller 0



Specification



Name Pillow plate heat exchanger
Size 6*2*2m
Thickness 1.0mm
Material SS304
Embossed Both sides embossed
Working pressure 120psi
Temperature 180 ℃
Usage Evaporation in black liquor field
Application

Black liquor, Juice, Milk, Vacuum salt production line, Beer fermentation



Plate type



Double-sided drum pressure, generally used as immersion heat exchange element.

Single-sided drum pressure, generally as a flat sleeve or clamped heat exchanger.

Drawing of falling film chiller
3x2m Thermo Plate Heat Exchanger For Falling Film Chiller 1



Feature



1. Suitable for various media: steam, water, oil, etc.

2. Fully welded, no gasket design, no leakage, high working pressure, high working temperature,

3. Special sharp, working pressure, size can be customized

4. Wide flow channel design, the medium can efficiently transfer heat through the flow channel

5. The advantage of double embossed pillow plate is turbulence, improve the heat transfer efficiency than traditional jacket

6. Easy to install in the outer wall of the storage tank and equipment

7. Modular design, compact equipment, small footprint, easy installation, cleaning and maintenance

8. It can meet the requirements of pharmaceutical and food-grade environmental use condition





Certificate

3x2m Thermo Plate Heat Exchanger For Falling Film Chiller 2



Our service:



1.12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require



About us



Jiangsu Hanpu Mechanical Technology Co., Ltd. is a company mainly produce pillow plate and its related products,The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

Jiangsu Hanpu is an internationally engineering company that integrates technical consulting, design, procurement, construction, installation and driving into one, providing engineering EPC general contract, project management, engineering supervision and other services. The company is Committed to be the first and world-renowned technology and technology engineering company in Asia, providing cutting-edge technology and one-stop solutions for the world's industries.

3x2m Thermo Plate Heat Exchanger For Falling Film Chiller 3



Tag: Pillow plate heat exchanger for sugar, Pillow plate heat exchanger for vacuum salt production line, Pillow plate heat exchanger for beer project
