Automatic Scraper discharge centrifuge design for food separation industrial centrifugal for food
Working Principle
1. It adopts PLC control, program setting, unattended automatic operation, and whole-course monitoring of feeding, primary filtering, washing, fine filtering and discharging.
2. Variable frequency speed control, stable starting, adjustable separation factor.
3. Dynamic braking, non-contact braking mode, without friction and dust pollution.
4. Fully closed structure. The seal is made of silicone rubber or fluorine rubber. The centrifuge cavity is provided with nitrogen protection to meet the requirements of sealing and anti-explosion.
5. Reasonable structure design. The CIP cleaning system (spraying system) ensures the requirements for cleanliness and conforms to the GMP standard.
6. The automatic actuating elements adopt the pneumatic system, which is clean and sanitary.
Brief introduction

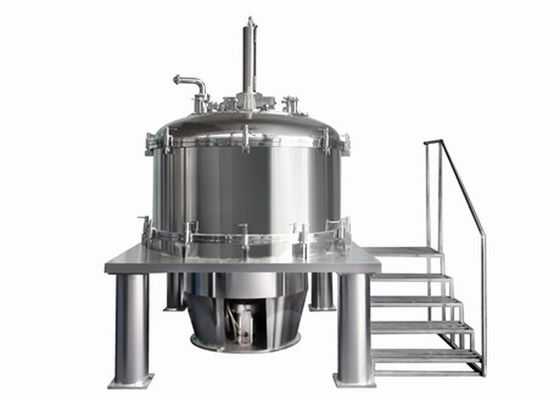

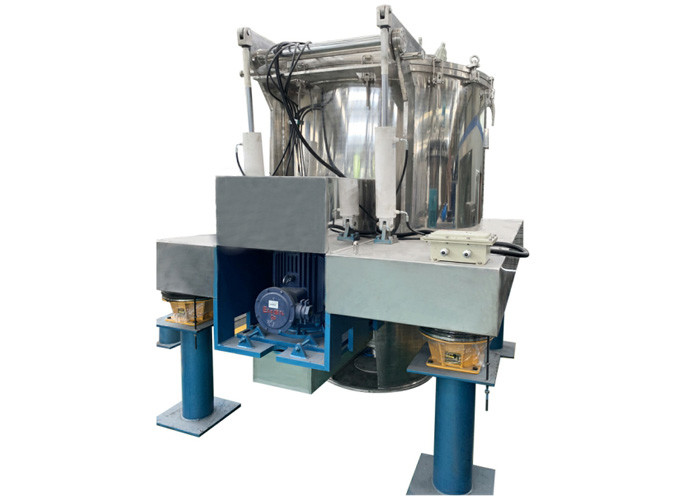

PPSBDL series automatic bag shaking scraper bottom discharging centrifuge is continuous working and intermittent discharging by scraper filtration centrifuge. This is a new kind of centrifuge developed on the basis of PPSBD centrifuge, pneumatic bag shaking device is added to remove the residual filter cake thoroughly. This centrifuge adopts PLC control and step-less speed adjustment by frequency conversion speed controller, which energy can be consumed by dynamic braking system. This design could reach the result of even stop of centrifuge. In accordance with each preset program, feeding, separating, washing, dehydration, discharging, bag shaking on each speed.
This series centrifuges are widely used on suspension separating of middle size particle, especially when the customer do not have a high requirement on solid crystal figure.
Technical parameters
| Model/Item | Basket volume(L) | Loading Capacity(kg) | Max. Speed(r/min) |
Motor power (Kw) |
Size (including shock absorb) (mm) |
| PPSBD60S | 45 | 60 | 1800 | 5.5 | 1700*1200*1700 |
| PPSBD135S | 100 | 135 | 1500 | 7.5 | 1700*1400*1960 |
| PPSBD180S | 140 | 180 | 1080 | 15 | 1968*1500*2060 |
| PPSBD250S | 190 | 250 | 1200 | 15 | 1968*1200*2400 |
| PPSBD320S | 260 | 320 | 970 | 18.5 | 2280*1800*2350 |
Applications
Apply to separating the suspension containing particles, but also fibers, especially the highly sticky, containing micro particles, poisonous and flammable materials, like antibiotics, vitamins, and minerals, salts, gourmet powders, foodstuff additives, amylum, sugar, chemical flavors, thiamin, plasters, Glauber's salt, bluestone, potassium chloride, borax, dyestuffs, pigment, resin, pesticides, and environmental protection. The centrifuge is highly automated, has large capacity and can be remote-controlled.
Our services
1. 12 months guarantee period from machine arriving date.
2. Our technicians could be dispatched for overseas service.
3. 7*24 hours technical consultation.
4. Your workers could get trained both in our factory and yours.
5. Routine tracing till the machine work properly will be done timely.
6. Your suggestions or any comments & reflection would be treated in priority.
7. Marketing team will visit you during our visit in your country if you require.
Tips:Scraper Bottom Discharge Centrifuge,discharging centrifuge,flat bottom centrifuge
