Heat exchanger used stainless steel Laser Welding Dimple Pillow Plate
Plate type
Double-sided drum pressure, generally used as immersion heat exchange element.
Technology
Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.

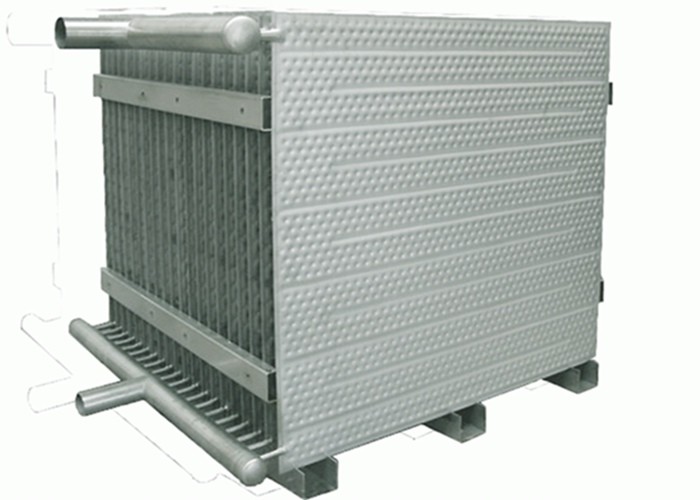

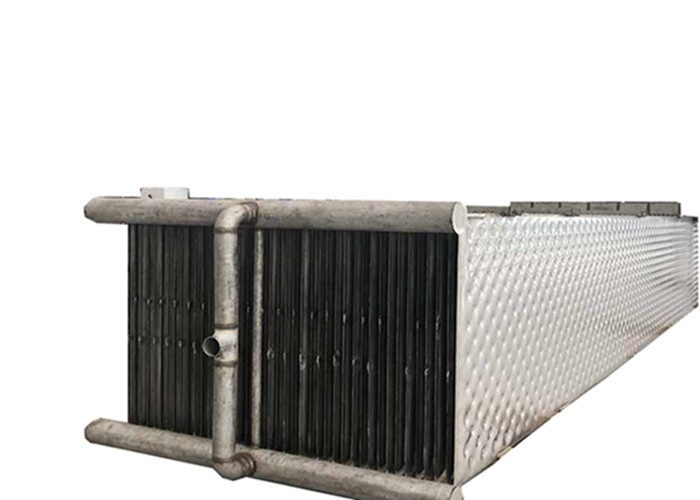

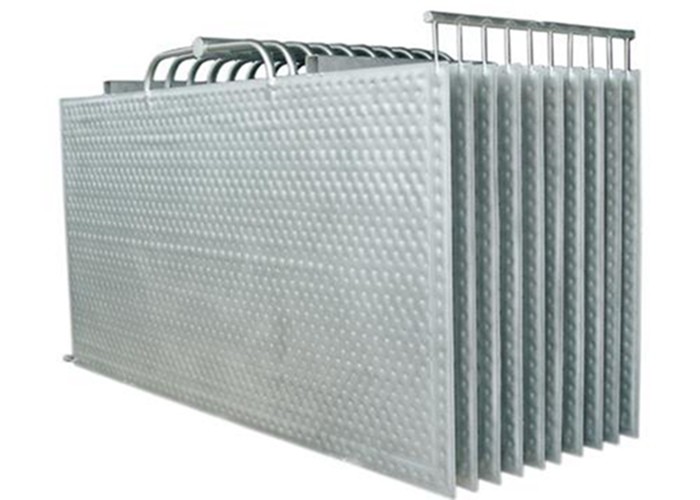

Pillow plate heat exchanger is a kind of plate heat exchanger assembled by inflated pillow plates, the material of pillow plate can be SS304, SS316, SS316L, DSS, TA2..etc, the sharp, plate thickness, working pressure can be customized to meet your exact requests.
Specification
| Name | Pillow plate heat exchanger |
| Size | 6*2*2m |
| Thickness | 1.0mm |
| Material | SS304 |
| Embossed | Both sides embossed |
| Working pressure | 120psi |
| Temperature | 180 ℃ |
| Usage | Evaporation in black liquor field |
| Application | Black liquor, Juice, Milk, Vacuum salt production line, Beer fermentation |
Types
Feature
· Unique three-dimensional surface runner
· High heat transfer coefficient
· It is not easy to scale
· Not easily blocked
· Compact structure
· High temperature and high pressure resistance
· Fully welded structure
· Floating Head Design
· Easy to clean
· Lower flow resistance
Supply Scope
100000m2 pillow plate heat exchanger can be provided each months.
About us
Jiangsu Hanpu Mechanical Technology Co., Ltd, our company's production base is located in the Huangqiao Industrial Zone of Taixing, Covering an area of 300 acres, the companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage,etc.
