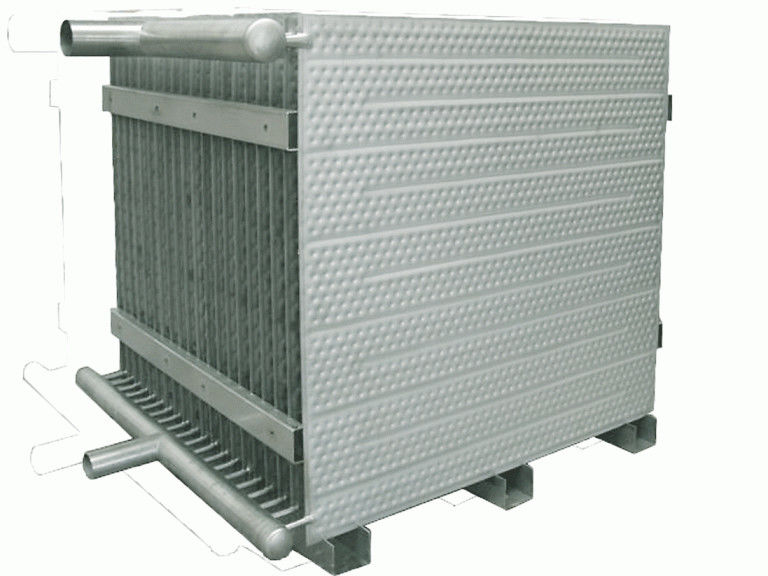

Pillow plate stainless steel thermo plate for pillow plate heat exchanger

Pillow plate stainless steel thermo plate for pillow plate heat exchanger

  • Name
    Thermo Plate For Pillow Plate Heat Exchanger
  • Brand
  • Size
    3*2m 2*2m..etc Customized
  • Tape
    Plate Heat Exchanger
  • Plate Thickness
  • Condition
  • Material
    Stainless Steel
  • After Sale Service
  • Place of Origin
  • Brand Name
  • Certification
    CE ISO
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    standard exported wooden case
  • Delivery Time
    45-60working days
  • Supply Ability
    50-200sets per months

Pillow plate stainless steel thermo plate for pillow plate heat exchanger

Stainless steel pillow plate heat exchanger thermo plate for falling film chiller




A single plate heat exchanger unit is composed of two metal plates that are seal-welded together and pressure-formed to display a corrugated surface. There are two types of corrugation:

1.Single-sided: typically used as a clamp-on heat exchanger.
2.Double-sided: typically used as an immersion heat exchanger.




Name Pillow plate heat exchanger
Size 6*2*2m
Thickness 1.0mm
Material SS304
Embossed Both sides embossed
Working pressure 120psi
Temperature 180 ℃
Usage Evaporation in black liquor field

Black liquor, Juice, Milk, Vacuum salt production line, Beer fermentation




1. Suitable for various media: steam, water, oil, etc.

2. Fully welded, no gasket design, no leakage, high working pressure, high working temperature,

3. Special sharp, working pressure, size can be customized

4. Wide flow channel design, the medium can efficiently transfer heat through the flow channel

5. The advantage of double embossed pillow plate is turbulence, improve the heat transfer efficiency than traditional jacket

6. Easy to install in the outer wall of the storage tank and equipment

7. Modular design, compact equipment, small footprint, easy installation, cleaning and maintenance

8. It can meet the requirements of pharmaceutical and food-grade environmental use condition


Drawing of falling film chiller
Pillow plate stainless steel thermo plate for pillow plate heat exchanger 0



Our service:


1.12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require


About us


Jiangsu Hanpu Mechanical Technology Co., Ltd. is a company mainly produce pillow plate and its related products,The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

Jiangsu Hanpu is an internationally engineering company that integrates technical consulting, design, procurement, construction, installation and driving into one, providing engineering EPC general contract, project management, engineering supervision and other services. The company is Committed to be the first and world-renowned technology and technology engineering company in Asia, providing cutting-edge technology and one-stop solutions for the world's industries.

Pillow plate stainless steel thermo plate for pillow plate heat exchanger 1
