Stainless Steel Dimple Pillow Plate For Heat Exchanger For Beer brewing
Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow plate heat exchanger with uneven surface.
1. Compact structure
2. High heat transfer coefficient
3. It is not easy to scale.
4. Not easily blocked
5. High temperature and high pressure resistance
6. Fully welded structure
7. Easy to clean
8. Lower flow resistance
9. Unique three-dimensional surface runner
|Double Embossed Pillow Plate||Single Embossed Pillow Plate|
|Pillow Plate 1.0mm +1.0mm||Pillow Plate 1.0mm+2.5mm|
|Pillow Plate 1.2mm+1.2mm||Pillow Plate 1.2mm+4.0-10mm|
|Pillow Plate 1.5mm+1.5mm||Pillow Plate 1.5mm+4.0-10mm|

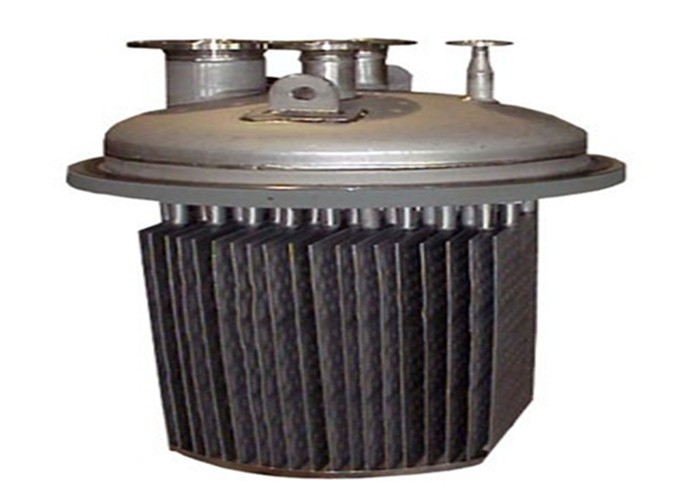

1.Wide-channel plate-shell heat exchanger:
Combining the advantages of shell-and-tube heat exchanger and plate heat exchanger, it is easy for scaling materials to move
between boards and clean materials to move inside boards.
Usually floating head structure design is adopted. When cleaning, the whole group of plate bundles can be pulled out.
2.Wide-channel plate-shell heat exchanger:
Specially designed for working conditions with larger particles or higher viscosity, the medium can fully flow in the runner
without blockage under the above working conditions. Generally, the solid medium goes between the plates without contacts, and the
clean medium goes through the plate cavity with contacts:
Flow resistance is small and scaling is not easy.
High heat transfer coefficient.
Easy to clean.
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
1. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.
2. What is your advantage compared with your competitors?
Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.
3. Is your price competitive?
My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.
4. Will you dispatch technicians for installation and commissioning?
Yes, we will upon required.
5. Do you have OEM service? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
6. Do you have agents or service centre abroad?
We have some partnership in several countries as Indonesia, Brazil, USA.
7. How can we visit your factory?
If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.
8. Can we visit your end user or contact them?
Yes, we will provide you the name list, and arrange the visit after their approval.
Tips:welded pillow plate;plate heat exchanger beer;cooling pillow plate
