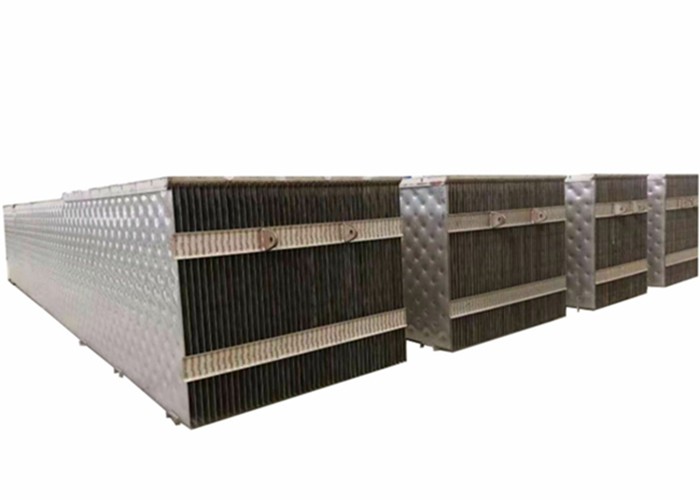

SS 6x2m Thermo Plate Heat Exchanger With Wide Tubes Pillow Plate

1sets
MOQ
USD18,000-USD65,000
Price
SS 6x2m Thermo Plate Heat Exchanger With Wide Tubes Pillow Plate
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Wide Tubes Pillow Plate
Brand: Hanpu
Tape: Plate Heat Exchanger
Liquid Flow Rate: Customized
Condition: New
Material: Stainless Steel
After Sale Service: Provided
Warranty: 1 Year
High Light:

6x2m thermo plate heat exchanger

,

ASMI thermo plate heat exchanger

,

OEM dimple plate heat exchangers

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: 6*2m
Payment & Shipping Terms
Packaging Details: standard exported wooden case
Delivery Time: 45-60working days
Supply Ability: 50-200sets per months
Product Description

SS 6*2m thermo plate heat exchanger with wide tubes pillow plate



Introduction



A single plate heat exchanger unit is composed of two metal plates that are seal-welded together and pressure-formed to display a corrugated surface. There are two types of corrugation:

1. Single-sided: typically used as a clamp-on heat exchanger.
2. Double-sided: typically used as an immersion heat exchanger.



Specification



Product Name
Pillow plate heat exchanger
Material
Stainless Steel
Color
Nickel White
Standard
DIN GB ISO JIS BA ANSI ASMI
Grade
SUS201,SUS304,SUS316,DSS2205
Overview double pillow embossed plate material ratios
pillowplate 0.8 mm + 0.8 mm
pillowplate 1.0 mm + 1.0 mm
pillowplate 1.2 mm + 1.2 mm
pillowplate 1.5 mm + 1.5 mm
pillowplate 2.0 mm + 2.0 mm
Overview single pillow embossed plate material ratios
pillowplate 0.8 mm + 2.0 mm base plate
pillowplate 1.0 mm + 2.5 mm base plate
pillowplate 1.2 mm + 4.0 tot 15 mm base plate
pillowplate 1.5 mm + 4.0 tot 15 mm base plate
pillowplate 2.0 mm + 5.0 tot 15 mm base plate



Plate type



Double-sided drum pressure, generally used as immersion heat exchange element.

Single-sided drum pressure, generally as a flat sleeve or clamped heat exchanger.

Pillow plate
SS 6x2m Thermo Plate Heat Exchanger With Wide Tubes Pillow Plate 0

Drawing of falling film chiller
SS 6x2m Thermo Plate Heat Exchanger With Wide Tubes Pillow Plate 1



Feature



· Unique three-dimensional surface runner
· High heat transfer coefficient
· It is not easy to scale
· Not easily blocked
· Compact structure
· High temperature and high pressure resistance
· Fully welded structure
· Floating Head Design
· Easy to clean
· Lower flow resistance





Certificate

SS 6x2m Thermo Plate Heat Exchanger With Wide Tubes Pillow Plate 2



About us



Jiangsu Hanpu Mechanical Technology Co., Ltd. is a company mainly produce pillow plate and its related products,The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.

Jiangsu Hanpu is an internationally engineering company that integrates technical consulting, design, procurement, construction, installation and driving into one, providing engineering EPC general contract, project management, engineering supervision and other services. The company is Committed to be the first and world-renowned technology and technology engineering company in Asia, providing cutting-edge technology and one-stop solutions for the world's industries.





Tag: Pillow plate heat exchanger for sugar, Pillow plate heat exchanger for vacuum salt production line, Pillow plate heat exchanger for beer project
