Titanium Steam Dimple Jacket Heat Exchanger High Heat Transfer Coefficient

Titanium Steam Dimple Jacket Heat Exchanger High Heat Transfer Coefficient

  • High Light

    Beer dimple jacket heat exchanger

    ,

    Titanium dimple jacket heat exchanger

    ,

    ISO dimple jacket heat transfer

  • Product Name
    Dimple Heated Jacket Plate Heat
  • Feature
    High Heat Transfer Coefficient
  • Principle
    Large Heat Exchange Area
  • Surface Treatment
    Dimpled
  • Equipment
    Import Processing Equipment
  • Keyword
    Plate Heat Exchanger Gasket
  • Brand
    Hanpu
  • Application
    PHE,cooling Tower
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO
  • Model Number
    Customized
  • Minimum Order Quantity
    100m2(except for the sample)
  • Price
    USD100/m2-USD300m2
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    30 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    TT,.LC, Western Union

Titanium Steam Dimple Jacket Heat Exchanger High Heat Transfer Coefficient

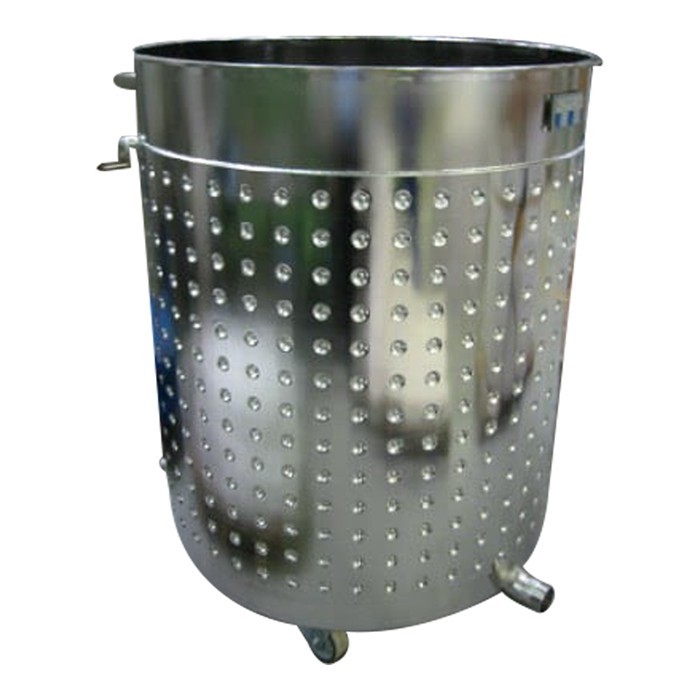

Titanium Steam Dimple Heated Jacket Plate Heat Exchanger for Beer

Brief introduction

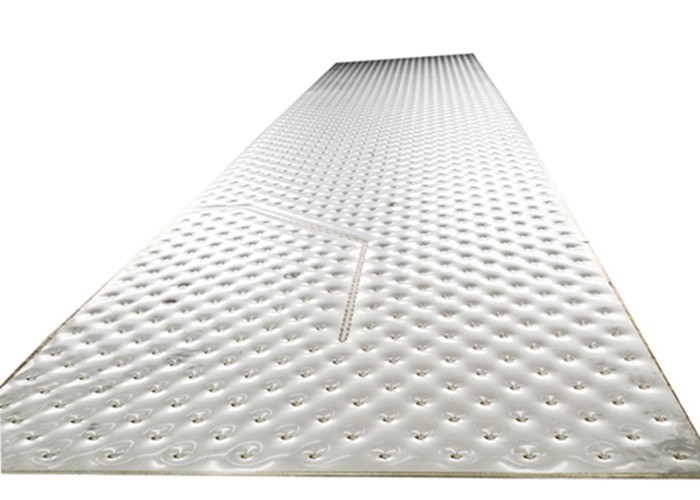

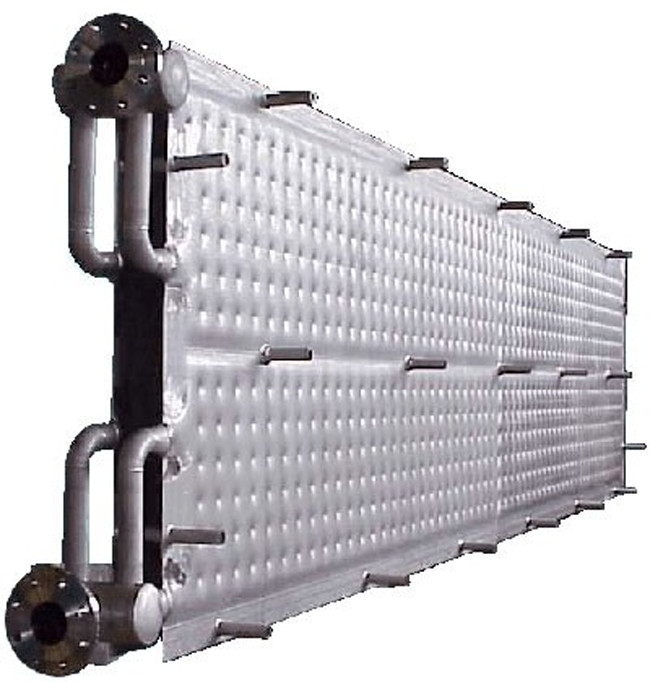

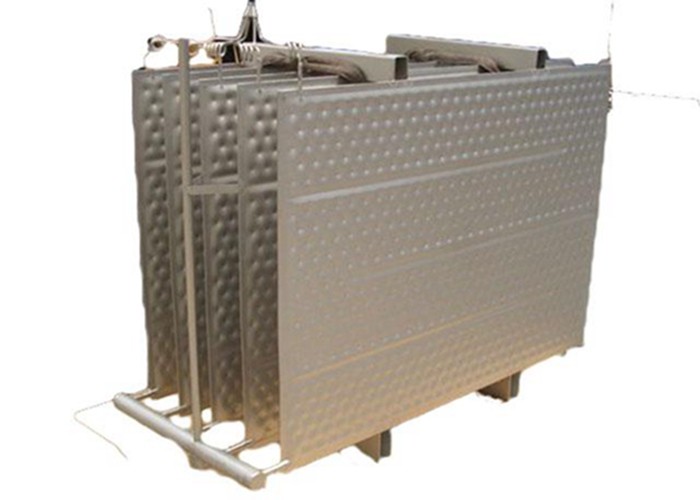

Pillow Plates, also called dimpled plates or thermo plates, consists of two stainless steel sheets that are laser welded together by welding a custom circle weld pattern. Then the plate is inflated by using water pressure, which creates a specific single or double embossed profile – the pillow plate, through which the cooling or heating is conducted. The thickness and the spot pattern are determined by the pressure requirements.



Features

1. Compact structure

2. High heat transfer coefficient

3. It is not easy to scale.

4. Not easily blocked

5. High temperature and high pressure resistance

6. Fully welded structure

7. Easy to clean

8. Lower flow resistance

9. Unique three-dimensional surface runner



Technical parameters

Double Embossed Pillow Plate Single Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mm Pillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mm Pillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mm Pillow Plate 1.5mm+4.0-10mm

Application
1. Conciliatory tempering of foods.
2. Heat transfer or heat recovery from polluted media and media with particles.
3. Additional functions, such as flow breaker in agitator vessels, carrier platforms for fryers and dryers, container or vibrating conveyor troughs, radiation panels.

Titanium Steam Dimple Jacket Heat Exchanger High Heat Transfer Coefficient 0

Titanium Steam Dimple Jacket Heat Exchanger High Heat Transfer Coefficient 1







Company Profile

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.



FAQ

1. How do you protect the quality?

As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.

2. What is your advantage compared with your competitors?

Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.

3. Is your price competitive?

My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.

4. Will you dispatch technicians for installation and commissioning?

Yes, we will upon required.

5. Do you have OEM service? Do you supply the parts?

Yes, we do, as long as you provide us your drawing and detailed requirements.

6. Do you have agents or service centre abroad?

We have some partnership in several countries as Indonesia, Brazil, USA.

7. How can we visit your factory?

If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.

8. Can we visit your end user or contact them?

Yes, we will provide you the name list, and arrange the visit after their approval.
