Titanium Steam Dimple Heated Jacket Plate Heat Exchanger for Beer
Brief introdction

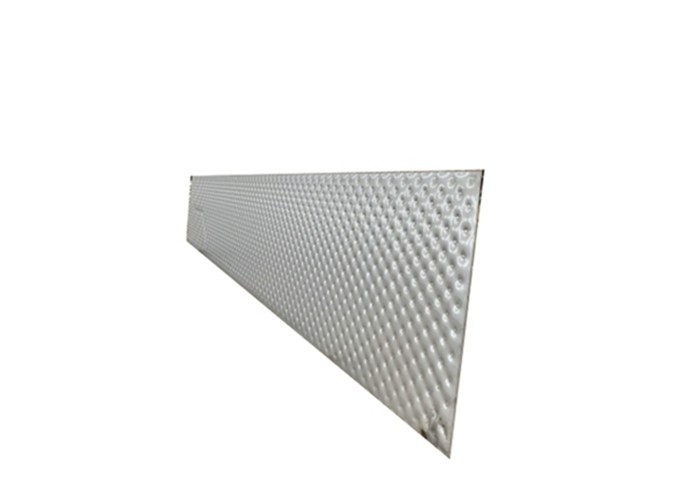

The Pillow Plate are heat exchanger plates consisting of laser welded two stainless steel sheets. The external circuit of this device is welded in a complete laser way to create a pressure limit. The contour is welded on the edges of the Pillow Plate due to this process a tight part is created.

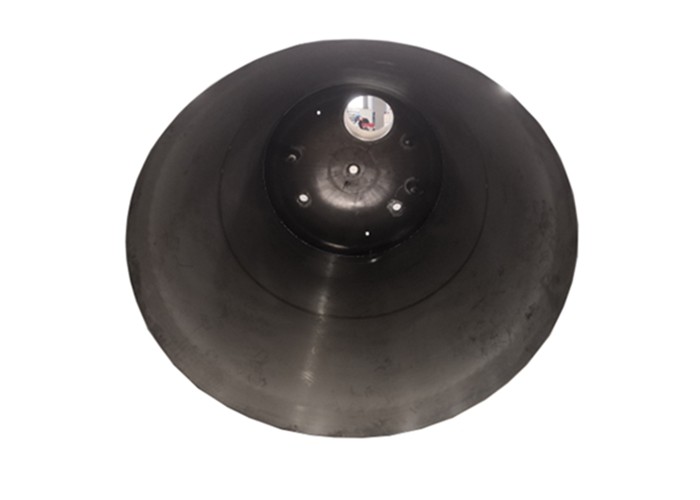

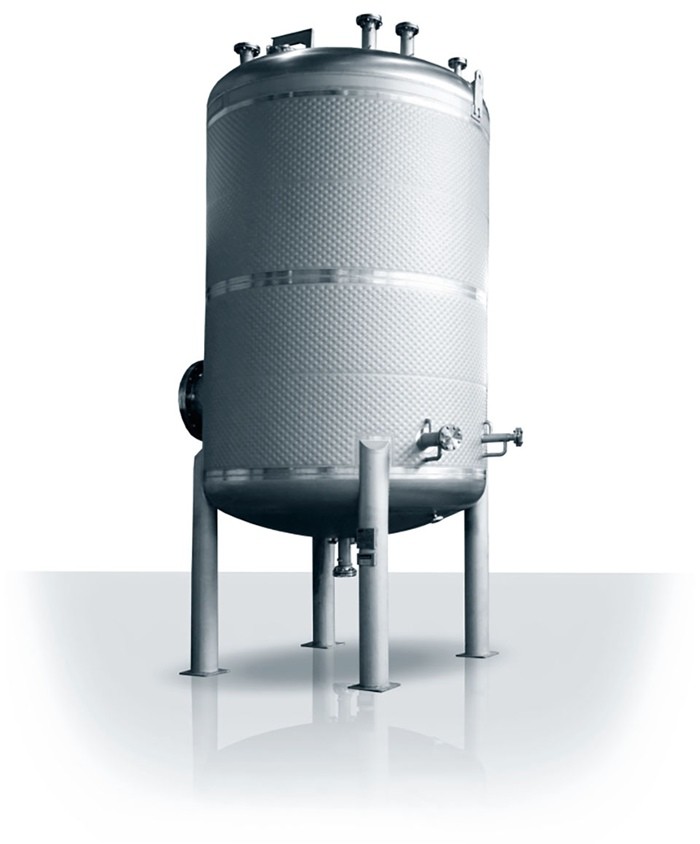

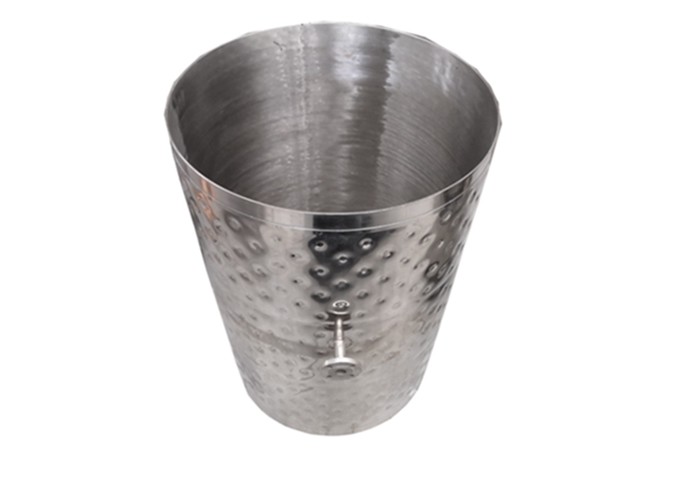

The “pillow” itself is pumped hydraulically, which guarantees the reliability and safety of the filling process. During inflation, a pressure is applied to the steel sheets, which allows for deformation of the material and the creation of a cavity for the use of a heat exchange medium. After this stage, the plates are formed into cylindrical elements and they are joined with each other, as well as welding of flanges and conical and pressed ends.
Features
1. Compact structure
2. High heat transfer coefficient
3. It is not easy to scale.
4. Not easily blocked
5. High temperature and high pressure resistance
6. Fully welded structure
7. Easy to clean
8. Lower flow resistance
9. Unique three-dimensional surface runner
Technical parameters
| Double Embossed Pillow Plate | Single Embossed Pillow Plate |
| Pillow Plate 1.0mm +1.0mm | Pillow Plate 1.0mm+2.5mm |
| Pillow Plate 1.2mm+1.2mm | Pillow Plate 1.2mm+4.0-10mm |
| Pillow Plate 1.5mm+1.5mm | Pillow Plate 1.5mm+4.0-10mm |
Application
1. Conciliatory tempering of foods.
2. Heat transfer or heat recovery from polluted media and media with particles.
3. Additional functions, such as flow breaker in agitator vessels, carrier platforms for fryers and dryers, container or vibrating conveyor troughs, radiation panels.
Company Profile
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
FAQ
1. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.
2. What is your advantage compared with your competitors?
Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.
3. Is your price competitive?
My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.
4. Will you dispatch technicians for installation and commissioning?
Yes, we will upon required.
5. Do you have OEM service? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
6. Do you have agents or service centre abroad?
We have some partnership in several countries as Indonesia, Brazil, USA.
7. How can we visit your factory?
If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.
8. Can we visit your end user or contact them?
Yes, we will provide you the name list, and arrange the visit after their approval.
