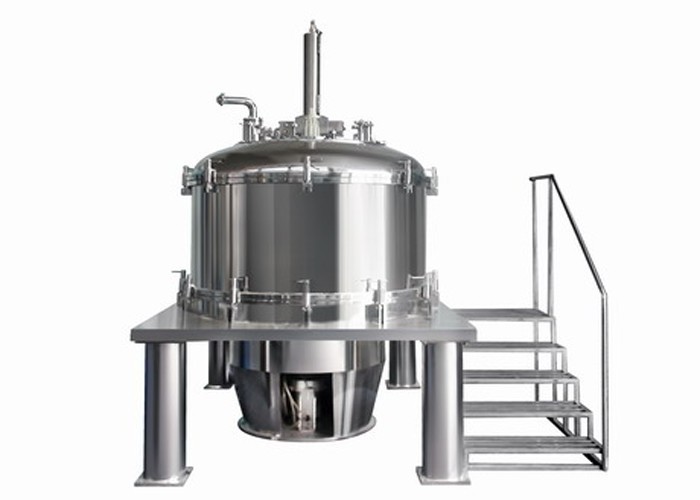

Flat Structure PPSBD Vertical Basket Centrifuge Machine

Flat Structure PPSBD Vertical Basket Centrifuge Machine

  • High Light

    PPSBD vertical basket centrifuge


    vertical basket centrifuge machine


    GMP basket centrifuge machine

  • Product Name
    Ertical Bakset Automatic Scraper Discharge Centrifuge
  • Operation
  • Grade
  • Collocation
    Hydraulic System
  • Warranty
    1 Year
  • Application
    Starch, Calcium Carbonate, And Others
  • Certification
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
    USD30000-80000/SET FOB SHANGHAI
  • Packaging Details
    Standard export package,
  • Delivery Time
    60-90 days after down payment
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    300 sets/month

Flat Structure PPSBD Vertical Basket Centrifuge Machine

Model PPSBD vertical basket Automatic Scraper discharge centrifuge


Working Principle

PPSBD series centrifuge meet he GMP standard & the environment-protecting requirement. The flat structure is adopted, high-viscosity damping absorber is equipped, and there is no foundation. The motor is driven by the VFD, so the belt wheel drives the basket to have the high-speed rotating around its axis, and the centrifugal force field is formed. When raw material enters the centrifugal field in the basket, is forced to be distributed on the basket wall, the liquid can go through the filter, gets to the housing space, and will be discharged from the bottom outlet, while the solid will be remained in the basket. After the de-watering, the basket’s speed is slowed down, the solid phase will be removed by the scraper, and be discharged from the outlet in the basket’s bottom.


Technical parameters

Model/Item Basket volume(L) Loading Capacity(kg) Max. Speed(r/min)

Motor power


Size (including shock absorb) (mm)
PPSBD60S 45 60 1800 5.5 1700*1200*1700
PPSBD135S 100 135 1500 7.5 1700*1400*1960
PPSBD180S 140 180 1080 15 1968*1500*2060
PPSBD250S 190 250 1200 15 1968*1200*2400
PPSBD320S 260 320 970 18.5 2280*1800*2350



1. The full-closed structure can be used in those toxic, inflammable or explosive site.
2. The machine is PLC controlled, with the variable-frequency speed regulator and the braking resistance and the

hydraulic or pneumatic device, the machine can be automatically or manually operated.
3. Processes of start, the feeding, the de-watering, the washing and the discharging are all completed automatically. The
machine can be thoroughly cleaned, and it’s safe and reliable, which meets the GMP standard.
4. The hydraulic scraping system is made of stainless steel, is driven by the closed hydraulic ram, and can be contacted

with the liquid directly.


Apply to separating the suspension containing particles, but also fibers, especially the highly sticky, containing micro particles, poisonous and flammable materials, like antibiotics, vitamins, and minerals, salts, gourmet powders, foodstuff additives, amylum, sugar, chemical flavors, thiamin, plasters, Glauber's salt, bluestone, potassium chloride, borax, dyestuffs, pigment, resin, pesticides, and environmental protection. The centrifuge is highly automated, has large capacity and can be remote-controlled.

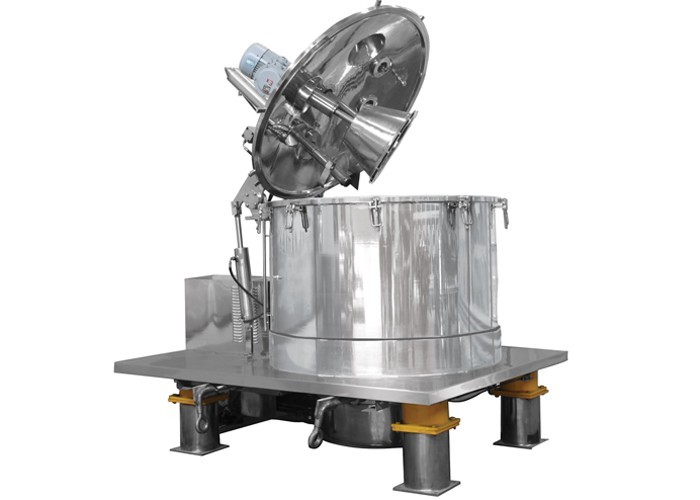

Flat Structure PPSBD Vertical Basket Centrifuge Machine 0

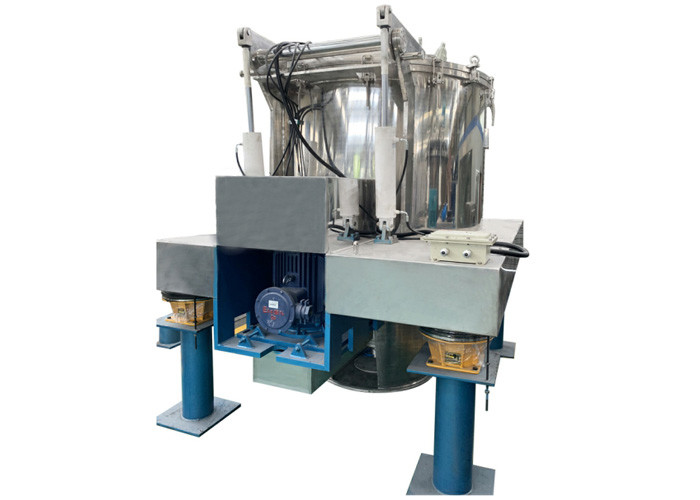

Flat Structure PPSBD Vertical Basket Centrifuge Machine 1

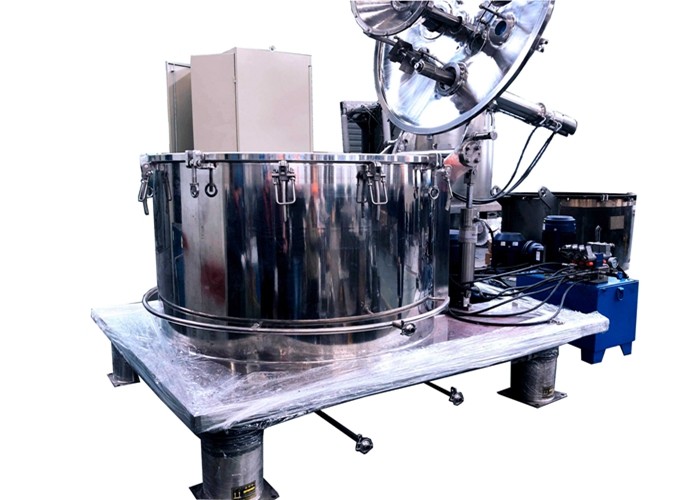

Flat Structure PPSBD Vertical Basket Centrifuge Machine 2



Our services

1. 12 months guarantee period from machine arriving date.

2. Our technicians could be dispatched for overseas service.

3. 7*24 hours technical consultation.

4. Your workers could get trained both in our factory and yours.

5. Routine tracing till the machine work properly will be done timely.

6. Your suggestions or any comments & reflection would be treated in priority.

7. Marketing team will visit you during our visit in your country if you require.
