MVR Pillow Plate Heat Exchangers

High efficient Plate heat exchanger in MVR /Mechanical Vapor Recompression Falling Film Evaporator

Industrial mechanical vapour recompression MVR

A heat pump uses energy to transfer heat from a lower temperature source to a higher temperature demand using additional energy. For industrial heat pumps, the heat source is process waste heat.



Mechanical vapour recompression (MVR) is an open heat pump system in which the pressure and temperature of the vapour, together with the corresponding saturation temperature, are increased by means of compression. Steam recompression is a specific variation of MVR. Low-pressure steam exhaust from industrial operations, such as evaporators or cookers, is usually vented to the atmosphere or condensed in a cooling tower, while other plant operations on the same site may require intermediate-pressure steam. Instead of expanding high pressure steam across a throttling valve to meet these needs, low-pressure waste steam can be mechanically compressed to a higher pressure so that it can be reused. Steam recompression relies upon a mechanical compressor to increase the temperature of the latent heat in steam to render it usable for process duties. The advantage lies in the fact that the required compression energy is very small compared to the amount of latent heat present in the recycled steam.



The energetic performance of steam recompression is expressed in the coefficient of performance (COP). The COP gives the ratio of the net recovered heat and the energy used by the compressor. In this case, the net heat is the steam production including the additional steam yield by water injection. Typical economical and energy-efficient applications have a minimum COP of 3.5. Some applications of MVR have a COP of 10 or even higher.

The key elements for a high COP are the following:

A low ratio of the absolute steam pressures. A guideline for the maximum ratio is 6, but in daily practice the ratio is about 3.

A minimum capacity. A guideline is a minimum of one tonne of steam per hour.Water injection after compression.



Characteristics

Energy saving: high thermal efficiency, energy saving, lower energy consumption, the energy consumption of

1t water evaporation is about 1/5 to 1/3 of conventional evaporator.

Environmental protection: completely get rid of dependence on steam boiler, the mechanical vapor recompression evaporator could be start-up by electricity.Without boiler, don't need to burn coal, a small amount of steam, a small amount of cooling water.

The operation cost is low: due to low energy consumption, the operating cost of the whole evaporator is only 1/3 to 1/2 of traditional evaporator.

Small area: the system has high dense mechanical structure, so the cover area is less than 50% of traditional evaporator.

Mild evaporation: low temperature evaporation, the heat transfer temperature difference is low, so the system is not easy to scale.

High degree of automation: high degree of automation, simple operation, easy to operate.



Mechanical Vapor Recompression MVR Evaporator consumption compared with traditional evaporation equipment calculated by evaporating 1T water

Name Steam Electric Power Total Cost (RMB)
Evaporation Capacity (kg/h) Consumption (T) Cost (RMB) Consumption (kw) Cost (RMB)
Single Effect Evaporator 1.1 220 3 2.1 222.1
Double Effect Evaporator 0.55 110 3 2.1 112.1
Three Effect Evaporator 0.4 88 3 2.1 90.1
MVR Evaporator 0.02 4.4 30 21 25.4



AREAS OF APPLICATION

Mechanical vapor recompression was initially used almost exclusively in the dairy industry. In the following years, its areas of application were expanded, and now include the dairy industry, brewing industry, sugar industry, saline industry, pulp industry, chemical industry, alcohol industry etc.



Principle flow chart

MVR Pillow Plate Heat Exchangers 0

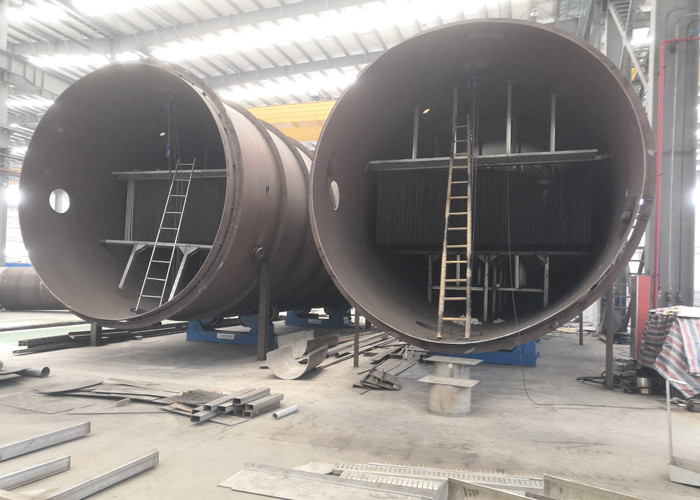

Our workshop site
