ISO Double Wall Embossed Dimple Plate Heat Exchanger

ISO Double Wall Embossed Dimple Plate Heat Exchanger

  • High Light

    ISO dimple plate heat exchanger

    ,

    Embossed dimple plate heat exchanger

    ,

    ASMI Pillow Plate Heat Exchangers

  • Product Name
    Dimple Plate Heat Exchanger
  • Liquid Flow Rate
    Depend
  • Color
    Sliver
  • Cooling Capacity
    Customizable
  • Certification
    CE
  • Key Selling Points
    Competitive Price
  • Application1
    Stainless Steel Tank, Bucket
  • Feature
    Energy Saving
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO
  • Model Number
    Customized
  • Minimum Order Quantity
    100m2(except for the sample)
  • Price
    USD100/m2-USD300m2
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    30 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    TT,.LC, Western Union

ISO Double Wall Embossed Dimple Plate Heat Exchanger

Double wall embossed beer cooling plate pillow dimple plate heat exchanger manufacturer



Brief introduction

Pillow plate heat transfer surface is a panel-type heat exchanger that can be made in an endless range of shapes and sizes. It is ideally suited for applications involving high pressures and temperature extremes.

The dimple plate design provides for highly efficient heat transfer performance. Its laser-welded and inflated channels induce fluid turbulence to attain high heat transfer coefficients



Features

1. Quickly chills your wort to pitching temperature
2. Helps prevent wort oxidation
3. Lowers dimethyl sulphoxide levels
4. Greatly reduces bacteria



Technical parameters

Product Name Pillow plate heat exchanger
Material Stainless Steel
Color Nickel White
Standard DIN GB ISO JIS BA ANSI ASMI
Grade SUS201,SUS304,SUS316,DSS2205
Overview double pillow embossed plate material ratios

Pillow plate 0.8mm+0.8mm pillow plate 1.0mm+1.0mm

Pillow plate1.2mm+1.2mm

Pillow plate1.5mm+1.5mm

Pillow plate2.0mm+2.0mm

Overview single pillow embossed plate material ratios Pillow plate 0.8 mm + 2.0 mm base plate
pillow plate 1.0 mm + 2.5 mm base plate
pillow plate 1.2 mm + 4.0 tot 15 mm base plate
pillow plate 1.5 mm + 4.0 tot 15 mm base plate
pillow plate 2.0 mm + 5.0 tot 15 mm base plate

Application
1. Conciliatory tempering of foods.
2. Heat transfer or heat recovery from polluted media and media with particles.
3. Additional functions, such as flow breaker in agitator vessels, carrier platforms for fryers and dryers, container or vibrating conveyor troughs, radiation panels.

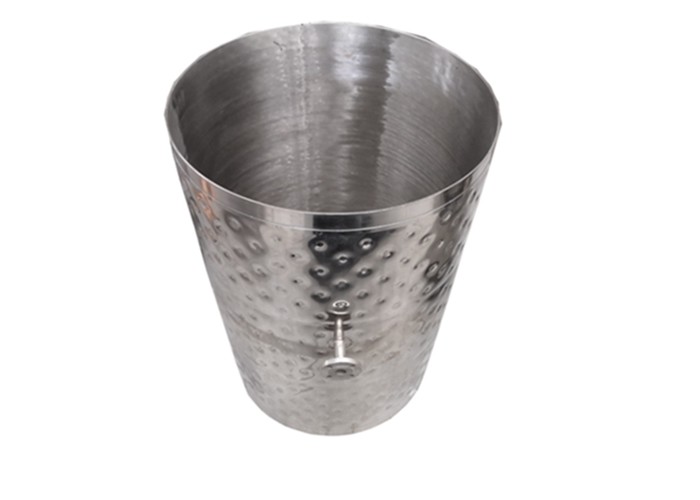

ISO Double Wall Embossed Dimple Plate Heat Exchanger 0

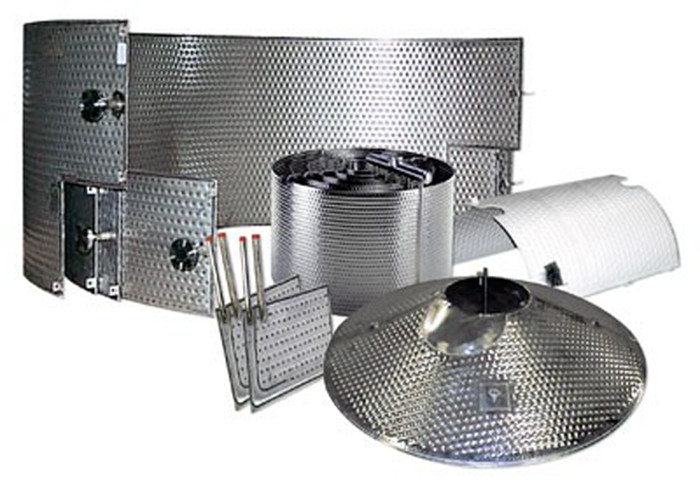

ISO Double Wall Embossed Dimple Plate Heat Exchanger 1

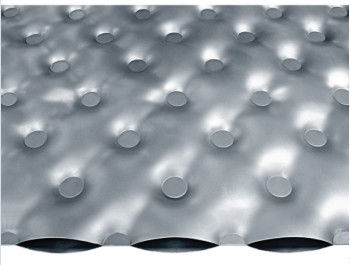

ISO Double Wall Embossed Dimple Plate Heat Exchanger 2

FAQ

1. How do you protect the quality?

As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.

2. What is your advantage compared with your competitors?

Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.

3. Is your price competitive?

My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.

4. Will you dispatch technicians for installation and commissioning?

Yes, we will upon required.

5. Do you have OEM service? Do you supply the parts?

Yes, we do, as long as you provide us your drawing and detailed requirements.

6. Do you have agents or service centre abroad?

We have some partnership in several countries as Indonesia, Brazil, USA.

7. How can we visit your factory?

If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.

8. Can we visit your end user or contact them?

Yes, we will provide you the name list, and arrange the visit after their approval.
