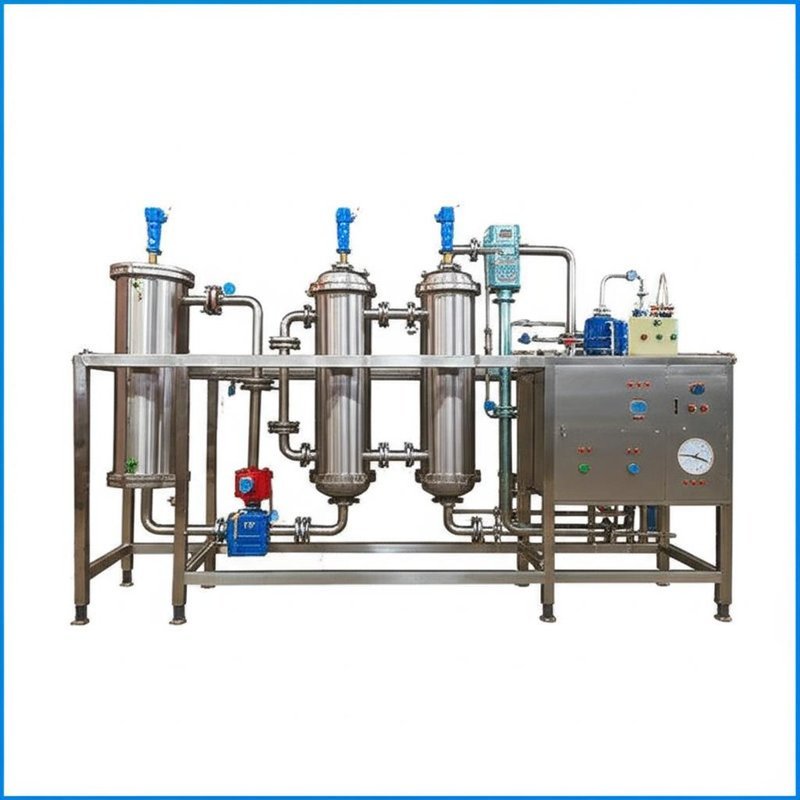

Beverage Forced Circulation Multiple Effect Evaporator

Beverage Forced Circulation Multiple Effect Evaporator

  • High Light

    HANPU forced circulation multiple effect evaporator

    ,

    Beverage forced circulation multiple effect evaporator

    ,

    mee multi effect evaporator system

  • Application
    Beverage Evaporator System
  • Key Word
    Multi Effect Force Circulation Evaporating
  • Power Source
    Steam
  • Core Components
    Compressor
  • Characteristic
    Easy To Operate
  • After-sales Service Provided
    Field Installation, Commissioning And Training
  • Material
    Stainless Steel 304/316L/Titanium Alloy
  • Capacity
    Customzied
  • After Warranty Service
    Video Technical Support, Online Support, Spare Parts
  • Warranty Of Core Components
    12 Months
  • Place of Origin
    Jiangsu province,China
  • Brand Name
    HANPU
  • Certification
    ISO9001,CE
  • Model Number
    HP-MEE
  • Minimum Order Quantity
    1 set
  • Price
    300,000USD~1,000,000USD/SET
  • Packaging Details
    Bulk with strong strap
  • Delivery Time
    90 days
  • Payment Terms
    T/T, L/C, D/A, D/P, Western Union
  • Supply Ability
    1 set/ 3 months

Beverage Forced Circulation Multiple Effect Evaporator

Multi Effect Force Circulation Evaporating of Beverage Evaporator System



Multi Effect Evaporator

In a single effect evaporator steam is supplied for heating the liquid. The total heat is not transferred from the steam. So the rest of the heat is wasted.To use the heat efficiency, connections evaporator are made so that vapor from one effect can serves as the heating medium for the next effect.

The dilute feed enter the first effect where it is partially concentrated; then it flows to second effect for additional concentration and soon. The final concentration is done in last effect.

In the first effect raw steam is fed in which the vapor pressure is highest P1,The second effect has p2.

P1>p2. >p>.…..P,n is the number of effects. This pressure gradient is maintained by the vacuum pump and the condenser.

Depending on lower in vapour pressure,boiling point of liquid also lowered as liquid move.



Structure

Multiple-effect falling film evaporator consists of (first-effect, second-effect, third-effect)separators and evaporators and pre-heaters,condenser and vacuum pump, feeding pump,circulation pump, discharge pump, condensed water pump, pipeline and fittings, etc. It is equipped with vacuum gauge, thermometer,pressure gauge,and so on.



Characteristic

1. Evaporation capacity: From 500Kg/h to 80T/h
2. Material: Stainless steel 304 or Stainless steel 316L;
3. Full closed process, fast and low temperature evaporation;
4. Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe. It's easy for cleaning;
5. Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump. This would make full use of the heat and the evaporation temperature is low.
6. Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale, short concentration time.
7. This equipment can realize automatic production, intellectual system management.
8. Can be designed into different technological process according to the different characteristics of the materials and different users' requirements.



Application

Multiple Effect Evaporators are widely used in the following areas as per the requirement.



Effluent Treatment: Industries like Chemical, Pharmaceutical, Textile, Dyeing, Breweries, Automobiles, Milk, Food industries etc, generates process effluents which are harmful to the environment. These effluents generally consist of water in huge amount and waste(contaminants). By evaporating the water from the effluent using MEE system results in the recycling of water.

Desalination: Reject of RO (Reverse Osmosis) have a huge amount of water. With MEE the water can be recycled.

Chemical Industry/ Pharma Industry: For the production of product the desired concentration is required or desired material need to be separated. Using MEE system desired concentration is achieved.



Milk Industry: Milk can be concentrated in the MEE system.

Sugar Industry: Sugar cane juice can be concentrated with MEE system.

Food industries: Tomato juice concentration, Sausages, Fruit juice concentration can be done in MEE system.

Advantages: Evaporation can be achieved with low consumption of heat source.



Typical three effect falling film evaporator specifications and technical parameters:

Parameter/

Specifications

HP-3.0 HP-4.5 HP-6.0 HP-9.0 HP-12.0 HP-15 HP-20 HP-24 HP-30 HP-50

Evaporation

capacity(kg/hr)

3000 4500 6000 9000 12000 15000 20000 24000 30000 50000

Consumption of

raw steam(kg/hr)

900 1350 1800 2700 3600 4500 4500 7200 9000 15000

Vacuum degree of

each effect

First

Effect

0


Second

Effect

448
(mmHg)

Third

Effect

640

Evaporation temperature of

each effect

First

Effect

99


Second

Effect

76


Third

Effect

53

Steam pressure for

evaporation(MPa)

0.6-1.0(Absolute pressure)
Solid content in feed(%) 6-7(Corn pulp example)
Solid content outlet(%) 42-48(Corn pulp example)
