Large Scale Automatic Discharge Salt Making Machine From Seawater Pusher Centrifuge

Large Scale Automatic Discharge Salt Making Machine From Seawater Pusher Centrifuge

  • High Light

    CE Ice Bank Cooling System

    ,

    easy cleaning Ice Bank Cooling System

    ,

    Craft Beer ice bank chiller

  • Name
    Sea Salt Making Centrifuge Machine
  • Basket Diameter
    560/630mm
  • Application
    Chemical Industry
  • Function
    Remove The Water From Salt Mixture
  • Certificate
    ISO
  • Warranty
    1 Year
  • Output Capacity
    20t/hr
  • Bearing
    SKF
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    CE ISO
  • Model Number
    HR630
  • Minimum Order Quantity
    1sets
  • Price
    USD18,000-USD65,000
  • Packaging Details
    standard exported wooden case
  • Delivery Time
    45-60 working days
  • Supply Ability
    50sets per months

Large Scale Automatic Discharge Salt Making Machine From Seawater Pusher Centrifuge

Large Scale Automatic Discharge Salt Making Machine From Seawater Pusher Centrifuge

Description



PP Series Double Stage Centrifuge is a kind of perforated basket centrifuge, both continuous and effective.

The mixture to be separated is fed through the feeding pipe and the distributor continuously and evenly into the first stage basket.

Most of the mother-liquor in the feed, acted on by centrifugal force, departs through the sieves into the liquor collecting casing where it will be discharged out of the machine.

The first stage basket rotates and reciprocate, pushing the formed product cake into the second stage basket .

The cake can have sufficient retardation in the centrifuge with being acted on by more centrifugal force, and therefore, thdesired

humidity of the cake can be guaranteed.

Afterwards, the cake is continuously discharged out of the basket. In case of high purity for the solid product, the

effective washing canbe carried out in the centrifuge. If necessary, the washing agent and the mother-liquor can be discharged separately.



Specification



Item



HR400-N HR500-N HR630-N HR800-N HR1000-N
Inner/Outside basket diameter(mm) 337/400 410/500 560/630 720/800 920/1000

Length of filtering(mm)

(Inner/Outside basket)

160/160 180/180 240/240 300/300 240/320
Inner/Outside basket Speed(r/min) 1500-2200 1200-2000 1000-1800 800-1600 650-1250
Separating factor 503-1083 402-1118 352-1140 286-1145 236-875



Feature

Pusher centrifuge is a kind of filter centrifuge that adopts continuously feeding and intermittently pushing out.It can carry all procedures as feeding,separating,washing,discharging and etc on a full speed. It has the following distinctive features:

1. It can be operated continuously and steadily,which capacity is great.

2. Because of its high separating factor, it can be dehydrated fully in the two drums.So the filter cake will contain less moist.

3. While there is a high demand to the purity of the products the centrifuge can wash them and drain out the washing liquid and the mother liquid separately.

4. Low and even consumption of the power.



Application

Pusher centrifuges are suitable for separating the suspension with solid particle size of more than 0.08mm, with the concentration rate of over 40%, and suitable for chemical industry, fertilizer, salt and alkali production.

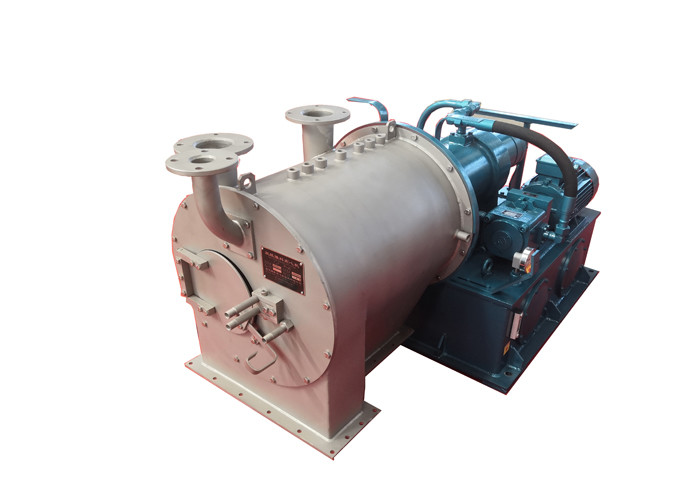

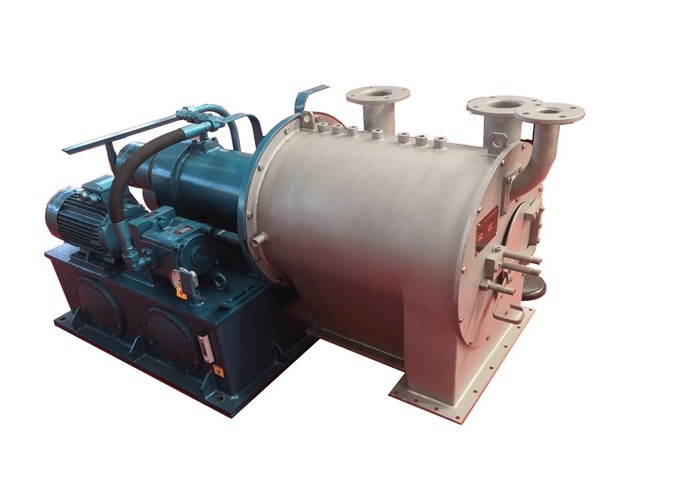

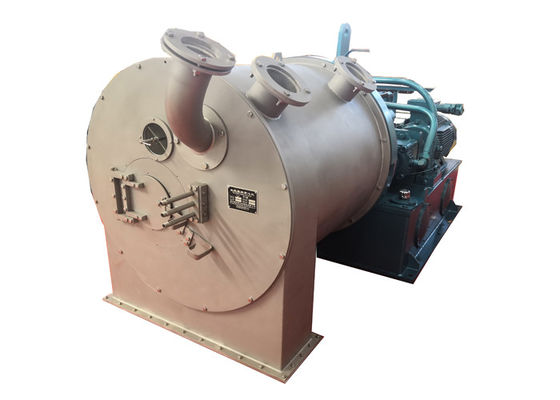

Large Scale Automatic Discharge Salt Making Machine From Seawater Pusher Centrifuge 0Large Scale Automatic Discharge Salt Making Machine From Seawater Pusher Centrifuge 1





Service

1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.

9. Marketing team will visit you during our visit in your country if you require.
