Food Grade 30TPH Table Salt Processing Plant And Machinery

Food Grade 30TPH Table Salt Processing Plant And Machinery

  • High Light

    380V table salt processing plant and machinery

    ,

    30TPH table salt processing plant

    ,

    SS304 salt making machine

  • Applicable Industries
    Salt Manufacturing Industry
  • Capacity
    3-30T/H
  • Key Selling Points
    Factory Price
  • Name
    Food Grade Salt Production System
  • Final Products
    Table Salt
  • Voltage
    220V. 380V. 480V
  • Type
    Turn Key Production Line
  • Plate Material
    SS304/316L/Ti
  • Core Components
    Engine, Bearing, Gearbox, Motor, Pump
  • After Warranty Service
    Online Support,Video Technical Support
  • Place of Origin
    Jiangsu Province,China
  • Brand Name
    HANPU
  • Certification
    CE,ISO9001
  • Model Number
    HP-SL
  • Minimum Order Quantity
    1 set
  • Price
    500,000-2,000,000USD
  • Packaging Details
    bulk with strong strap
  • Delivery Time
    90 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    1 set / 3 months

Food Grade 30TPH Table Salt Processing Plant And Machinery

Hot Sale Factory Price Food Grade Table Salt Production System Capacity 3-30T/H



High quality salt production line

Customized Salt processing line machinery

Salt washing plant, salt crush and wash plant, salt impurity extraction plant etc are defined as a mechanical refining system. The main idea is to break the big salt granules to expose as many as possible the impurities and wash out the impurities from the surface of the granules.



The updated break system is roller pulverizes with roller surface specially processed so that it works mainly cutting the granules to get the less salt powder. And we combine the latest technology of screw washing + stirring washing+ elutriating counter-current washing which can most effectively wash out the impurities and have less loss of NaCl. After the salt is crushed and washed, it goes to drying system to make it dry to required moisture content Iodine and/or free-flow agent is added as per requirement by customers. Sieving system is applied to classify different size of granules as per different application (cooking salt, table salt, industrial salt etc) after sieving the salt is packed either into big bags of 50kgs (or any other size required by clients) and small bags of 250-1000g (or any other size required by customers) the finish salt is dry, white, glossy, free flow.



According to raw salt quality, we have combination of 3crushing+4washing, 3 crushing+3washing, 2crushing+2washing, and dry crushing.



The four washing is as follows

First Screw washing

Second screw washing

Stand-up stirring washing

Countercurrent washing



Three-crushing is as follows

First crushing

Wet crushing

Dry crushing

The combination of wet crushing, dry crushing and different ways of washing has greatly improved the salt quality.

The above operation is subject to adaptation according to the users' different requirements due to the use of crude salt of different quality



Linear Probability Screen Description:

HP series linear probability screen is our company according to the requirements of the salt different screening big and small angle using multilayer sieve surface, for a variety of different size materials produced at the same time. The series of sieving machine adopts double synchronous vibration motor, vibration force size is adjustable, with uniform cloth, high screening efficiency, stable operation and maintenance is convenient wait for a characteristic to replace the network. It can be used for salt, food, chemical, pharmaceutical, food and other industries of fine, dry sieving powder material.



Linear Probability Screen specificaiton:

Model Screen surface The feeding granularity(mm)

Processing

(t/h)

Power

(KW)

Weight

(t)

Layers Aperture(mm) Angle of inclination
HP-5 2-8 ≤15 5-30 ≤20 5 2×2.2 2.8
HP-10 10 2×3.7 4.3
HP-15 15 2×3.7 4.9
HP-20 20 2×5.5 5.6



Client Raw Salt

Food Grade 30TPH Table Salt Processing Plant And Machinery 0

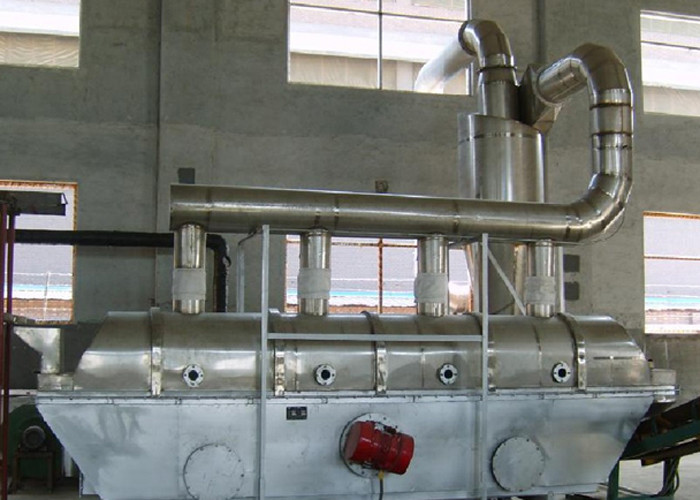

Client production facility

Food Grade 30TPH Table Salt Processing Plant And Machinery 1

Food Grade 30TPH Table Salt Processing Plant And Machinery 2
