High performance Sea Lake salt refinery machines and salt making machine production line
Sea Lake Salt Production Line is a set of equipment that our factory has meticulously developed for crude raw sea salt and lake salt.
Various capacity is available for buyer's different requirement (3-30t/h or customized).
Three washing is as follows:
First Screw washing
Stand-up stirring washing
Countercurrent washing
Three crushing is as follows:
First crushing
Wet crushing
Dry crushing
The combination of first crushing, wet crushing and dry crushing has greatly improved the salt quality. The above operation is adjustable according to the crude salt and user's requirements on finished salt quality.
Advantages:
Finished has high purity, shiny appearance, free liquidity and stable iodine content.
Low loss, the loss of NaCl is under 8%.
Low energy consumption and investment.
Equipment is easy to operate and maintain.
Production flow chart
The whole line including the following machines:
01) Raw salt stock bin
02) Quantitative spiral conveyor
03) Iron remover
04) Belt conveyor
05) Spiral salt washing machine
06) Salt slurry pump
07) Contranatant washer
08) Stirring salt washing machine
09) Tickening machine
10) Double push centrifuge
11) Salt spiral conveyor
12) Iodized machine
13) Vibrating fluid bed drier
14) Cooling fan
15) System induced fan
16) Cyclone
17) System blower
18) Spray dust catcher
19) Host blast furnace
20) Rotary screen
21) Probability vibrating screen
22) Electronic quantitative packing machine
23) Packing machine
24) Air compressor
25) Finished salt stock bin
26) Electrical Cabinet
27) Electric Generator
Other feature of the plant
For less salt loss, washing process is carried out in conjunction with countercurrent washing technology.
Iodine or other additives are added according to customer needs.
After drying, screening process is applied to classify granules in different

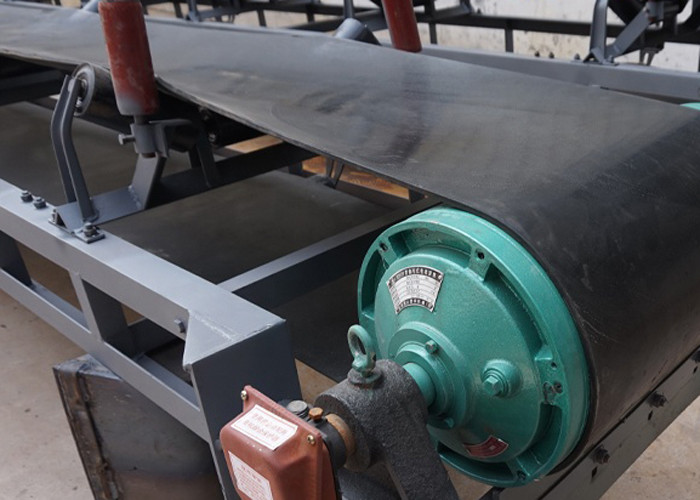

Belt Conveyer Features
Belt conveyer has the advantages of large transportation throughout, simple structure, easy maintaince and part standardization. It is widely used in salt, chemical, food grain industries for transporting of loose materials and packed products. According to the requirements of transportation technology, single conveyer can be operated or more belt conveyers can work together. It can be composed with other transportation equipments in from of horizontal or inclined transportation systems for the operation requirements from different layouts. Transportation speed can be designed as fixation or continuous variable transmission. Belt conveyers can be used at the temperature range of -20℃ +40℃ and transporte material temperature below 50℃.
Belt Conveyer Specification:
| Belt width(mm) | Transportation length(m) | Power(kw) | Transportation speed(m/s) | Transportation capacity(t/h) |
| 400 | 3-25 | 2.2-7.5 | 0.3-2.5 | 3-80 |
| 500 | 3-30 | |||
| 650 | 4-30 | 3-15 | 5-400 | |
| 800 | 4-30 | |||
| 1000 | 8-40 | 5.5-15 | 10-800 | |
| 1200 | 10-40 | 11-30 | 10-1000 |
