The Whole Set of Equipment For Sea Salt Refining/Production Plant Professional Supplier
Sea Salt Refining/Production Description
The crude salt is transported to the screw salt washing machine for the first washing, then crushed by roller crusher to get the salt with suitable size.This kind of salt will be washed by stirring washing machine and countercurrent washing machine for two or three times, and then get purified salt. The next step is to enter the centrifuge to remove most of the water. After this the salt will be dried by vibrating fluid drying bed for the drying to get the finished salt with 0.4% water content. During the salt transportation from centrifuge to vibrating fluid drying bed, there will be an iodized machine to add iodine into the salt. The final step is to packing the finished salt.
Sea salt and lake salt refinery equipment line includes: stainless steel elevator, mixer, conveyor, crusher, salt washing machine, iodize machine, centrifuge and drying machine, dust remover, packing machine and etc.
For the capacity of the production line, we can produce based on customers' requirement. The capacity is 3-30ton/hour.
Advantage of our equipment line:
The high quality refined salt product has high purity, shiny appearance, good free liquidity and stable iodine content.
Low loss, the loss of NaCl is under 10%.
Low energy consumption and investment.
Equipment has long service life, easy to operate and maintain.
The whole line includes the following equipment:
1. Salt feed hopper
2. Rationed screw conveyor
3. Pikcing belt machine
4. De-ironing separator

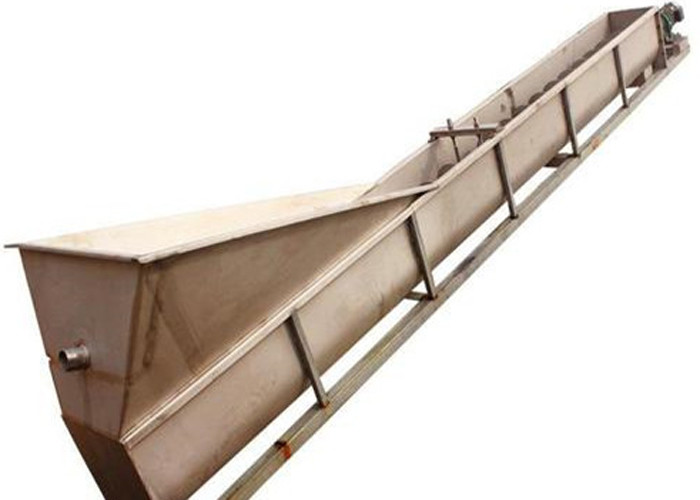

5. Screw washer

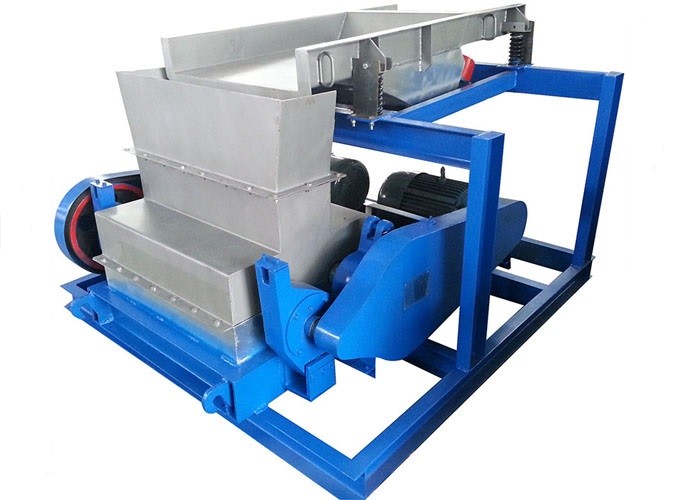

6. Roll crsher
7. Agitating salt wahser
8. Slurry pump
9. Agitating tank
10. Brine tank
11. Thickener
12. Centrifuge
13. Screw conveyor
14. Iodine adding machine
15. Vibration fluidized bed dryer
16. Cyclone dust extractor
17. Spray washer
18. Bucket elevator
19. Belt conveyor
20. Sewing sacks
21. LCD electronic scale
22. Chain grate coal-fired hot blast stove
23. Slag discharge machine
24. Coal conveyor
25. Electric control cabinet
26. Packing machine
Salt Refinery Process Chart

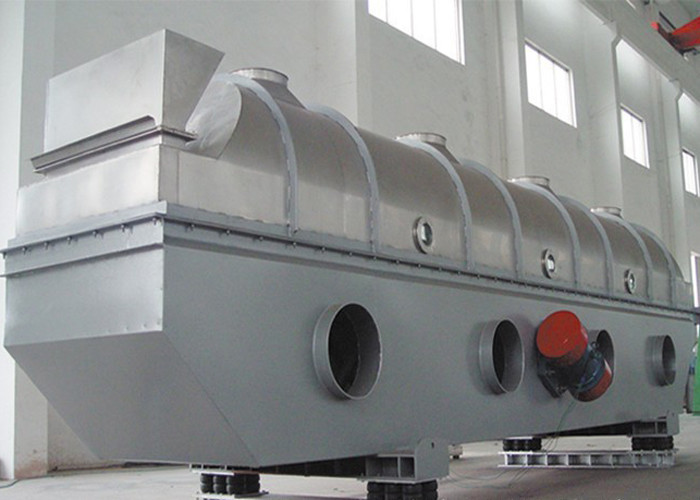

Main Equipment-Vibrating Fluidized Bed Dryer Features
HP series vibration fluidized bed dryer is driven by the vibration force caused by vibration motor. The material in a given direction under the action of the force of leaping forward, at the same time a bed type cloth uniform wind hot air in a fluidized state of material, material particles in contact with the hot air fully, intense heat and mass transfer process, high thermal efficiency, cavity in the state of the negative pressure, moist air is being exhausted from induced draft fan, dry material is being exhausted from port layout, so as to achieve the ideal effect. This machine is widely used in salt industry of powdery and granular materials such as operation of drying, cooling and humidifying.
Vibrating Fluidized Bed Dryer Specification
| Model |
Fluidized bed area (m × m) |
Reference of water evaporation (kg/h) |
Rated power (kw) |
| HP - 3 × 4.5 | 0.3 × 4.5 | 40 - 70 | 1.5 × 2 |
| HP - 4 × 4.5 | 0.4 × 4.5 | 65 - 100 | 2.2 × 2 |
| HP - 6 × 4.5 | 0.6 × 4.5 | 80 - 130 | 2.2 × 2 |
| HP - 6 × 6.0 | 0.6 × 6.0 | 120 - 180 | 3.0 × 2 |
| HP - 6 × 7.5 | 0.6 × 7.5 | 150 - 220 | 3.7 × 2 |
| HP - 9 × 6.0 | 0.9 × 6.0 | 160 - 280 | 3.7 × 2 |
| HP - 9 × 7.5 | 0.9 × 7.5 | 180 - 300 | 3.7 × 2 |
| HP - 12 × 7.5 | 1.2 × 7.5 | 300 - 400 | 5.5 × 2 |
| HP - 15 × 7.5 | 1.5 × 7.5 | 350 - 580 | 7.5 × 2 |

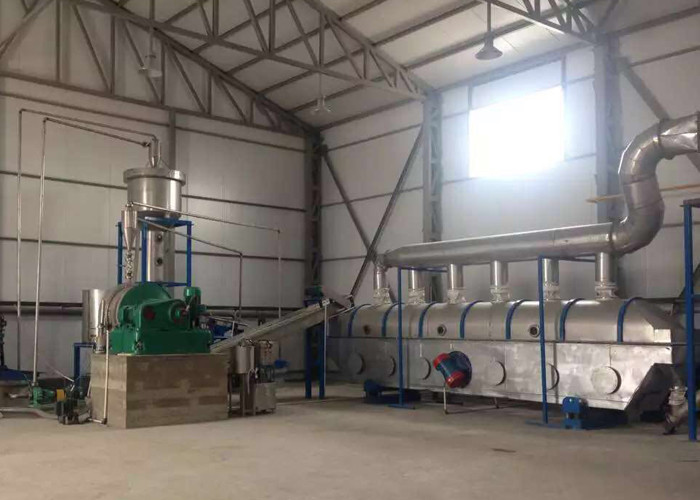

Our Client site
Our products are sold all over the world, you can rest assured.
