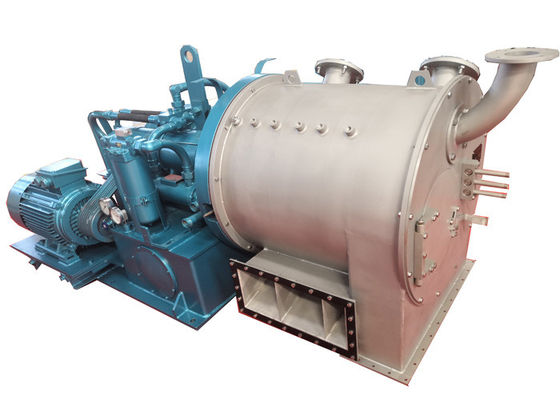

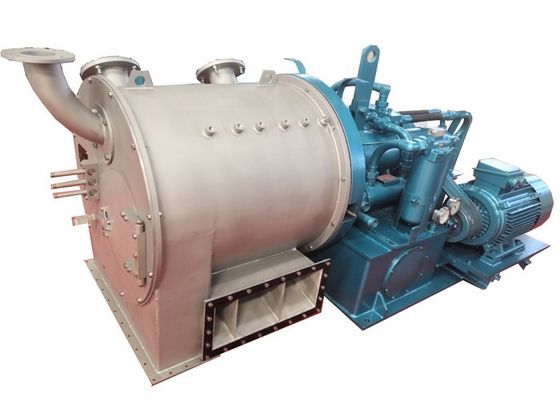

Fully Automatic HR Stage Pusher Centrifuge Salt Making Machine
Technical parameters
| Item |
HR400-N |
HR500-N |
HR630-N |
HR800-N |
HR1000-N |
| Inner/Outside basket diameter(mm) |
337/400 |
410/500 |
560/630 |
720/800 |
920/1000 |
| Inner/Outside basket Speed(r/min) |
1500-2200 |
1200-2000 |
1000-1800 |
800-1600 |
650-1250 |
| Length stroke(mm) |
40 |
50 |
50 |
50 |
50 |
| Frequency of stroke(time/min) |
30-80 |
50-70 |
30-80 |
30-80 |
20-70 |
| Main motor power(Kw) |
11 |
30-45 |
37-55 |
55-75 |
75-90 |
| Production capacity(t/h) |
1-8 |
5-15 |
8-25 |
15-40 |
18-50 |
| Weight(Kg) |
2480 |
3500 |
4000 |
6000 |
12000 |
Product description
Double Stage Pushing Centrifuge is a type of continuously operating filtering centrifuge, it has the advantages of automatic operating, continuous discharging, high capacity, low power, without peak load, fast drying, small pieces of grain, steady working, small vibration intensity, etc
Application
Popular Salt Refining Plant Centrifuge for the horizontal two-stage pusher, continuous operation of the filter centrifuge. At full speed under all operating processes, such as feeding, separating, washing, drying and unloading. Separation of concentrated suspensions containing particles in crystalline or short fibrous (Crystalline particle size of 0.1-10mm short fibers less than 30mm), widely used in chemical, fertilizer, salt, pharmaceutical, food, light industry, etc. industrial sectors.The centrifuges with automatic continuous operation, continuous slagging, high production capacity, and not easy to break the grain residue can be washed and other traditional advantages, but also has high residues production, high solids recovery, low residues of moisture content, lowenergy consumption. And parts of aircraft contact with the material of stainless steel, good corrosion resistance.
Examples of application materials: sodium chloride, sodium sulfate, sodium dichromate, ammonium sulfate, boric acid, cellulose acetate, cellulose nitrate, urea, of PVC, potassium chloride, potassium sulfate, potassium carbonate, phosphate, etc.
Advantages
- Fully automatic continuous operation,low manual labor intensity
- Compact structure,small floor space,convenient installation and maintenance
- Large capacity production and low moisture content of filter cake.
- The cloth is uniform and the vibration is small.
- The filter cake can be washed.
Our Service
- 12 months guarantee period from machine arriving date.
- Abundant spare parts in stock are available to provide.
- Our technicians could be dispatched for overseas service.
- 7*24 hours technical consultation.
- Your workers could get trained both in our factory and yours.
- Routine tracing till the machine work properly will be done timely.
- We will remind you to do the normal maintenance.
- Your suggestions or any comments & reflection would be treated in priority.
- Marketing team will visit you during our visit in your country if you require.
