Continuous Scraper Horizontal Peeler Centrifuge Automatic Discharge For Strach Separation

Continuous Scraper Horizontal Peeler Centrifuge Automatic Discharge For Strach Separation

  • High Light

    continuous scraper horizontal peeler centrifuge

    ,

    automatic discharge horizontal peeler centrifuge

    ,

    strach separation horizontal peeler centrifuge

  • Name
    Horizontal Peeler Centrifuge
  • Machine Type
    Automatic Centrifuge
  • MOC
    SS304,316 As Option
  • Operation
    Continuous Automatic
  • Collocation
    Hydraulic System,Level Detector
  • Equipped
    PLC System, Inverter
  • Application
    Starch, Calcium Carbonate, And Others
  • Voltage
    Customized
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO,CE
  • Model Number
    PPCC
  • Minimum Order Quantity
    1 set
  • Price
    USD60000-100000/set FOB Shanghai
  • Packaging Details
    Standard export package,
  • Delivery Time
    60-75 days after down payment
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    300 sets/month

Continuous Scraper Horizontal Peeler Centrifuge Automatic Discharge For Strach Separation



High Capacity continuous Scraper Automatic Discharge Peeler Centrifuge for Strach separation



Properties and uses

  PPCC Series automatic siphon centrifuge is a solid-liquid separation equipment which adopts continuous operation and intermittent discharging.Its production capacity and separation effect is better than PPCF centrifuge.

This machine is controlled by PLC and regulates speed by frequency control,braking system applies dynamic braking and regenerative braking,the whole separation process is automatic cycle operation and manual operation mode is applicable to be changed over from automatic operation mode.

PPCC Series automatic siphon centrifuge is more suitable for separating such product as small solid phase granularity and which is hard to be separated.It is widely used in pharmaceutical,Chemical and foodstuff industry(e.g.starch,calcium phosphate.Sodium bicarbonate.)



Technology



Model

Drum diameter

(mm)

Drum volume (L) Loading capacity (kg)

Max speed

(r/min)

Max separation factor

Motor power

(kw)

PPCC-53 600 41 53 2400 1931 18.5
PPCC-130 800 100 130 1500/1800 1007/1448 30
PPCC-230 1000 180 230 1400 1096 37
PPCC-270 1050 210 270 1400/1700 1150/1696 37
PPCC-430 1250 335 430 1200 1006 55
PPCC-585 1350 450 585 1200 1086 55
PPCC-900 1600 700 900 950 808 90

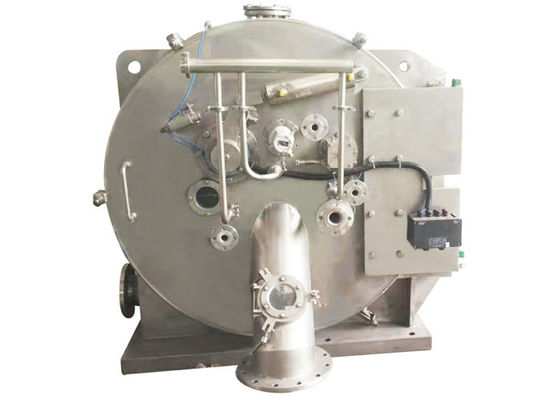

Continuous Scraper Horizontal Peeler Centrifuge Automatic Discharge For Strach Separation 0



Working principle
  Feeding nitrogen or other inertgas into the host machine, after reaching the pre-determined content, when predetermined target is met and drum speed is suitable for feeding, feeding valve will be open automatically and product level detection begins to work.

When layer thickness is thick enough to reach the product detection slab, feeding valve closes to stop feeding. Under the effect of centrifugal force, most of the liquid in suspension is thrown out through filter cloth(or filter net) and the holes on drum wall then flows into mother liquid tank through horizontal liquid outlet(initial filter). With product dehydration going on, centrifuge will automatically slow down to washing speed according to technical requirement for washing.

Washing valve opens automatically With washing liquid rising to a certain height, washing valve closes and centrifuge speeds up automatically for further dehydration(secondary filter).



After a moment of operation,product will be fully dried. Then discharging will be in process.Then discharging valve opens and discharging cylinder begins to work when centrifuge automatically slows down to predetermined speed. With scraper rising spirally and automatically, solid product is scraped down into the hopper equipped with spiral discharger: With constant motion of spiral discharger, product is pushed out and discharged through valve.
  Scraper rises closer to filter cloth with a certain distance till the bar on scraper device approaches proximity switch to stop
scraper rising then retreats quickly after a short stay(about 15s)then enters next cycle.



Main Characteristics

1.It is fully conformed to GMP, CGMP and meet the requirements of sterile raw medicine production.

2. With absolute isolation between power area and process area. It is suitable for occasion when customer requires high quality cleaning to avoid the contamination to product.

3. The out shell bucket can be opened, so the whole internal parts could be observed and easy for touch wiping and cleaning.

4. Perfect CIP system can be carried out to wash the internal parts of centrifuge to avoid cross contamination which are not easy to clean.

5. Unique pneumatic counter-pulse device is equipped, which can remove remnant filter cake as much as possible.

6. Totally-enclosed structure equipped with inert gas protection is adopted to be used in ex-proof I section.

7. The automatic residual cakes removing device is optional (have owned the national patent).







Continuous Scraper Horizontal Peeler Centrifuge Automatic Discharge For Strach Separation 1

Continuous Scraper Horizontal Peeler Centrifuge Automatic Discharge For Strach Separation 2

Our service

1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
