Dss Vertical Bottom Discharge Filtration Centrifuge In Chemical Industry

1 set
MOQ
USD30000-80000/SET FOB SHANGHAI
Price
Dss Vertical Bottom Discharge Filtration Centrifuge In Chemical Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Vertical Bottom Discharge Filtration Centrifuge
Key Selling Points: Competitive Price
Working Type: Constinuous
MOC: SS304/SS316/DSS Etc.
Discharge: Scraper Bottom Discharge
Application: Industrial/chemical
Certification: ISO/CE Etc.
Loading Capacity: 100-1200kgs
Highlight:

dss filtration centrifuge

,

vertical bottom discharge filtration centrifuge

,

chemical industry centrifugal filtration equipment

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO,CE
Model Number: PPSBDL
Payment & Shipping Terms
Packaging Details: Standard export package,
Delivery Time: 60-90 days after down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/month
Product Description

Vertical Bottom Discharge Filtration Centrifuge Used In Chemical Industry



Specification





Item/Model



PPSBDL100 PPSBDL210 PPSBDL400/520 PPSBDL534
Basket diameter(mm) 800 1000 1250 1350
Basket height(mm) 400 500 500/630 630
Basket Volume(L) 80 165 310/400 445
Loading capacity(Kg) 100 210 400/520 534
Max.speed(r/min) 1500 1200 1000/1200 1200
Max.separating factor 1007 805 698/1006 1086
Motor power(Kw) 7.5 15 18.5/22 30
Size(including shock absorber) (mm) 1700*1400*2064 2100*1600*2200 2300*1800*2500 2600*2000*2900



Main Application

Suitable for the filtration of suspension with particle type solid content, also suitable for the dewatering of fiber subject, especially the filtration of high viscosity, fine granules, poisonous, and inflammable materials.



Product introduction

Cancelled traditional suspension support leg, and adopts flat plate balance weight and high viscosity damp vibration isolator without base install. Inverter controls the motor, it connects directly with the bowl through the motor spindle, which makes the bowl rotating at high speed around itself axis to form centrifugal force field, then the centrifugal force pushes the material equispaced on the bowl to separate the solid and the liquid. The liquid penetrates the solid and the filter screen gap, then it is tossed to the main case space, and discharged from the bottom liquid outlet, the solid material will hold back in the filter bag on the bowl. After machine shut down, the solid material will be discharged by special lifting device.

Cancelled traditional suspension support leg, and adopts flat plate balance weight and high viscosity damp vibration isolator without base install. Inverter controls the motor, it connects directly with the bowl through the motor spindle, which makes the bowl rotating at high speed around itself axis to form centrifugal force field, then the centrifugal force pushes the material equispaced on the bowl to separate the solid and the liquid. The liquid penetrates the solid and the filter screen gap, then it is tossed to the main case space, and discharged from the bottom liquid outlet, the solid material will hold back in the filter bag on the bowl. After machine shut down, the solid material will be discharged by special lifting device.



Main Features

1. Inverter control, stable starting, the separating factor can be regulated.
2.Fast type lifting and discharging with convenient operation reduce labor work, increase working efficiency.
3.Closed structure, sealing parts are made of silicon rubber or fluororubber, achieve the purpose of closed explosion proof, suitable for the poisonous, inflammable, and explosive places.
4. Equipped with cleaning spray system, can achieve CIP for centrifuge, clean the external shell and internal wall, external and internal surface of bowl, surface of liquid collector and any other places which difficult to be cleaned, make the environment condition to meet GMP requirement.
5.Universal property is great, widely used, the crystal is difficult to be damaged.



Working Principle:

Raw material through feeding tube feeding into high speed rotating basket, under centrifugal force, liquid phase will drain out through liquid exit, solid phase will be filter on the surface of filter bag, formed as filter cake, stop feeding raw material, cleaning filter cake, after cleaning water drain out, rotating scraper will scrap filter cake and discharge to bottom. There have slight residue cake on the surface of filter bag which scraper could not scrap out, pneumatic bag-shaking device will reciprocating motion up and down, shaking residue cake out and discharge, most of residue cake could be clear out totally.

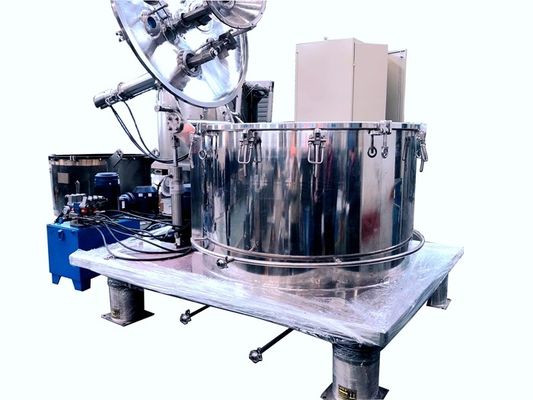

Dss Vertical Bottom Discharge Filtration Centrifuge In Chemical Industry 0

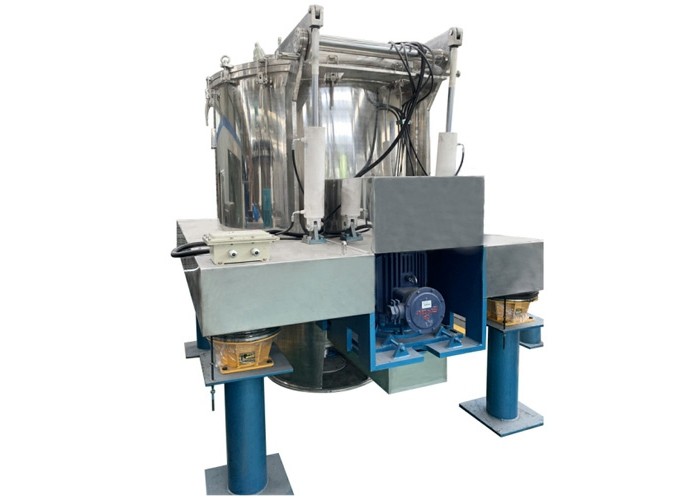

Dss Vertical Bottom Discharge Filtration Centrifuge In Chemical Industry 1



Processing equipment

Dss Vertical Bottom Discharge Filtration Centrifuge In Chemical Industry 2

Company introduction

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system, powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project, plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi-effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.
