SUS304 Pillow Plate Heat Exchanger Single Double Embossed Profile ASMI

SUS304 Pillow Plate Heat Exchanger Single Double Embossed Profile ASMI

  • High Light

    Embossed Profile Pillow Plate Heat Exchanger

    ,

    SUS304 Pillow Plate Heat Exchanger

    ,

    ASMI Dimpled Plate Heat Exchanger

  • Product Name
    Pillow Plate Heat Exchanger
  • Brand
    Hanpu
  • Material
    Stainless Steel Or Customized
  • Feature
    High Heat Transfer Coefficient
  • Usage
    Evaporative Air Cooling System
  • Plate Material
    Stainless Steel Or Customized
  • Application
    Heater Parts
  • Certification
    ISO,CE
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO
  • Model Number
    Customized
  • Minimum Order Quantity
    100m2(except for the sample)
  • Price
    USD100/m2-USD300/m2
  • Packaging Details
    Standard export package, polywood, fumigated wood, filmed
  • Delivery Time
    30 days after down payment
  • Payment Terms
    TT,.LC, Western Union
  • Supply Ability
    30000m2 per month

SUS304 Pillow Plate Heat Exchanger Single Double Embossed Profile ASMI

Pillow Plate Hot Selling High Power Single Double Embossed Profile Water Pressure Inflatable Specific Cooling Heating
Description
Pillow plate heat exchangers are a class of fully welded heat exchanger design, which exhibit a wavy, “pillow-shaped” surface formed by an inflation process. Compared to more conventional equipment, such as shell and tube and plate and frame heat exchangers, pillow plates are a quite young technology. Due to their geometric flexibility, they are used as well as “plate-type” heat exchangers and as jackets for cooling or heating of vessels. Pillow plate equipment is currently experiencing increased attention and implementation in process industry.

Construction
Pillow plates are manufactured by an inflation process, where two thin metal sheets are spot-welded to each other over the entire surface by laser or resistance welding. The sides of the plates are sealed by seam welding, other than the connecting ports. Finally, the gap between the thin metal sheets is pressurized by a hydraulic fluid causing a plastic forming of the plates, which eventually leads to their characteristic wavy surface.

In principle, there are two different types of pillow plates: single-embossed and double-embossed. The former commonly form the double walls of jacketed vessels, while the latter are assembled to a stack (bank) to manufacture pillow plate heat exchangers. Single-embossed pillow plates are formed when the base plate is significantly thicker than the top plate. The thinner top plate deforms, while the base plate remains plane.

Furthermore, pillow plates are commonly equipped with “baffle” seam weldings, which offer a targeted flow guidance in the pillow plate channels in cases, where flow distribution or fluid velocity might be an issue. A method for obtaining flow guidance by baffles in the channels between adjacent pillow plates in pillow plate heat exchangers, has recently been proposed in.

Due to their construction, pillow plates are hermetically sealed, they have a high structural stability and their manufacturing is mostly automated and highly flexible. Pillow plates can be operated at pressures > 100 MPa and temperatures of up to 800 °C.

Technical Parameters


Product NamePillow plate heat exchanger
MaterialStainless Steel
ColorNickel White
StandardDIN GB ISO JIS BA ANSI ASMI
GradeSUS201,SUS304,SUS316,DSS2205
Overview double pillow embossed plate material ratios

Pillow plate 0.8mm+0.8mm pillow plate 1.0mm+1.0mm
Pillow plate1.2mm+1.2mm
Pillow plate1.5mm+1.5mm
Pillow plate2.0mm+2.0mm

Overview single pillow embossed plate material ratiosPillow plate 0.8 mm + 2.0 mm base plate
pillow plate 1.0 mm + 2.5 mm base plate
pillow plate 1.2 mm + 4.0 tot 15 mm base plate
pillow plate 1.5 mm + 4.0 tot 15 mm base plate
pillow plate 2.0 mm + 5.0 tot 15 mm base plate


Applications
The application of pillow plates is very extensive, due to their favorable properties such as high geometric flexibility and good adaptivity to almost every process. Their implementation depends on their underlying construction, i.e. pillow plate banks or pillow plate jacketed tanks. The relatively flat external surface is easy to clean and suitable for high fouling or sanitary applications, but the internal surface has fine seams around each spot weld and is not easy to clean, therefore the internal surface is only suitable for non-fouling fluids like water, steam or refrigerants.

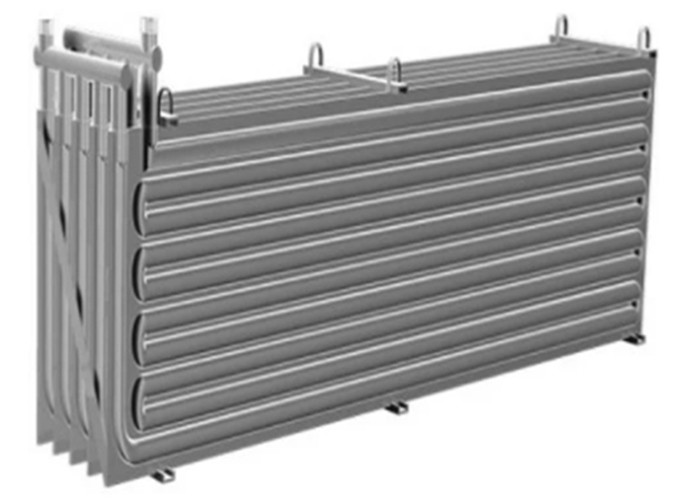

1. Pillow plate banks (heat exchangers)
Pillow plate banks are typically used in applications involving liquid-liquid, gas-liquid, high viscosity or dirty media, low pressure loss requirements, condensation (e.g. top condensers), falling film evaporation (e.g. paper & pulp industry), reboilers, water chilling, drying of solids, flake ice generation (food industry) and more. They are also commonly used as immersion chillers (e.g. in electroplating), where the banks are immersed directly into the tank. Banks can be constructed to allow the individual plates to be separated from the stack, allowing easy cleaning or maintenance.

2. Pillow plate jacketed tanks
The most extensive application of pillow plates to date is with jacketed vessels, because of their flexibility, full surface area coverage for heat transfer, low fluid hold-up, favorable manufacturing costs & time, and easy cleaning, especially in sterile applications. The tanks can be equipped with multiple jackets over its surface, including also the tank bottom, e.g. conical or dished, and can include additional cylindrical shells inside the tank. Typical areas of implementation of pillow plate jacketed tanks are in food and beverage industry and in chemical and pharmaceutical industry. These jackets are also referred to as "dimple jackets".

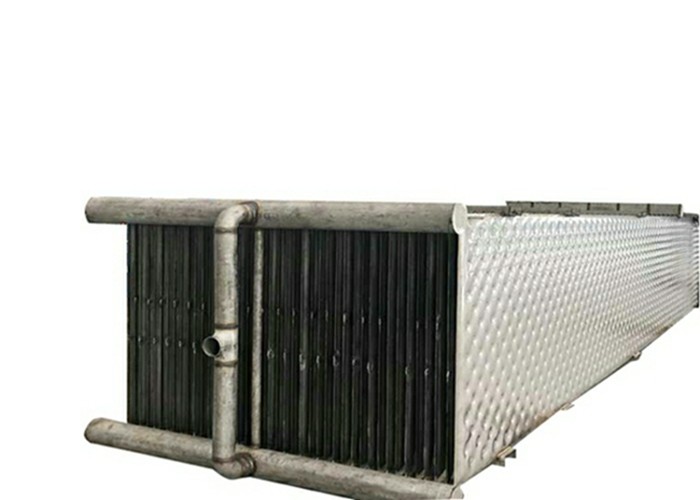

SUS304 Pillow Plate Heat Exchanger Single Double Embossed Profile ASMI 0

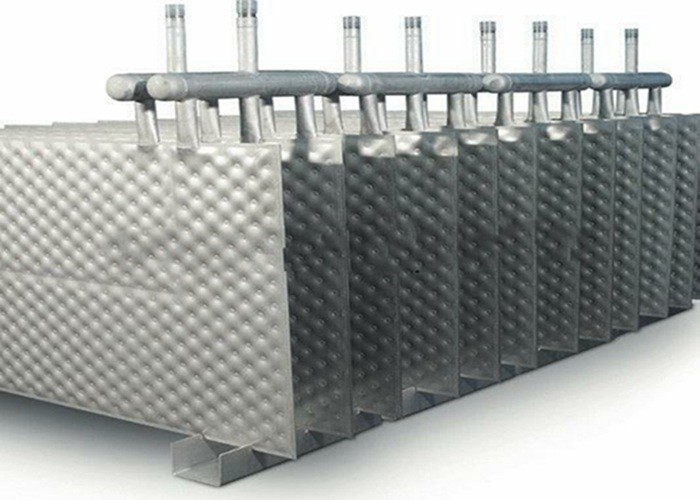

SUS304 Pillow Plate Heat Exchanger Single Double Embossed Profile ASMI 1




FAQ
1. Do you have OEM service? Do you supply the parts? Yes, we do, as long as you provide us your drawing and detailed requirements.
2. How can we easily find out the most fit centrifuges? We have experienced engineer team to help you make the model selection, as long as you provide us the detailed processing material characteristics.

3. Will you dispatch technicians for installation and commissioning? Yes, we can, we do lots of service, please refer to our after sales part.

4. What is your advantage compared with your competitors? Quality and experience. We are the top centrifuge supplier in China, our designs and structures are similar to world leader Alfa Laval, Westfaliar, Flottweg etc.

5. How do you protect the quality? My factory is a state owned enterprise with more than 100 years experience, strict operation policy is performed, advanced processing machines guarantee the precision of all components, workers with operation license, parts get multiprocessing, transmission&electrical parts are of international famous brand. Series of test and inspection are done in the whole producing stage.

6. Can we visit your end user or contact them? Yes, users are in domestic and abroad, we can provide you the name list. You can go there or contact to get more info.
