The machine is mainly used for the separation of the suspension containing fine/ medium particles, and the solid particles of granular, crystal or fiber, especially for the separation of material whose viscosity is high, with fine fineness, it's poisonous or inflammable. It is widely used in the industries of chemical, pharmaceutical, food, light industry and environment protection, etc.
Item | HR400-N | HR500-N | HR630-N | HR800-N |
---|---|---|---|---|
Inner/Outside basket diameter(mm) | 337/400 | 410/500 | 560/630 | 720/800 |
Length of filtering(mm) (Inner/Outside basket) | 160/160 | 180/180 | 240/240 | 300/300 |
Inner/Outside basket Speed(r/min) | 1500-2200 | 1200-2000 | 1000-1800 | 800-1600 |
Separating factor | 503-1083 | 402-1118 | 352-1140 | 286-1145 |
Length stroke(mm) | 40 | 50 | 50 | 50 |
Frequency of stroke(time/min) | 30-80 | 50-70 | 30-80 | 30-80 |
Main motor power(Kw) | 11 | 30-45 | 37-55 | 55-75 |
Oil pump motor power(Kw) | 5.5 | 22 | 30 | 45 |
Production capacity(t/h) | 1-8 | 5-15 | 8-25 | 15-40 |
Overall dimension L*W*H(mm) | 2460*1286*1030 | 3590*1430*1642 | 3500*1760*1265 | 3700*1800*1450 |

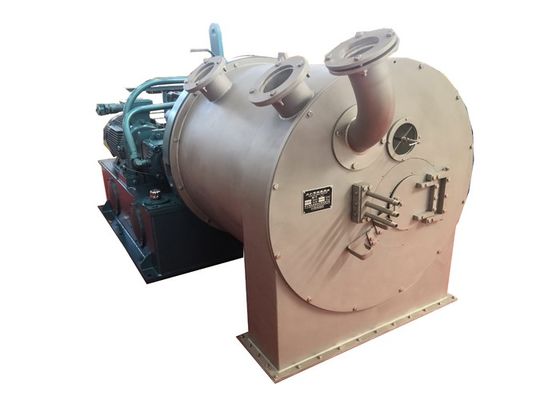

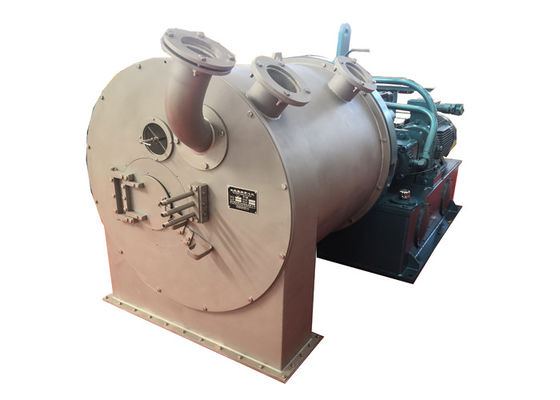

Popular Salt Refining Plant Centrifuge for the horizontal two-stage pusher, continuous operation of the filter centrifuge. At full speed under all operating processes, such as feeding, separating, washing, drying and unloading. Separation of concentrated suspensions containing particles in crystalline or short fibrous (Crystalline particle size of 0.1-10mm short fibers less than 30mm), widely used in chemical, fertilizer, salt, pharmaceutical, food, light industry, etc. industrial sectors.The centrifuges with automatic continuous operation, continuous slagging, high production capacity, and not easy to break the grain residue can be washed and other traditional advantages, but also has high residues production, high solids recovery, low residues of moisture content, lowenergy consumption. And parts of aircraft contact with the material of stainless steel, good corrosion resistance.
Examples of application materials: sodium chloride, sodium sulfate, sodium dichromate, ammonium sulfate, boric acid, cellulose acetate, cellulose nitrate, urea, of PVC, potassium chloride, potassium sulfate, potassium carbonate, phosphate, etc..
