HR Piston Horizontal Pusher Centrifuge 2 Stage For Salt Processing Plant

1 set
MOQ
USD25000-90000/SET FOB SHANGHAI
Price
HR Piston Horizontal Pusher Centrifuge 2 Stage For Salt Processing Plant
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Pusher Centrifuge
Control System: PLC System,
Operation: Automatic Continuous Operation
Warrenty: 1 Year
Working Condition: Granule Size Greater Than 0.15mm
Application: Salts And Granular Crystals
Centrifugal Type: Centrifugal Filtration
Motor Defends Degree: IP54/F1
High Light:

HR piston type centrifuge

,

Horizontal Pusher Centrifuge 2 Stage

,

Salt Processing Plant centrifuge

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: ISO,CE
Model Number: HR
Payment & Shipping Terms
Packaging Details: Standard export package,
Delivery Time: 60-90 days after down payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/month
Product Description

Industrial Horizontal 2-stage Pusher Centrifuge for Salt Processing Plant



Introduction

HR series piston type centrifuge is a kind of filter centrifuge with continuous feeding and intermittent discharging after separation.It has the following remarkable characteristics :

1. Continuous operation, large production capacity, stable operation.

2. High separation coefficient, in the first and second stage of the drum can make the material fully dehydrated, cake water content is very low.

3. When the purity of solid products is required, effective washing can be carried out. Washing liquid and mother liquid can be discharged separately.

4. Low power consumption and uniform



Technology



Item



HR400-N HR500-N
Inner/Outside basket diameter(mm) 337/400 410/500

Length of filtering(mm)

(Inner/Outside basket)

160/160 180/180
Inner/Outside basket Speed(r/min) 1500-2200 1200-2000
Separating factor 503-1083 402-1118
Length stroke(mm) 40 50
Frequency of stroke(time/min) 30-80 50-70
Main motor power(Kw) 11 30-45
Oil pump motor power(Kw) 5.5 22
Production capacity(t/h) 1-8 5-15
Overall dimension L*W*H(mm) 2460*1286*1030 3590*1430*1642



Use and characteristics

Popular Salt Refining Plant Centrifuge for the horizontal two-stage pusher, continuous operation of the filter centrifuge. At full speed under all operating processes, such as feeding, separating, washing, drying and unloading. Separation of concentrated suspensions containing particles in crystalline or short fibrous (Crystalline particle size of 0.1-10mm short fibers less than 30mm), widely used in chemical, fertilizer, salt, pharmaceutical, food, light industry, etc. industrial sectors.The centrifuges with automatic continuous operation, continuous slagging, high production capacity, and not easy to break the grain residue can be washed and other traditional advantages, but also has high residues production, high solids recovery, low residues of moisture content, lowenergy consumption. And parts of aircraft contact with the material of stainless steel, good corrosion resistance.
Examples of application materials: sodium chloride, sodium sulfate, sodium dichromate, ammonium sulfate, boric acid, cellulose acetate, cellulose nitrate, urea, of PVC, potassium chloride, potassium sulfate, potassium carbonate, phosphate, etc..

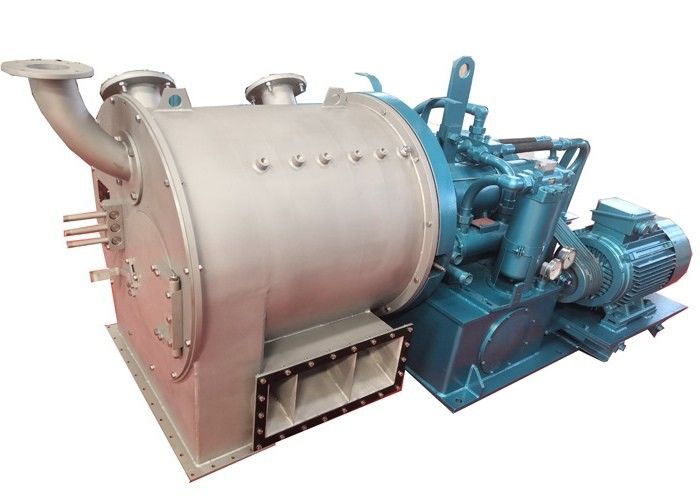

HR Piston Horizontal Pusher Centrifuge 2 Stage For Salt Processing Plant 0



HR Piston Horizontal Pusher Centrifuge 2 Stage For Salt Processing Plant 1



Working principle

Host at full speed, the suspension through the feed tube into the allocated disk mounted on the outer drum under the influence of centrifugal force, suspension liquid uniform distribution of the drum plate online, the liquid phase by the board net net gap and drumfilter holes and escape, while the solid phase was retention ring residues layer formed in the plate online. Reciprocating motion of the inner drum, the residues along the drum axis goes forward, unloaded outside the drum set before the trough.
