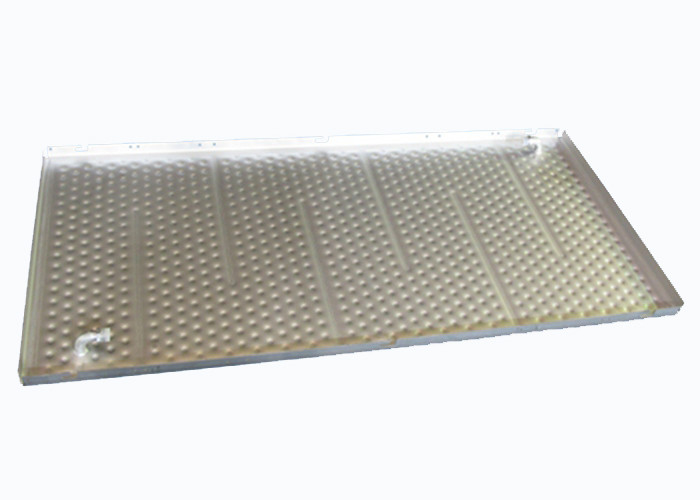

Customized Stainless Steel 304 Pillow Plate For Milk Cooling Tank
Introduction

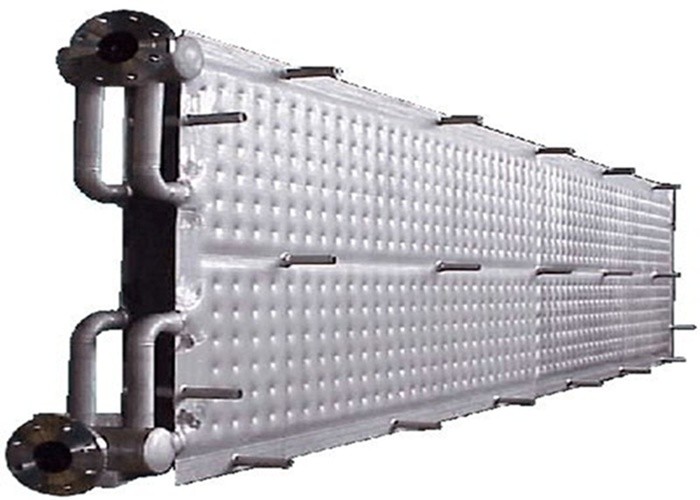

1. Double embossed pillow plate:
Pillow plate with a double bulge on each side is created when two equally thick plates to be welded together, during the inflation of the pillow plate, both plates forming the same. A pillow plate with both sides equaly inflated pillows is caled "doulbe embossed pillow plate"

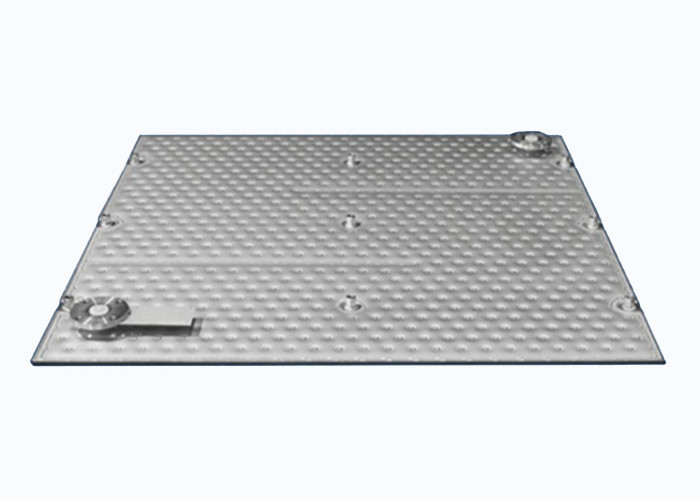

2. Single embossed pillow plate:
Pillow plate with a pillow at one side is made when a thin plate is laser welded on a thick plate and during the inflation of the pillow the thick plate does not deform, so a pillow plate where the thin plate has been deformed with a pillow and the thick plate is still flat or in the rolled radius is caled a single embossed pillowplate

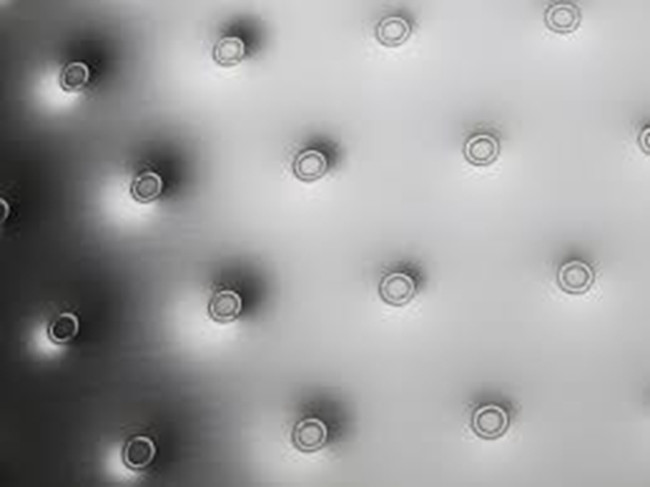

Milk cooling jacket tank made of sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge,then round to circle and welding,injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow space with uneven surface.
Specification
| Product Name | Pillow Plate For Milk Cooling Tank |
| Welding | Laser |
| Material | Stainless Steel |
| Color | Nickel White |
| Grade | Food grade |
| Brand | Hanpu |
| Tank height | 5.6m |
| Thickness | 4mm base plate, 1mm embossed plate |
| Size of plate | 12*2m |
Feature
1. Unique three-dimensional surface runner:
2. High heat transfer coefficient
3. It is not easy to scale.
4. Not easily blocked
5. Compact structure
6. High temperature and high pressure resistance
7. Fully welded structure
8. Floating Head Design
9. Easy to clean
10. Lower flow resistance
Processing equipment
FAQ
1. Do you have OEM service? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a company mainly produce pillow plate and its related products,The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.
