PPCS Series Horizontal Peeler Centrifuge Pharmaceutical Spiral Scraper With GMP

PPCS Series Horizontal Peeler Centrifuge Pharmaceutical Spiral Scraper With GMP

  • High Light

    Pharmaceutical Peeler Centrifuge

    ,

    PPCS Series Horizontal Peeler Centrifuge

    ,

    Spiral scraper Peeler Centrifuge

  • Name
    Horizontal Peeler Centrifuge
  • MOC
    SS304,316L As Option
  • Operation
    Continuous Automatic
  • Discharge Type
    Spiral Scraper Discharge
  • Certification
    ISO,CE
  • Grade
    GMP
  • Equipped
    PLC System, Inverter
  • Collocation
    Hydraulic System,Level Detector
  • Application
    Starch, Calcium Carbonate, And Others
  • Place of Origin
    China
  • Brand Name
    Hanpu
  • Certification
    ISO,CE
  • Model Number
    PPCS
  • Minimum Order Quantity
    1 set
  • Price
    USD60000-100000/set FOB Shanghai
  • Packaging Details
    Standard export package,
  • Delivery Time
    60-75 days after down payment
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    300 sets/month

PPCS Series Horizontal Peeler Centrifuge Pharmaceutical Spiral Scraper With GMP

                                 Pharmaceutical and Food Industrial PPCS Series Horizontal Peeler Centrifuge with GMP​

Brief production
The machine is solid-liquid separation equipment which adopts continuous operation and intermittent discharging. It is controlled by PLC.It regulates speed by frequency convertor, braking system adopts dynamic braking and regenerative braking. Through such procedures as product level detection, speed, inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulative work(including feeding, dehydration, washing, discharging and etc.) Also manual operation mode is available which can be changed over from full-automation mode by customer's will.

Specification

Item/ModelPPCS-26PPCS-140PPCS-250PPCS-260PPCS-500PPCS-1100PPCS-1800PPCS-2400

Basket
diameter(mm)

450800100010501250160018002000
Basket Height(mm)300450500500630100012501400
Basket volume(L)2111020021033587913901923
Loading Capacity(kg)26140250260500110018002400


Working principle
▷ When predetermined target is met and drum speed is suitable for feeding, feeding valve will be open automatically and product level detection begins to work.
▷ When layer thickness is thick enough to reach the product detection slab, feeding valve closes to stop feeding.
▷ Under the effect of centrifugal force, most of the liquid in suspension is thrown out through filter cloth and then flows into mother liquid tank through horizontal liquid outlet.
▷ With product dehydration going on, centrifuge will automatically slow down to washing speed according to technical requirement for washing.
▷ Washing valve opens automatically. With washing liquid rising to a certain height, washing valve closes and centrifuge speeds up automatically for further dehydration(secondary filter).
▷ After operation, product will be fully dried. Then discharging valve opens and discharging cylinder begins to work when
centrifuge automatically slows down to predetermined speed.
▷ With scraper rising spirally and automatically,solid product is scraped down into the hopper equipped with spiral discharger:With constant motion of spiral discharger, product is pushed out and discharged through valve.
▷ Scraper rises closer to filter cloth with a certain distance till the bar on scraper device approaches proximity switch to stop scraper rising then retreats quickly after a short stay(about 15s)then enters next cycle.

Main characteristics
♦ It is fully conformed to GMP CGMP Norm and meet the requirements of asepsis raw medicine production.
♦ With absolute isolation between power area and process area.It is suitable for occasion when customer requires high quality cleaning to avoid the contamination to product.
♦ The out shell bucket can be opened, so the whole internal parts can be observed and easy for touch wiping and cleaning.
♦ Perfect CIP system can be carried out to wash the internal parts of centrifuge to avoid cross contamination which are not easy to clean.
♦ Unique pneumatic counter-pulse device is equipped, which can remove remnant filter cake as much as possible.
♦ Totally-enclosed structure equipped with inert gas protection is adopted to be used in ex-proof 1 section.
♦ The automatic residual cakes removing device is optional (have owned the national patent).

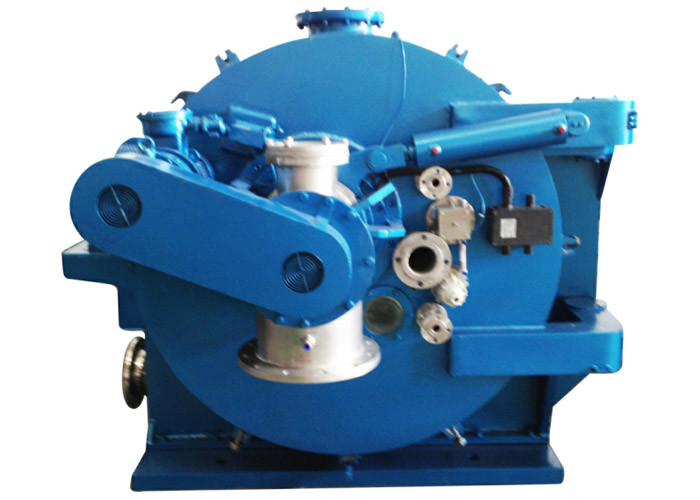

PPCS Series Horizontal Peeler Centrifuge Pharmaceutical Spiral Scraper With GMP 0

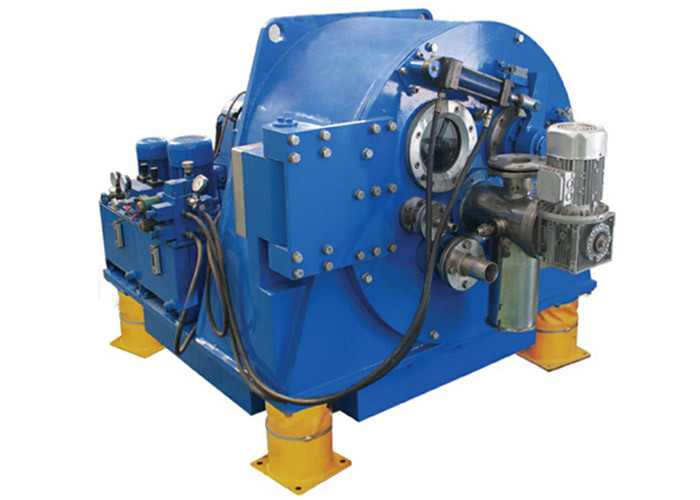

PPCS Series Horizontal Peeler Centrifuge Pharmaceutical Spiral Scraper With GMP 1


Processing equipment

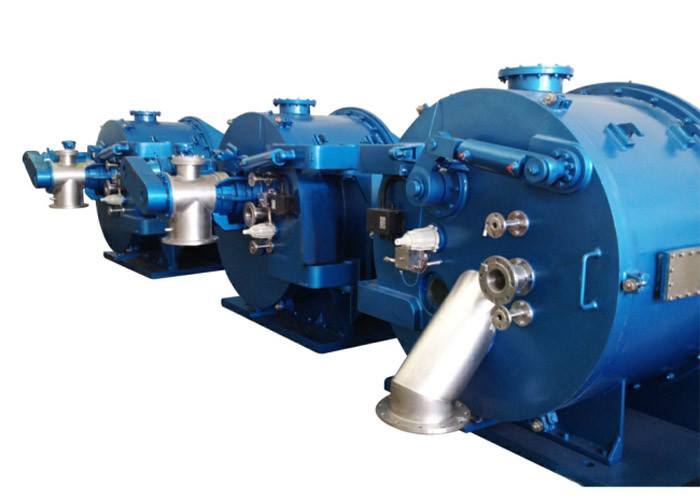

PPCS Series Horizontal Peeler Centrifuge Pharmaceutical Spiral Scraper With GMP 2




About us

Jiangsu Hanpu Mechanical Technology Co., Ltd. is a project engineering company jointly established by Jiangsu Saideli Pharmaceutical Machinery Co., Ltd., Jiangsu Zhongyi Environmental Technology Co., Ltd., FERREO A/S in Denmark, Shanghai Jiaotong University and Nanjing Kingreat Machinery Co., Ltd. Hanpu main projects include but are not limited to: MVR evaporation system,powder washing salt and vacuum salt production project, oil tank sludge cleaning project, landfill leachate treatment project,plant/animal oil processing production line, urban wastewater treatment project, various wastewater treatment projects, and CBD oil extraction production line. Technical support and transfer of API product technology package. The main products are centrifuge series, multi -effect and MVR evaporation and crystallization equipment, laser welding heat transfer board, lithium battery material mixing equipment, pressure vessel and titanium, zirconium, nickel, and other non-standard special equipment.


FAQ
1. How do you protect the quality?
As state owned enterprise with more than 100years history, we have strict operation policy,advanced processing machines to guarantee the precision, workers with operation license, related components are from world famous brand, Series of test and inspection are done in the whole producing stage.
2. What is your advantage compared with your competitors?
Quality and experience, we are top centrifuge supplier in China,our designs and structures are analogous to world leader brands.
3. Is your price competitive?
My price is not the lowest in China, but we promise, for the same quality and collocation, my price is the most favorable, for the same price, my quality is definitely superior to other brands.
4. Will you dispatch technicians for installation and commissioning?
Yes, we will upon required.
5. Do you have OEM service? Do you supply the parts?
Yes, we do, as long as you provide us your drawing and detailed requirements.
6. Do you have agents or service centre abroad?
We have some partnership in several countries as Indonesia, Brazil, USA.
7. How can we visit your factory?
If you come from aboard, air to shanghai or Nanjing airport, or if you arrive shanghai, you can take bullet train. - If you come from domestic city, air or train directly to Nanjing Nan or WUXI east, we will pick you up both from airport or railway station.
8. Can we visit your end user or contact them?
Yes, we will provide you the name list, and arrange the visit after their approval.
