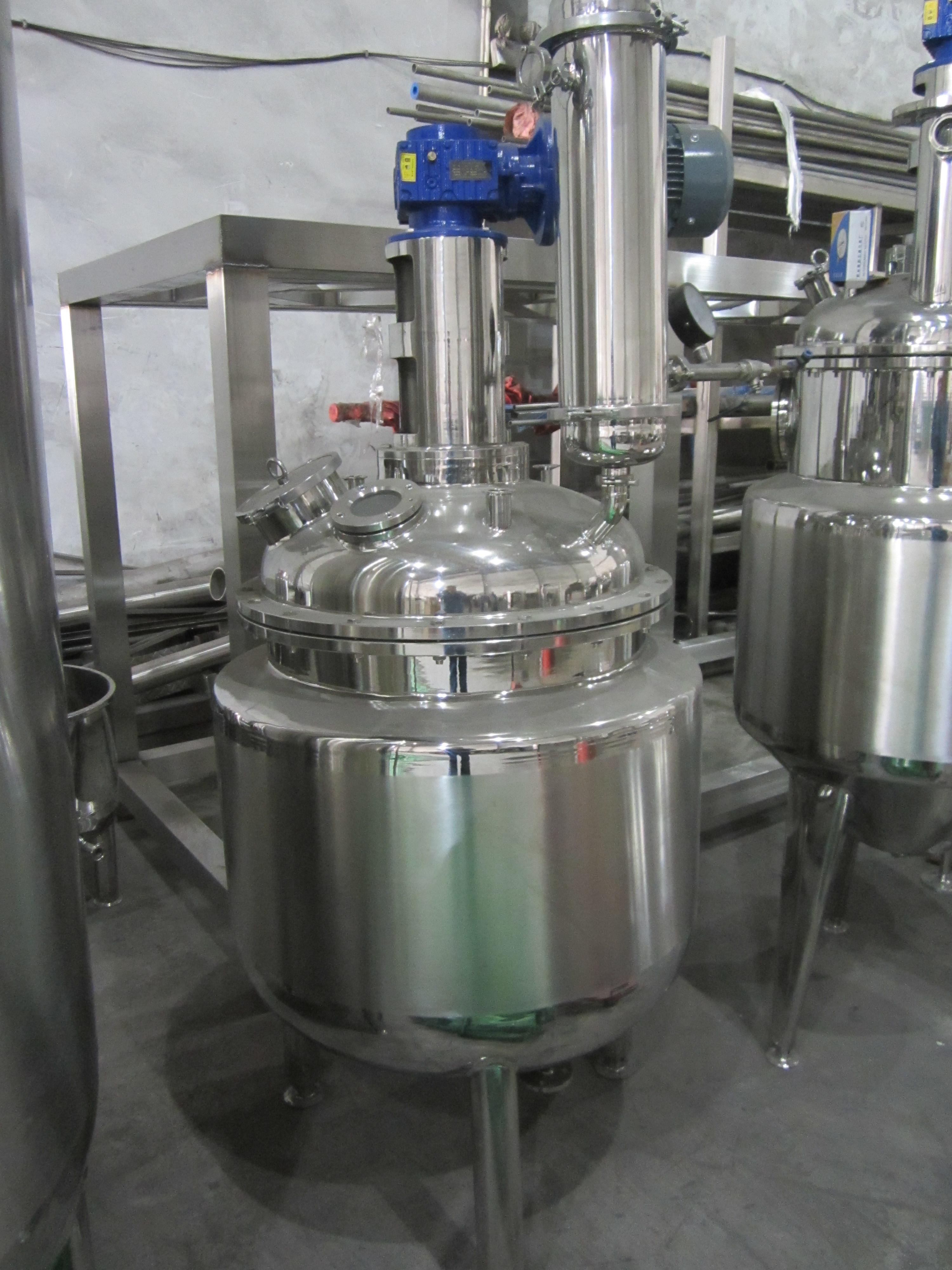

Staineless Steel 316L Laser Welded Pillow Plate Jacket Reactor With Stir
Introduction
Pillow Plate is in 2types: single and double embossed, welded with fiber laser, to produce a pillow plate product there is no big difference between single and double embossed pillowplates, the application area's from single and double embossed platen different.
1. Two sheets of steel are overlapped and welded by laser. Laser ring welding is used in the middle of the sheet and two laser welding seals are used around the edge.
2. Round to circle and welding.
3. Injecting high-pressure liquid between plates makes the plates expand and deform under pressure, forming a hollow space with uneven surface.
4. Feeding the medium in the jacket to cool or heat material inside the tank
Feature
1. Unique three-dimensional surface runner:
2. High heat transfer coefficient
3. It is not easy to scale.
4. Not easily blocked
5. Compact structure
6. High temperature and high pressure resistance
7. Fully welded structure
8. Floating Head Design
9. Easy to clean
10. Lower flow resistance
Specification
| Product Name | Jacket Pillow plate jacket tank, reactor |
| Welding | Laser |
| Material | Stainless Steel 316L |
| Color | Nickel White |
| Grade | Food grade |
| Brand | Hanpu |
| Tank height | 1.6M |
| Thickness | 4mm base plate, 1mm embossed plate |
| Volume | 1500L |
Service
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require
About us
Jiangsu Hanpu Mechanical Technology Co., Ltd. is a company mainly produce pillow plate and its related products,The company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc.
